✓ ADT-UDACT Digital Alarm Communicator/Transmitter - installs at standoff
✓ ADT-ACM-8R Annunciator Control Module (Relay) - installs at standoff
1. Install the two supplied standoffs in location (A) as indicated in Step 1 of the
following illustration
2. Position the module bottom in the slot located in the bottom of the BRKT-9600 as
indicated in Step 2 of the following illustration
3. Secure the module to the standoffs installed in the top of the BRKT-9600 with two
mounting screws as indicated in Step 3 of the following illustration
4. Refer to the appropriate module manual for detailed information on wiring the
module for power, communication, etc.
5. Install a maximum of two 12 Amp Hour batteries with the orientation illustrated in
Figure 2.13. Larger batteries require a separate UL listed battery box
BRKT-9600
(A)
(A)
Step 1

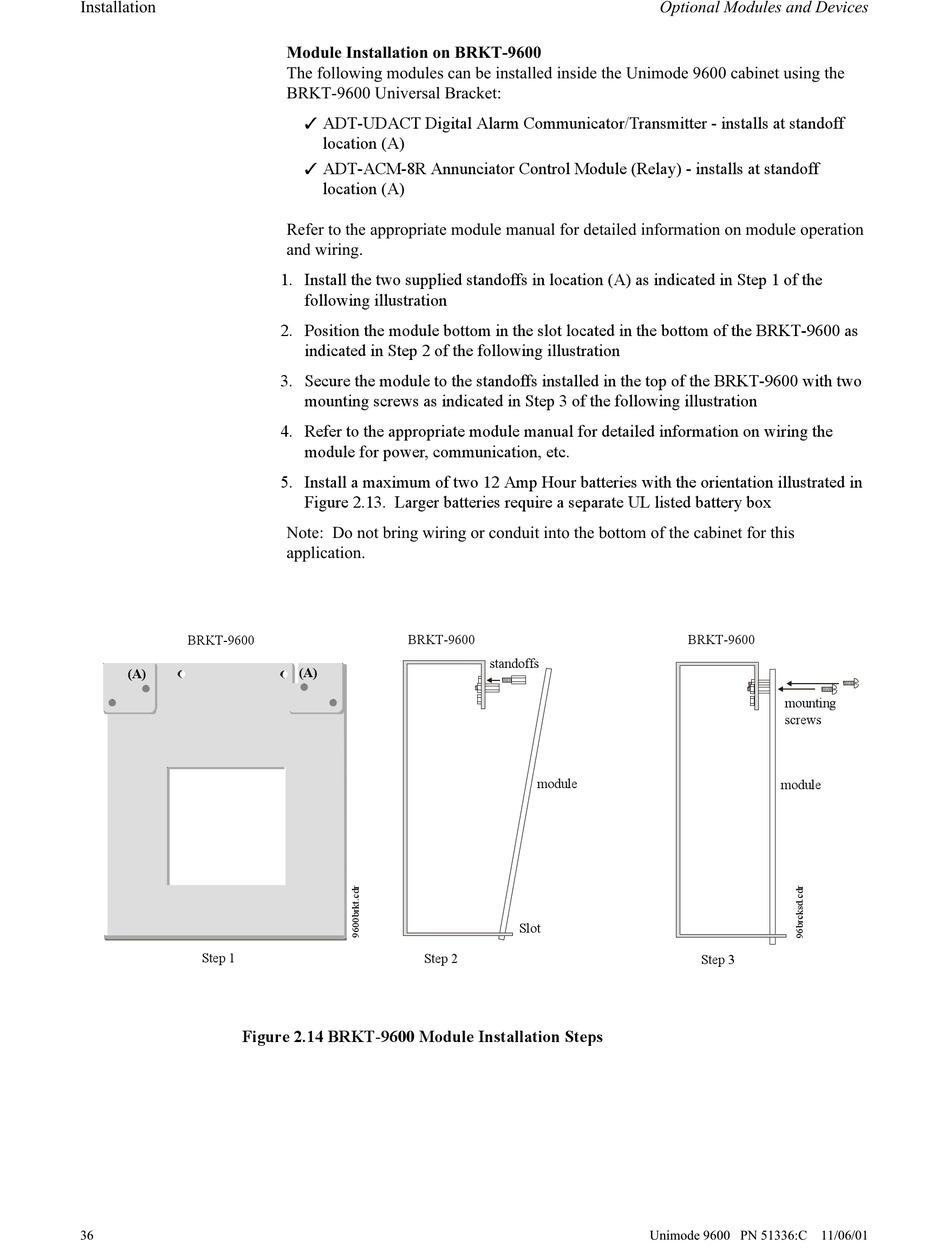

Figure 2.14 BRKT-9600 Module Installation Steps
location (A)
location (A)
BRKT-9600
standoffs
Step 2
BRKT-9600
module
Slot
mounting
screws
module
Step 3
