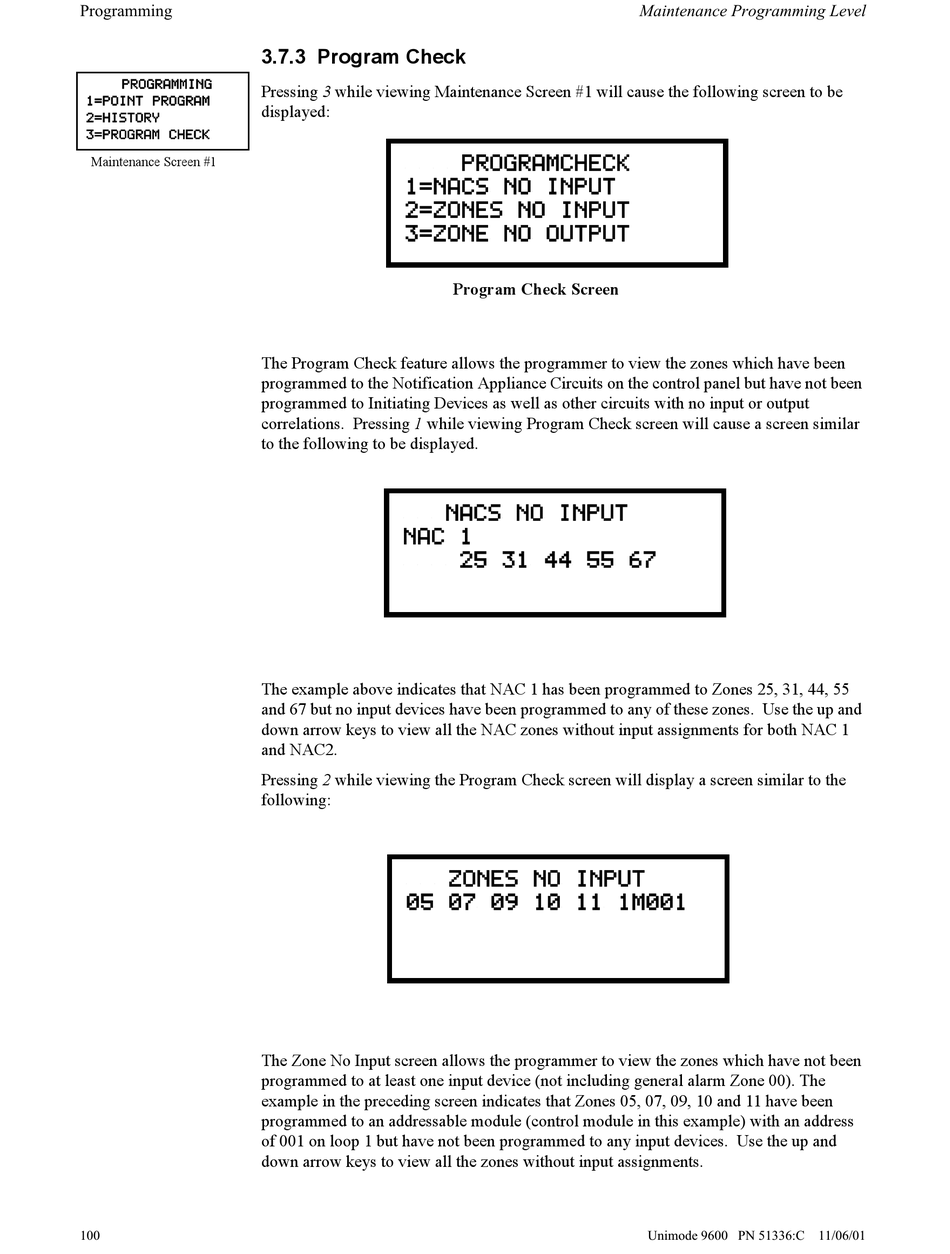

3.7.3 Program Check
PROGRAMMING
Pressing 3 while viewing Maintenance Screen #1 will cause the following screen to be
1=POINT PROGRAM
displayed:
2=HISTORY

3=PROGRAM CHECK

Maintenance Screen #1
The Program Check feature allows the programmer to view the zones which have been
programmed to the Notification Appliance Circuits on the control panel but have not been
programmed to Initiating Devices as well as other circuits with no input or output
correlations. Pressing 1 while viewing Program Check screen will cause a screen similar
to the following to be displayed.
The example above indicates that NAC 1 has been programmed to Zones 25, 31, 44, 55
and 67 but no input devices have been programmed to any of these zones. Use the up and
down arrow keys to view all the NAC zones without input assignments for both NAC 1
and NAC2.
Pressing 2 while viewing the Program Check screen will display a screen similar to the
following:
The Zone No Input screen allows the programmer to view the zones which have not been
programmed to at least one input device (not including general alarm Zone 00). The
example in the preceding screen indicates that Zones 05, 07, 09, 10 and 11 have been
programmed to an addressable module (control module in this example) with an address
of 001 on loop 1 but have not been programmed to any input devices. Use the up and
down arrow keys to view all the zones without input assignments.
@@@@PROGRAMCHECK
1=NACS@NO@INPUT
2=ZONES@NO@INPUT
3=ZONE@NO@OUTPUT
Program Check Screen
@@@NACS@NO@INPUT
NAC@1
@@@@25@31@44@55@67
@@@ZONES@NO@INPUT
05@07@09@10@11@1M001
