4: Trouble Reminder - ADT Unimode 9600 Installation And Operating Instruction

READ STATUS
1=TROUBLE REMINDER
2=TIMERS
3=NAC
Read Status Screen #2

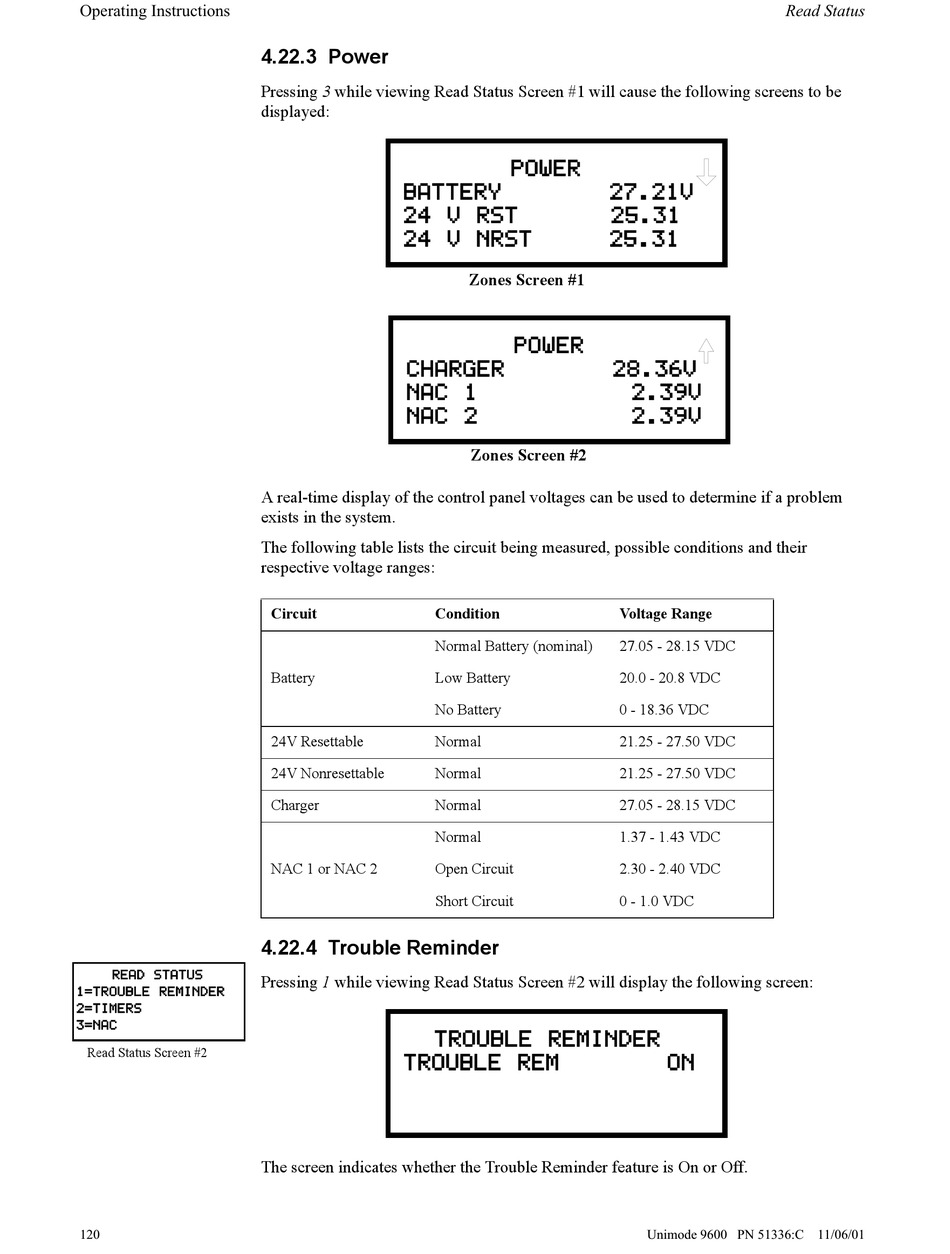

4.22.3 Power
Pressing 3 while viewing Read Status Screen #1 will cause the following screens to be
displayed:
BATTERY
24 V RST
24 V NRST
CHARGER
NAC 1
NAC 2
A real-time display of the control panel voltages can be used to determine if a problem
exists in the system.
The following table lists the circuit being measured, possible conditions and their
respective voltage ranges:
Circuit Condition
Normal Battery (nominal)
Battery Low Battery
No Battery
24V Resettable Normal
24V Nonresettable Normal
Charger Normal
Normal
NAC 1 or NAC 2 Open Circuit
Short Circuit
4.22.4 Trouble Reminder
Pressing 1 while viewing Read Status Screen #2 will display the following screen:
TROUBLE REMINDER
TROUBLE REM
The screen indicates whether the Trouble Reminder feature is On or Off.
POWER
27.21V
25.31
25.31
Zones Screen #1
POWER
28.36V
2.39V
2.39V
Zones Screen #2
Voltage Range
27.05 - 28.15 VDC
20.0 - 20.8 VDC
0 - 18.36 VDC
21.25 - 27.50 VDC
21.25 - 27.50 VDC
27.05 - 28.15 VDC
1.37 - 1.43 VDC
2.30 - 2.40 VDC
0 - 1.0 VDC
ON
