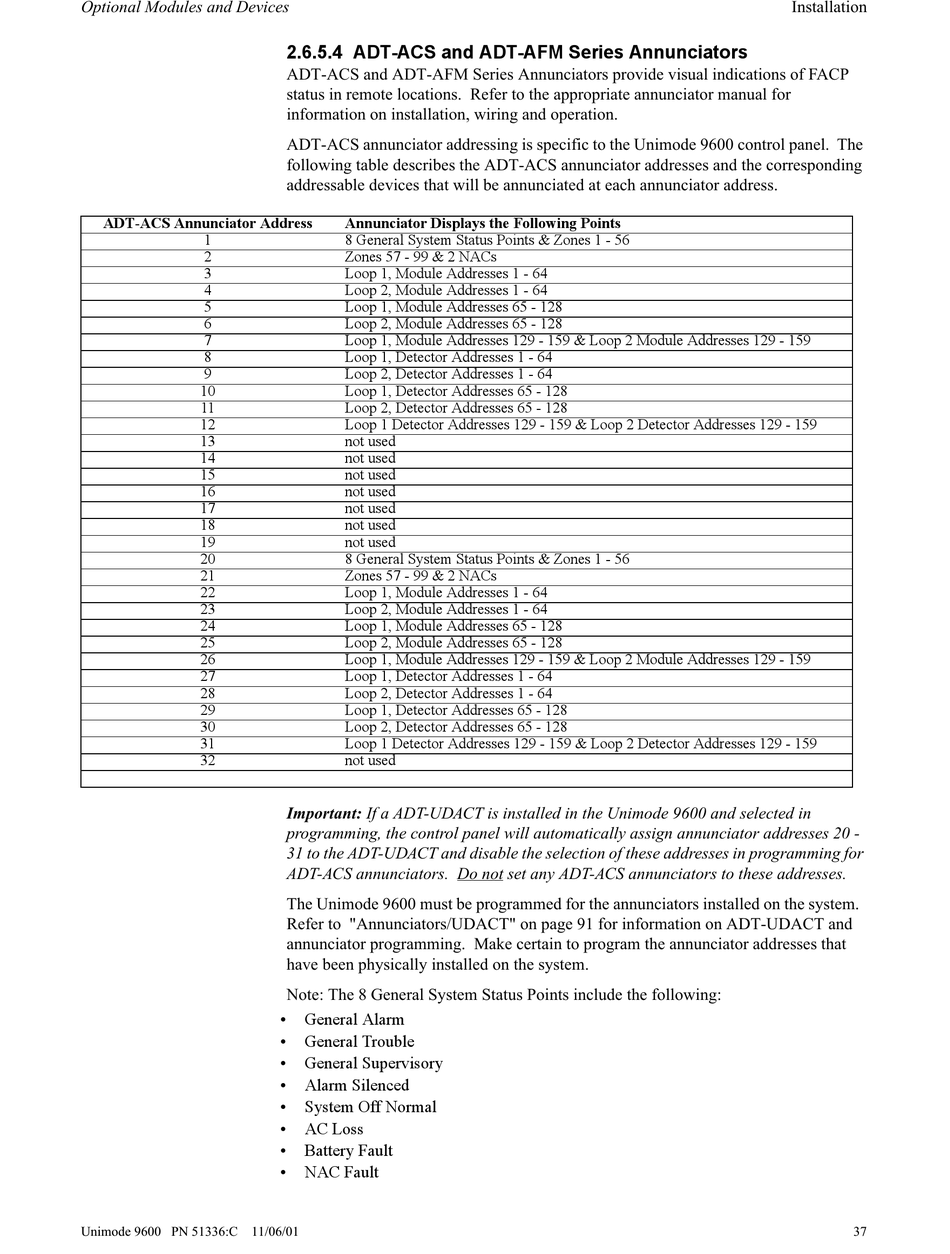

2.6.5.4 ADT-ACS and ADT-AFM Series Annunciators

Annunciator Displays the Following Points
8 General System Status Points & Zones 1 - 56
Zones 57 - 99 & 2 NACs
Loop 1, Module Addresses 1 - 64
Loop 2, Module Addresses 1 - 64
Loop 1, Module Addresses 65 - 128
Loop 2, Module Addresses 65 - 128
Loop 1, Module Addresses 129 - 159 & Loop 2 Module Addresses 129 - 159
Loop 1, Detector Addresses 1 - 64
Loop 2, Detector Addresses 1 - 64
Loop 1, Detector Addresses 65 - 128
Loop 2, Detector Addresses 65 - 128
Loop 1 Detector Addresses 129 - 159 & Loop 2 Detector Addresses 129 - 159
not used
not used
not used
not used
not used
not used
not used
8 General System Status Points & Zones 1 - 56
Zones 57 - 99 & 2 NACs
Loop 1, Module Addresses 1 - 64
Loop 2, Module Addresses 1 - 64
Loop 1, Module Addresses 65 - 128
Loop 2, Module Addresses 65 - 128
Loop 1, Module Addresses 129 - 159 & Loop 2 Module Addresses 129 - 159
Loop 1, Detector Addresses 1 - 64
Loop 2, Detector Addresses 1 - 64
Loop 1, Detector Addresses 65 - 128
Loop 2, Detector Addresses 65 - 128
Loop 1 Detector Addresses 129 - 159 & Loop 2 Detector Addresses 129 - 159
not used
,PSRUWDQW
General Alarm
General Trouble
General Supervisory
Alarm Silenced
System Off Normal
AC Loss
Battery Fault
NAC Fault
