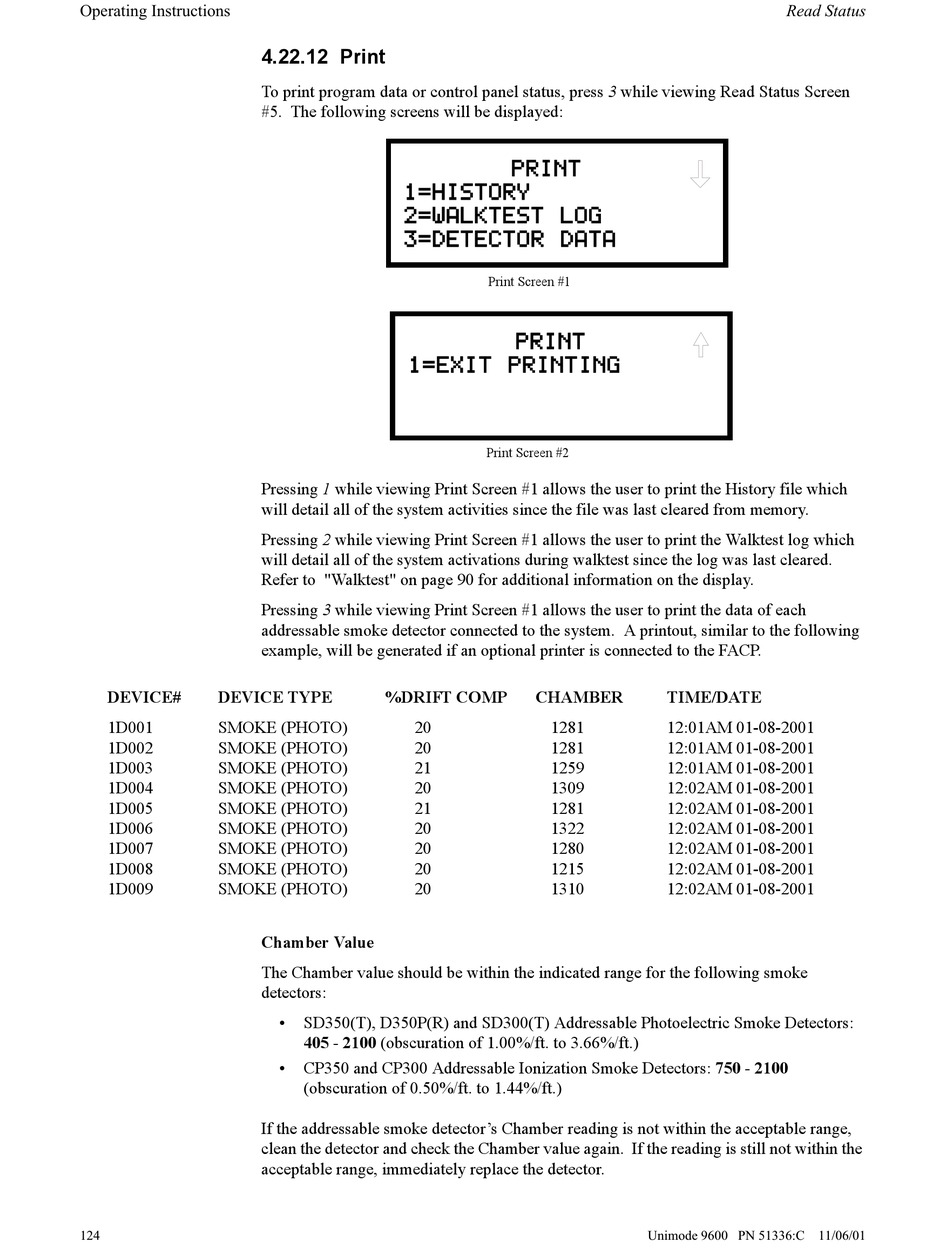

To print program data or control panel status, press 3 while viewing Read Status Screen
#5. The following screens will be displayed:
Pressing 1 while viewing Print Screen #1 allows the user to print the History file which
will detail all of the system activities since the file was last cleared from memory.
Pressing 2 while viewing Print Screen #1 allows the user to print the Walktest log which
will detail all of the system activations during walktest since the log was last cleared.
Refer to "Walktest" on page 90 for additional information on the display.
Pressing 3 while viewing Print Screen #1 allows the user to print the data of each
addressable smoke detector connected to the system. A printout, similar to the following
example, will be generated if an optional printer is connected to the FACP.
DEVICE# DEVICE TYPE
1D001 SMOKE (PHOTO)
1D002 SMOKE (PHOTO)
1D003 SMOKE (PHOTO)
1D004 SMOKE (PHOTO)
1D005 SMOKE (PHOTO)
1D006 SMOKE (PHOTO)
1D007 SMOKE (PHOTO)
1D008 SMOKE (PHOTO)
1D009 SMOKE (PHOTO)
Chamber Value
The Chamber value should be within the indicated range for the following smoke
detectors:
•
•
If the addressable smoke detector's Chamber reading is not within the acceptable range,
clean the detector and check the Chamber value again. If the reading is still not within the
acceptable range, immediately replace the detector.
1=HISTORY
2=WALKTEST LOG
3=DETECTOR DATA
1=EXIT PRINTING
%DRIFT COMP
20
20
21
20
21
20
20
20
20
SD350(T), D350P(R) and SD300(T) Addressable Photoelectric Smoke Detectors:
405 - 2100 (obscuration of 1.00%/ft. to 3.66%/ft.)
CP350 and CP300 Addressable Ionization Smoke Detectors: 750 - 2100
(obscuration of 0.50%/ft. to 1.44%/ft.)
PRINT
Print Screen #1
PRINT
Print Screen #2
CHAMBER
1281
1281
1259
1309
1281
1322
1280
1215
1310
TIME/DATE
12:01AM 01-08-2001
12:01AM 01-08-2001
12:01AM 01-08-2001
12:02AM 01-08-2001
12:02AM 01-08-2001
12:02AM 01-08-2001
12:02AM 01-08-2001
12:02AM 01-08-2001
12:02AM 01-08-2001
