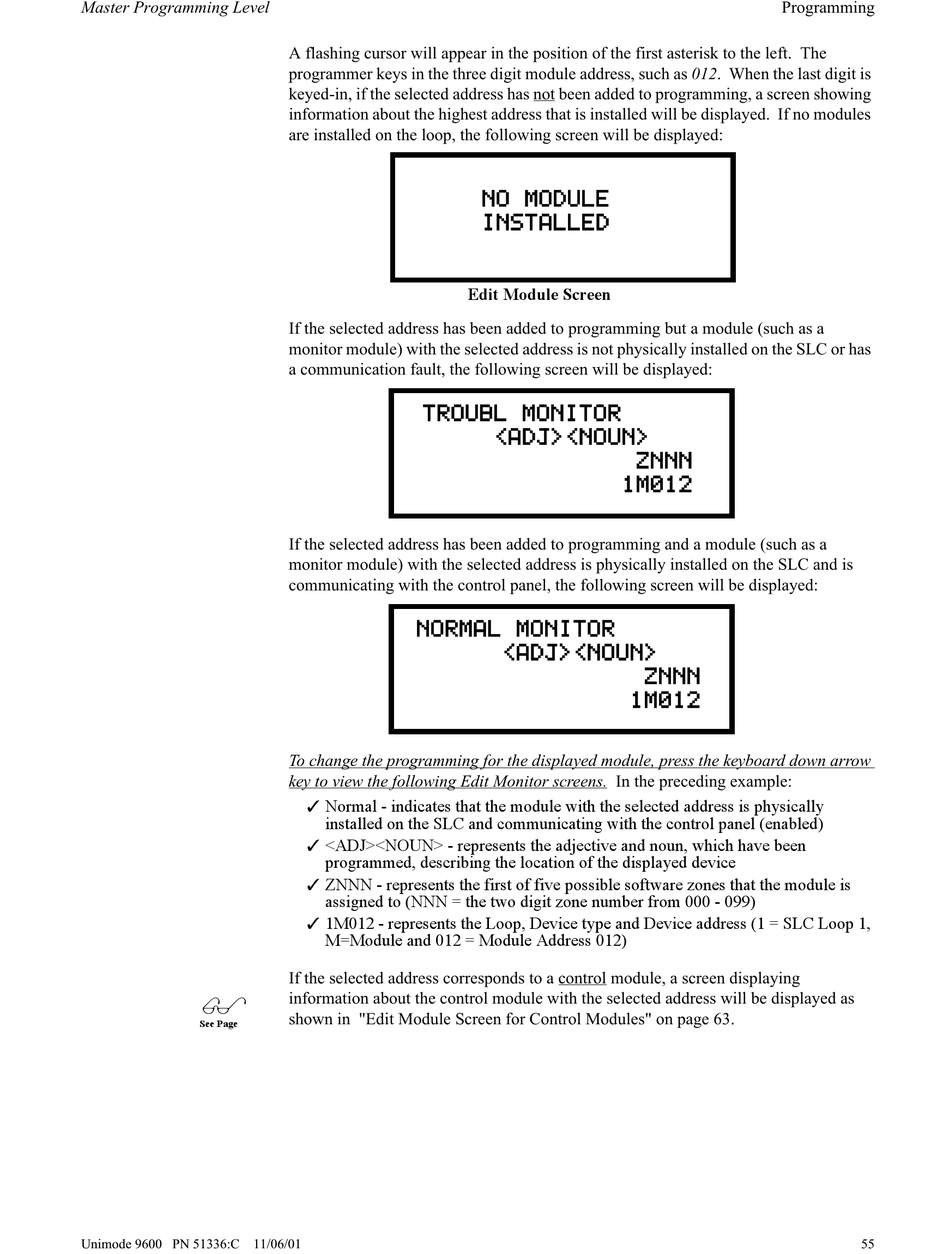

ADT Unimode 9600 Installation And Operating Instruction page 55

✓ Normal - indicates that the module with the selected address is physically
installed on the SLC and communicating with the control panel (enabled)
✓ <ADJ><NOUN> - represents the adjective and noun, which have been
programmed, describing the location of the displayed device
✓ ZNNN - represents the first of five possible software zones that the module is
assigned to (NNN = the two digit zone number from 000 - 099)
✓ 1M012 - represents the Loop, Device type and Device address (1 = SLC Loop 1,
M=Module and 012 = Module Address 012)
See Page
@@@@@NO@MODULE
@@@@@INSTALLED
Edit Module Screen
@TROUBL@MONITOR
@@@@@@<ADJ><NOUN>
@@@@@@@@@@@@@@@@ZNNN
@@@@@@@@@@@@@@@1M012
@NORMAL@MONITOR
@@@@@@@<ADJ><NOUN>
@@@@@@@@@@@@@@@@@ZNNN
@@@@@@@@@@@@@@@@1M012
