SECTION 3

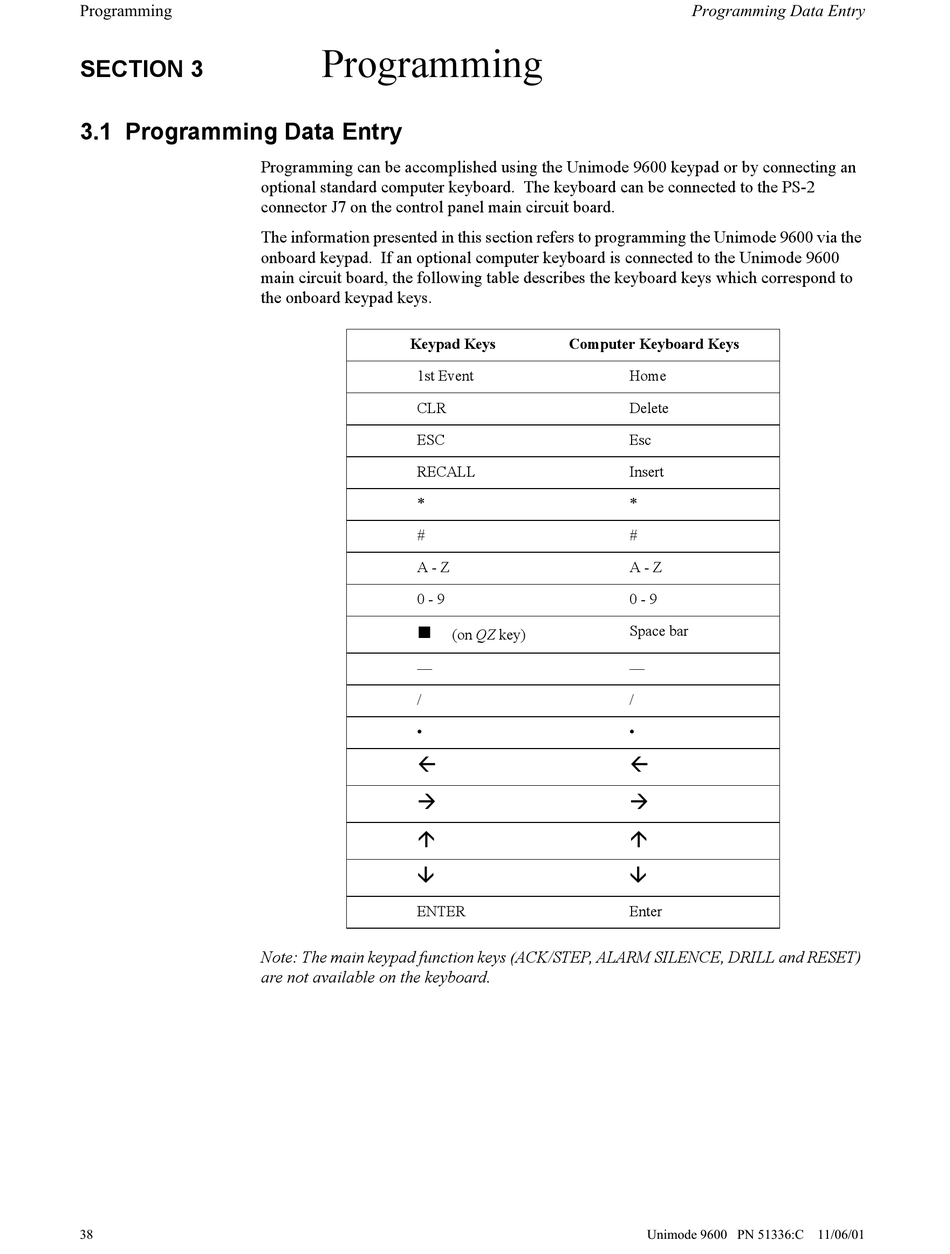

3.1 Programming Data Entry
Programming
Programming can be accomplished using the Unimode 9600 keypad or by connecting an
optional standard computer keyboard. The keyboard can be connected to the PS-2
connector J7 on the control panel main circuit board.
The information presented in this section refers to programming the Unimode 9600 via the
onboard keypad. If an optional computer keyboard is connected to the Unimode 9600
main circuit board, the following table describes the keyboard keys which correspond to
the onboard keypad keys.
Keypad Keys
1st Event
CLR
ESC
RECALL
*
#
A - Z
0 - 9
—
/
•
ENTER
Note: The main keypad function keys (ACK/STEP, ALARM SILENCE, DRILL and RESET)
are not available on the keyboard.
Computer Keyboard Keys
Home
Delete
Esc
Insert
*
#
A - Z
0 - 9
Space bar
(on QZ key)
—
/
•
Enter
