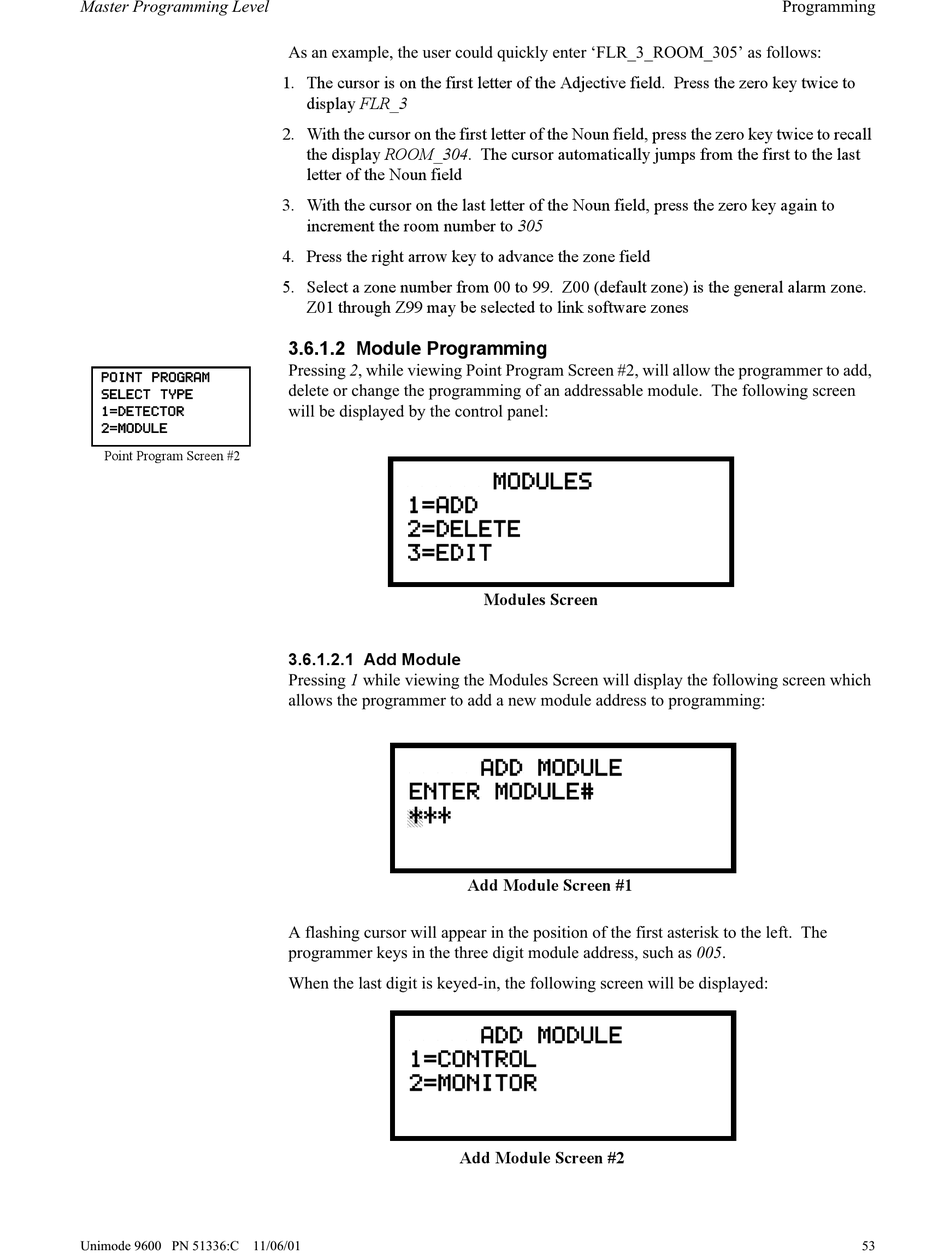

Module Programming; Add Module - ADT Unimode 9600 Installation And Operating Instruction

1. The cursor is on the first letter of the Adjective field. Press the zero key twice to
2. With the cursor on the first letter of the Noun field, press the zero key twice to recall
3. With the cursor on the last letter of the Noun field, press the zero key again to
4. Press the right arrow key to advance the zone field
5. Select a zone number from 00 to 99. Z00 (default zone) is the general alarm zone.
POINT PROGRAM
SELECT TYPE
1=DETECTOR
2=MODULE
Point Program Screen #2
display FLR_3
the display ROOM_304. The cursor automatically jumps from the first to the last
letter of the Noun field
increment the room number to 305
Z01 through Z99 may be selected to link software zones

3.6.1.2 Module Programming

@@@@@@MODULES
1=ADD
2=DELETE
3=EDIT

3.6.1.2.1 Add Module

@@@@@ADD@MODULE
ENTER@MODULE#
***
Add Module Screen #1
@@@@@ADD@MODULE
1=CONTROL
2=MONITOR
Add Module Screen #2
Modules Screen
