Installation
Door = 18.67" (47.43 cm)
Backbox = 18.5" (47.0 cm)
Left Side
18.620"
(47.3 cm)
15.625"
(39.688 cm)
18.625"
(47.308 cm)
Trim Ring
P/N:FC-TR
26
Top
Door = 15.78" (40.08 cm)
Backbox = 15.5" (39.37 cm)
Bottom
21.620"
(54.92 cm)
Battery Box = 14.34" (36.42 cm)

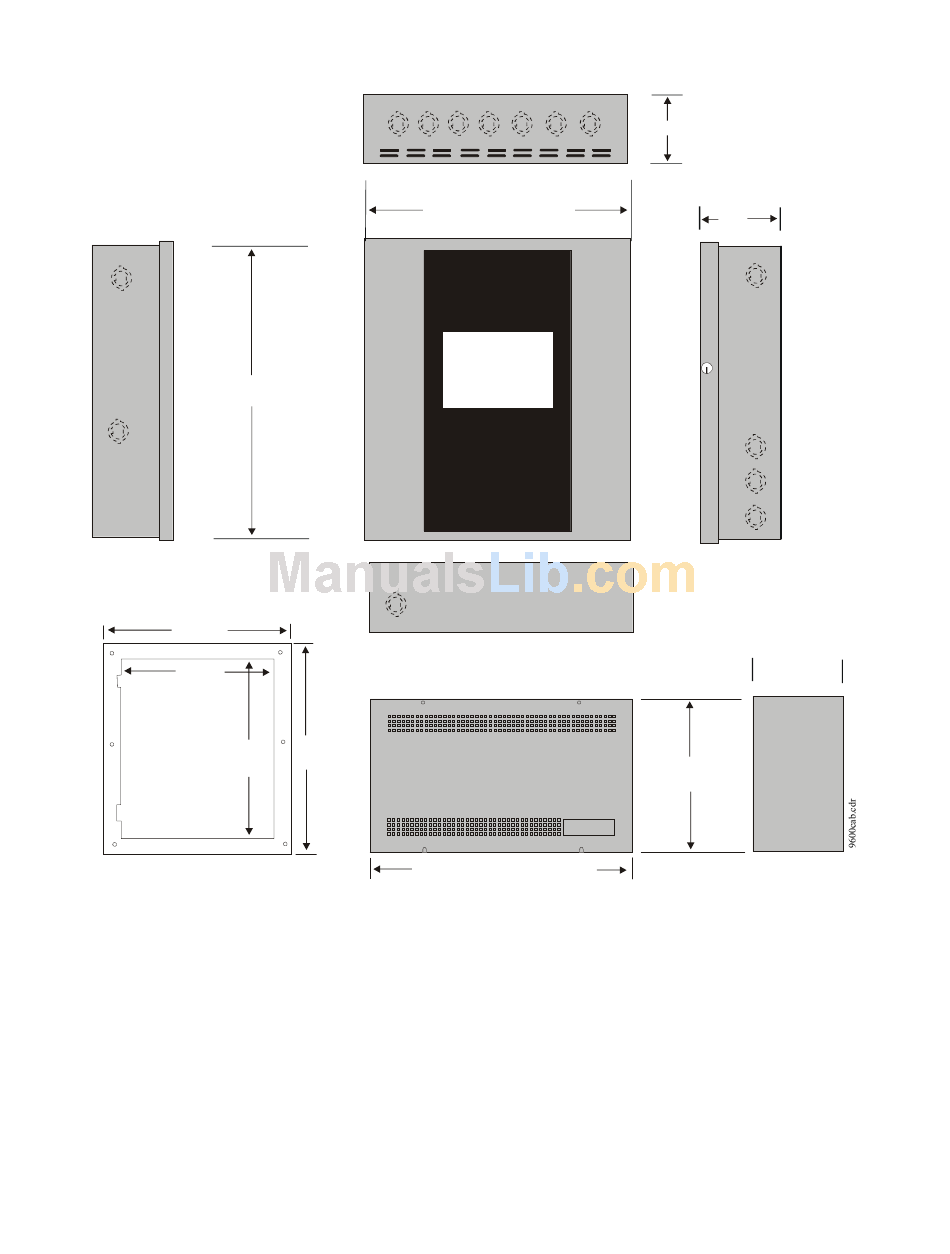

Figure 2.3 Unimode 9600 Cabinet Dimensions
Mounting
Depth = 4.37" (11.1 cm)
Depth =
4.425"
(11.24 cm)
Right Side
Depth = 4.75"
(12.07 cm)
Battery Box = 8.5"
(21.59 cm)
Unimode 9600 PN 51336:C 11/06/01
