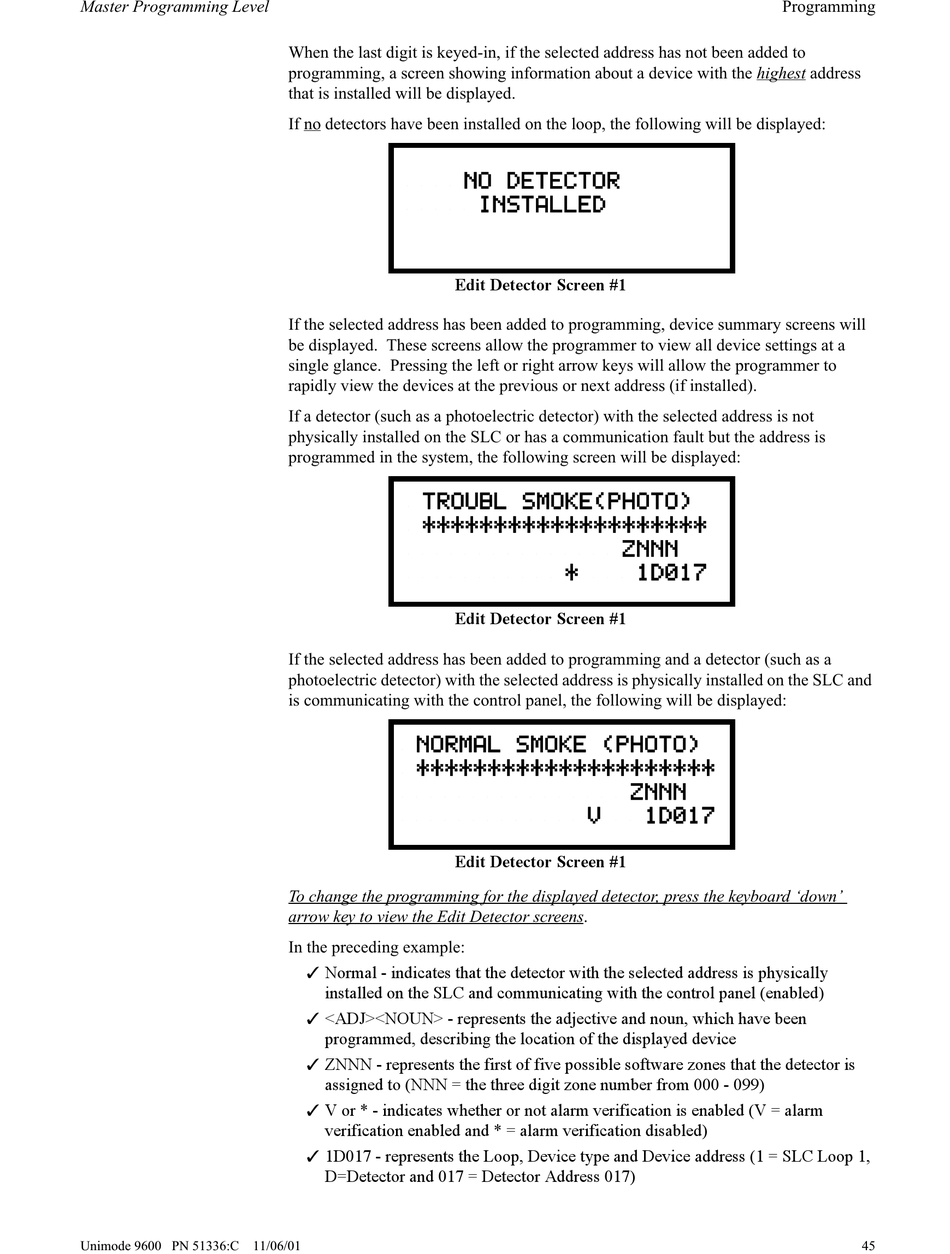

@@@@NO@DETECTOR
@@@@@INSTALLED
Edit Detector Screen #1
@TROUBL@SMOKE(PHOTO)
@********************
@@@@@@@@@@@@@@@ZNNN
@@@@@@@@@@@*@@@@1D017
Edit Detector Screen #1
@NORMAL@SMOKE@(PHOTO)
@*********************
@@@@@@@@@@@@@@@@ZNNN
@@@@@@@@@@@@@V@@@1D017
Edit Detector Screen #1
✓ Normal - indicates that the detector with the selected address is physically
installed on the SLC and communicating with the control panel (enabled)
✓ <ADJ><NOUN> - represents the adjective and noun, which have been
programmed, describing the location of the displayed device
✓ ZNNN - represents the first of five possible software zones that the detector is
assigned to (NNN = the three digit zone number from 000 - 099)
✓ V or * - indicates whether or not alarm verification is enabled (V = alarm
verification enabled and * = alarm verification disabled)
✓ 1D017 - represents the Loop, Device type and Device address (1 = SLC Loop 1,
D=Detector and 017 = Detector Address 017)
