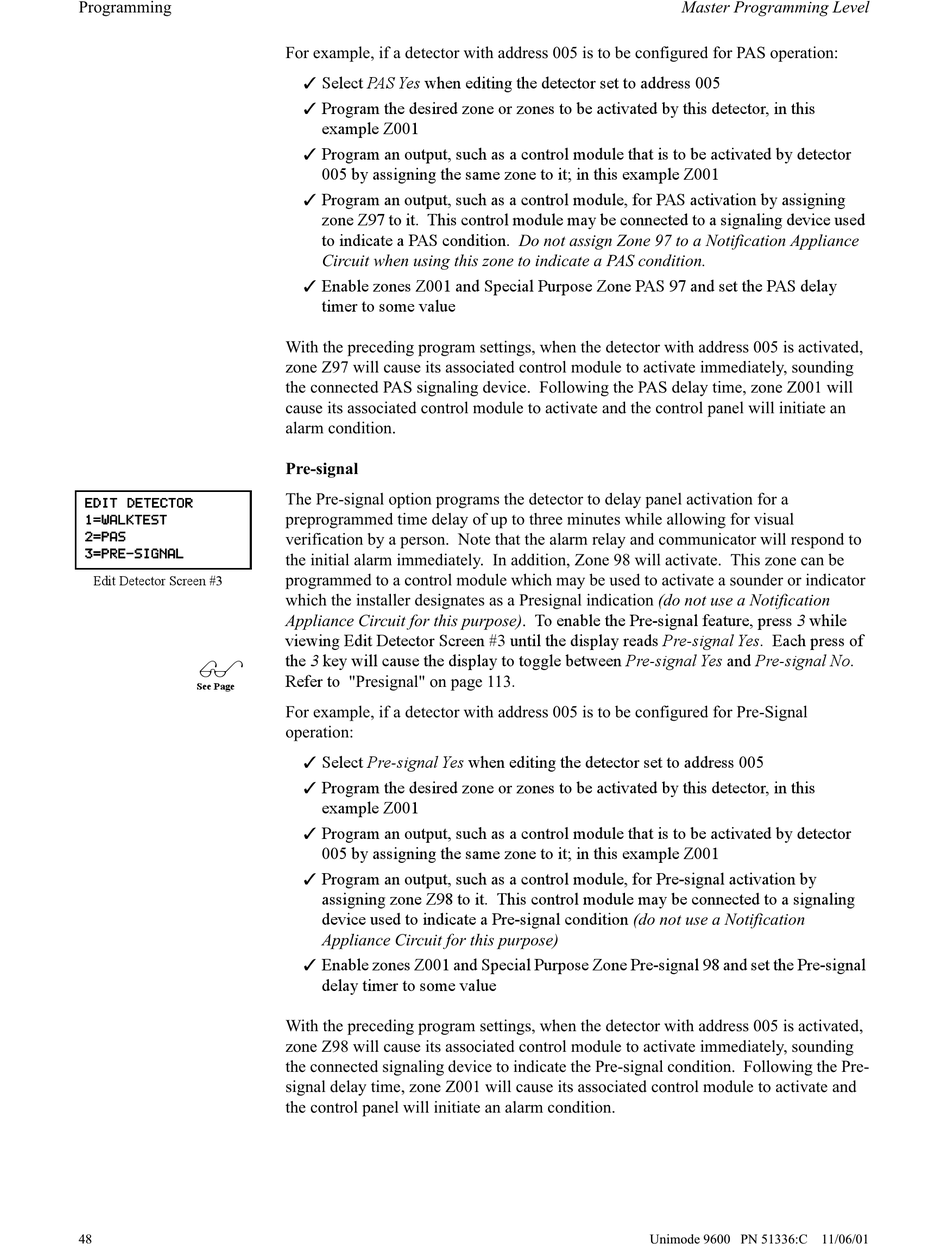

ADT Unimode 9600 Installation And Operating Instruction page 48

EDIT DETECTOR
1=WALKTEST
2=PAS
3=PRE-SIGNAL
Edit Detector Screen #3
See Page
✓ Select PAS Yes when editing the detector set to address 005
✓ Program the desired zone or zones to be activated by this detector, in this
example Z001
✓ Program an output, such as a control module that is to be activated by detector
005 by assigning the same zone to it; in this example Z001
✓ Program an output, such as a control module, for PAS activation by assigning
zone Z97 to it. This control module may be connected to a signaling device used
to indicate a PAS condition.
✓ Enable zones Z001 and Special Purpose Zone PAS 97 and set the PAS delay
timer to some value
viewing Edit Detector Screen #3 until the display reads Pre-signal Yes. Each press of
the 3 key will cause the display to toggle between Pre-signal Yes and Pre-signal No.
Refer to
✓ Select Pre-signal Yes when editing the detector set to address 005
✓ Program the desired zone or zones to be activated by this detector, in this
example Z001
✓ Program an output, such as a control module that is to be activated by detector
005 by assigning the same zone to it; in this example Z001
✓ Program an output, such as a control module, for Pre-signal activation by
assigning zone Z98 to it. This control module may be connected to a signaling
device used to indicate a Pre-signal condition
✓ Enable zones Z001 and Special Purpose Zone Pre-signal 98 and set the Pre-signal
delay timer to some value
To enable the Pre-signal feature, press 3 while
.
