1.4 Controls and Indicators

16
LCD Display
The FACP uses an 80-character (4 lines
X 20 characters) high viewing angle
LCD display. The display includes a
long life LED backlight that remains
illuminated. If AC power is lost and the
system is not in alarm, the LED
backlight will turn off to conserve batteries.
LED Indicators
LED indicators are provided to annunciate the following conditions:
• AC Power (green)
• Fire Alarm (red)
• Supervisory (yellow)
• Trouble (yellow)
• Maintenance/presignal (yellow)
• Alarm Silenced signals (yellow)
• Disabled (yellow)
• Battery fault (yellow)
• Ground fault (yellow)
Key Panel
Mounted on the main circuit board, the key panel includes a window for the LCD display
and LED indicators as listed above. The key panel, which is visible with the cabinet door
closed, has 25 keys, including a 16 key alpha-numeric pad similar to a telephone keypad.
Function keys:
• Acknowledge/Step
• Alarm Silence
• Drill
• Reset (lamp test)
Service/program keys:
• Keys labeled 1 to 9
• * key
• # key
• 0 (recall) key
• 1st Event key
• Clear key
• Escape key
• Mode key
• Four cursor keys (up, down, left and right)
• Enter key
Local Piezo Sounder
A piezo sounder provides separate and distinct pulse rates for alarm, trouble and
supervisory conditions.
Controls and Indicators
SYSTEM ALL NORMAL
10:00A 010101
AC POWER
FIRE ALARM
SUPERVISORY
TROUBLE
1 2 3 1 st
ABC DEF
EVENT
4 5 6
CLR
ENTER
JKL MNO
GHI
7 8 9 ESC
PRS TUV WXY
0 #
* MODE
-/.
QZ
RECALL

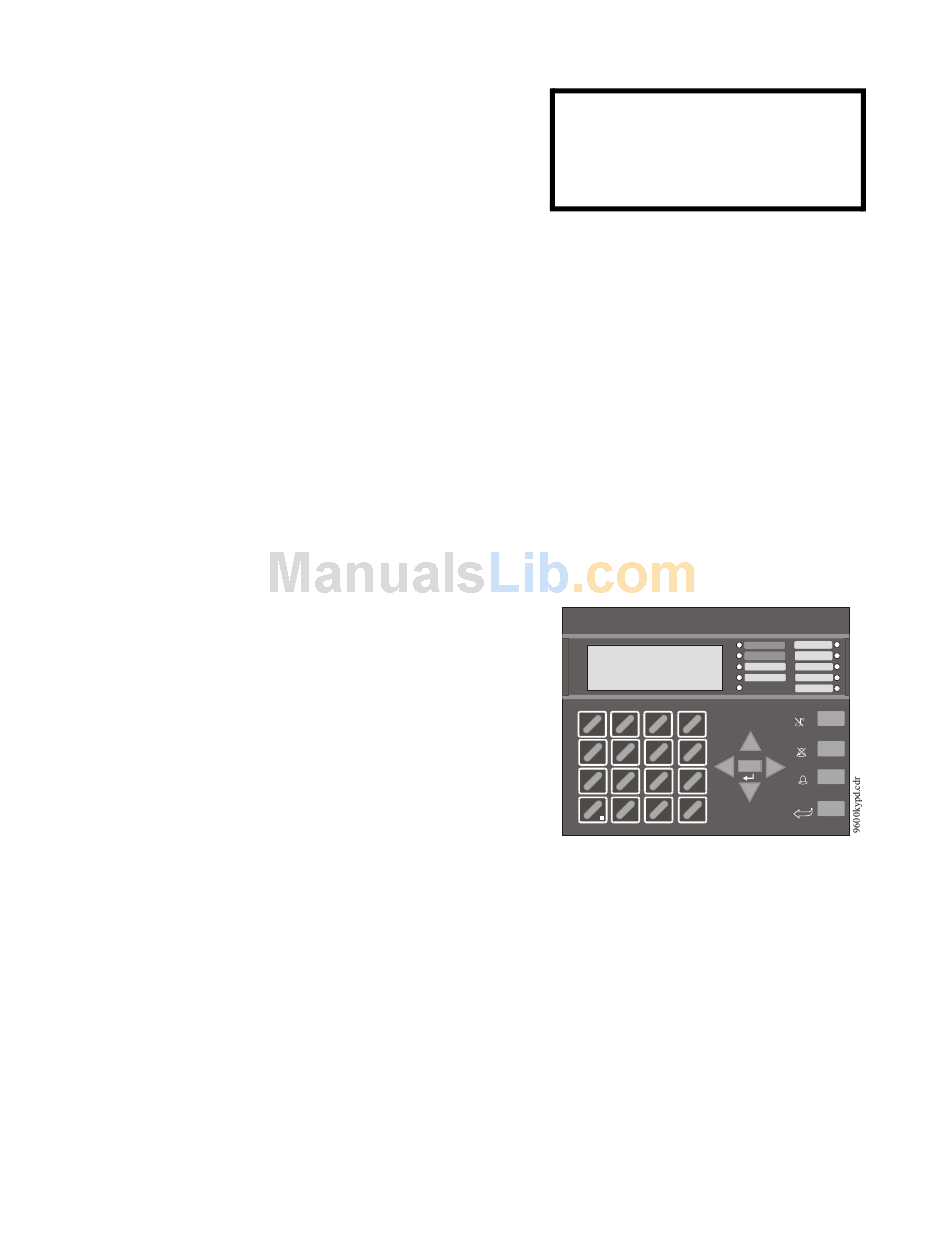

Figure 1.2 Membrane/Display Panel
Unimode 9600 PN 51336:C 11/06/01
MAINTENANCE
ALARM
SILENCED
DISABLED
BATTERY
GROUND
ACK/STEP
ALARM
SILENCE
DRILL
HOLD 2 SEC
RESET
