This device is a battery leak detector that allows you to non-destructively check for
leaks, both on hard battery cells and pouch cells.
The battery leak detector consists of a Gas Detection Unit, a Gas Control Unit and an
optionally available vacuum test chamber.
Gas detection unit
The display of the gas detection unit can fail due to electrostatic charge.
► You can continue operating the ELT3000 without limitation.
► The display can be reactivated by restarting the unit.

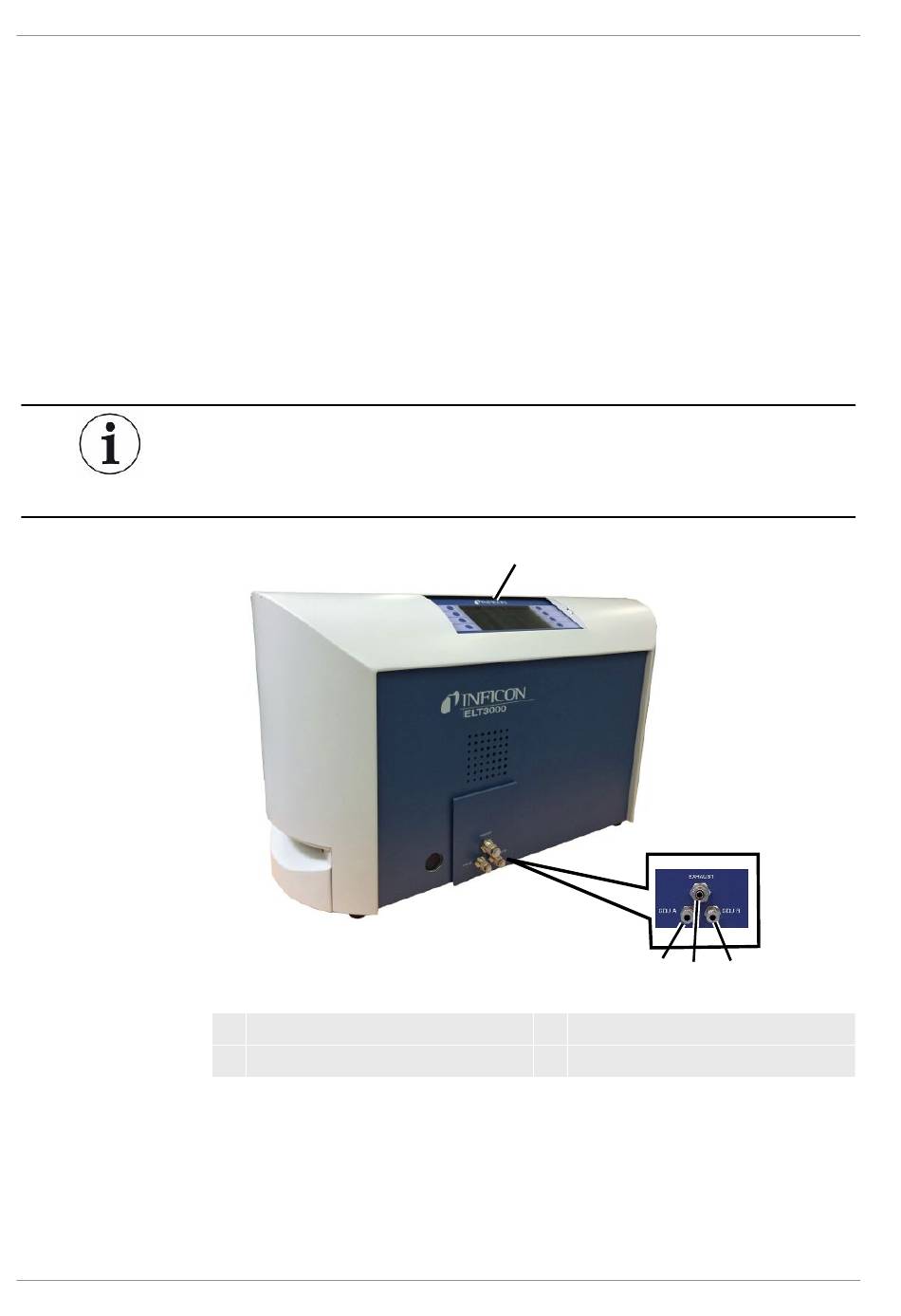

1 Display
2 GDU A
The gas detection unit works under high vacuum, i.e., the pressure in the quadrupole
mass spectrometer must always be less than 5 x 10
the turbo molecular pump with the help of a diaphragm pump.
ELT3000-Battery Leak-Detector-Operating-instructions-mina95en1-10-(2007)
1
2 3
3 EXHAUST
4 GDU B
-4
mbar. This vacuum is created by
