INFICON
Gas Control Unit
ELT3000-Battery Leak-Detector-Operating-instructions-mina95en1-10-(2007)
1
15 14 13

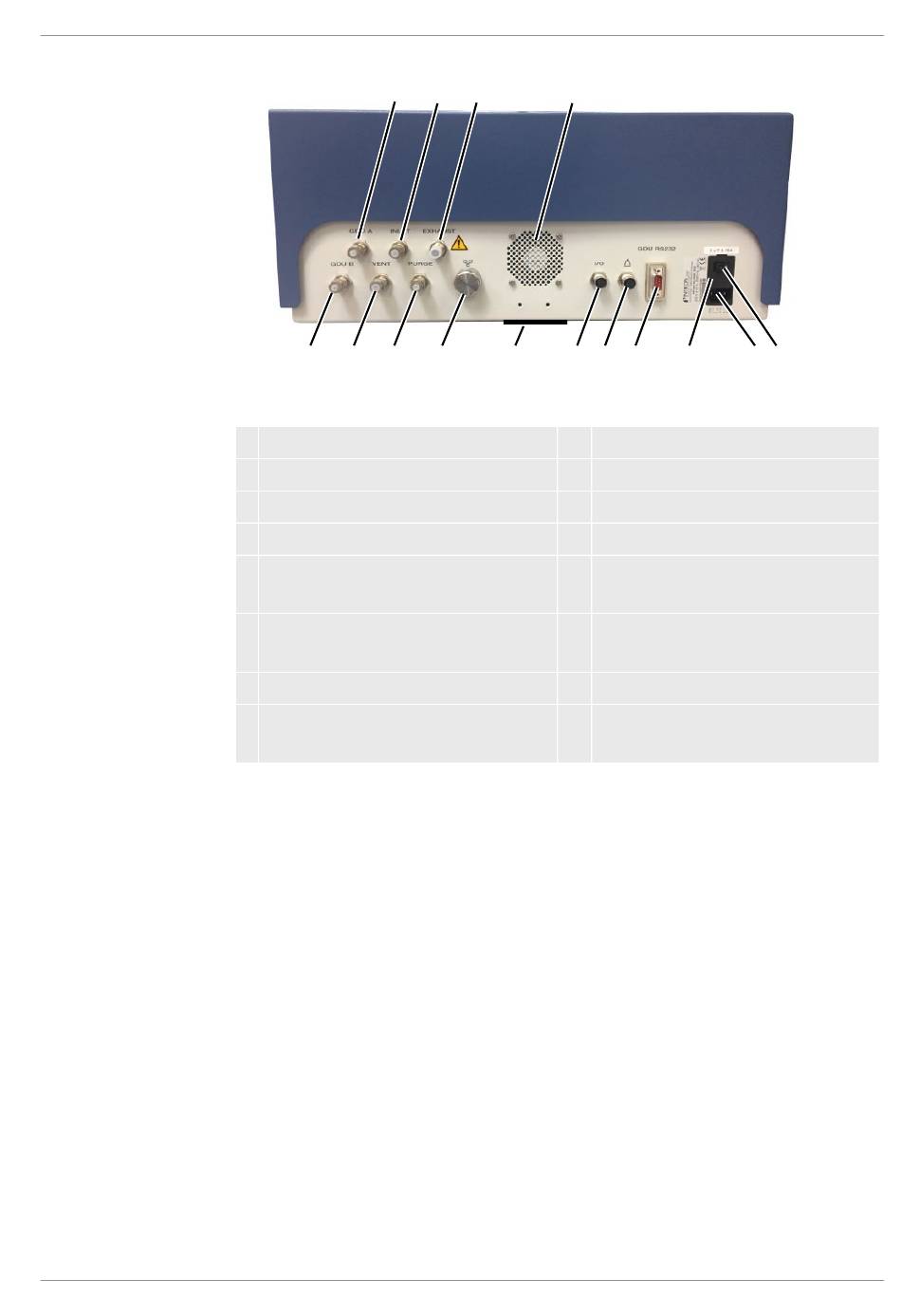

1 GDU A, Ø 6 mm
2 INLET (test chamber connection)
3 Exhaust, exhaust hose, Ø 10 mm
4 Exhaust air
5 Power switch
6 Power cable connection
7 Fuses behind cover
8 RS232 signal connection to the gas
detection system
2 3 4
10
11
12
9
10 I/O port connection
11 Fresh air
12 Network connection RJ45
13 PURGE, fresh air connection, Ø 6
14 VENT (chamber connection
15 GDU B, Ø 6 mm
9 8 7
6
Connection for vacuum chamber
mm
ventilation)
Installation | 5
5
27 / 74
