5 | Installation
Example
3
2
1
6
7

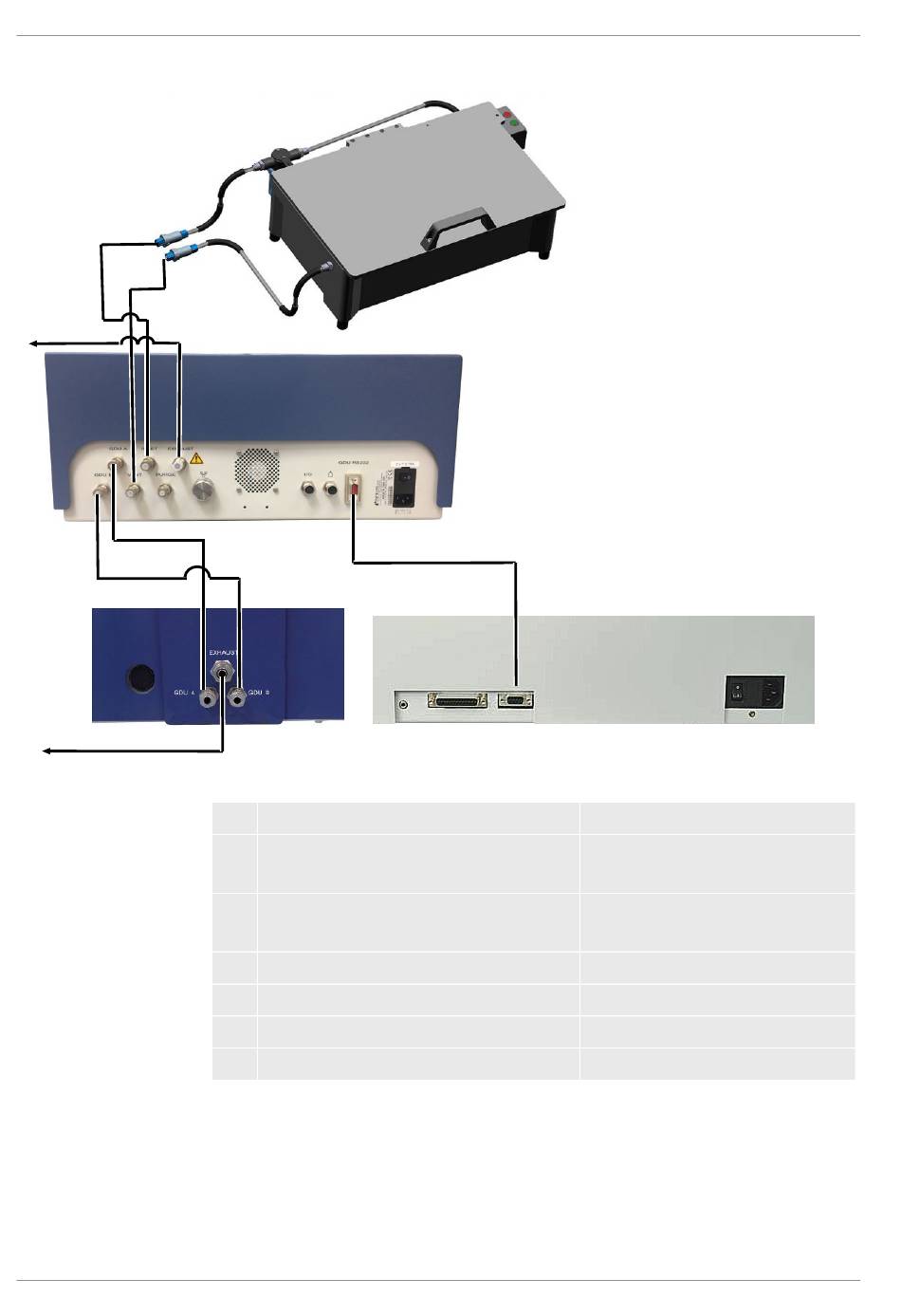

Fig. 2: ELT3000 connection
32 / 74
Test chamber
N/A
RJ45
4
5
Gas Detection unit
1 Exhaust GCU
2 INLET (test chamber connection fresh
air)
3 VENT (test chamber connection exhaust
air)
4 Connection cable GCU-GDU
5 GDU A
6 GDU B
7 Exhaust GDU
ELT3000-Battery Leak-Detector-Operating-instructions-mina95en1-10-(2007)
Gas Control unit
Ø 10 mm
Ø 8 mm
Ø 8 mm
--
Ø 6 mm
Ø 6 mm
Ø 10 mm
