5 | Installation

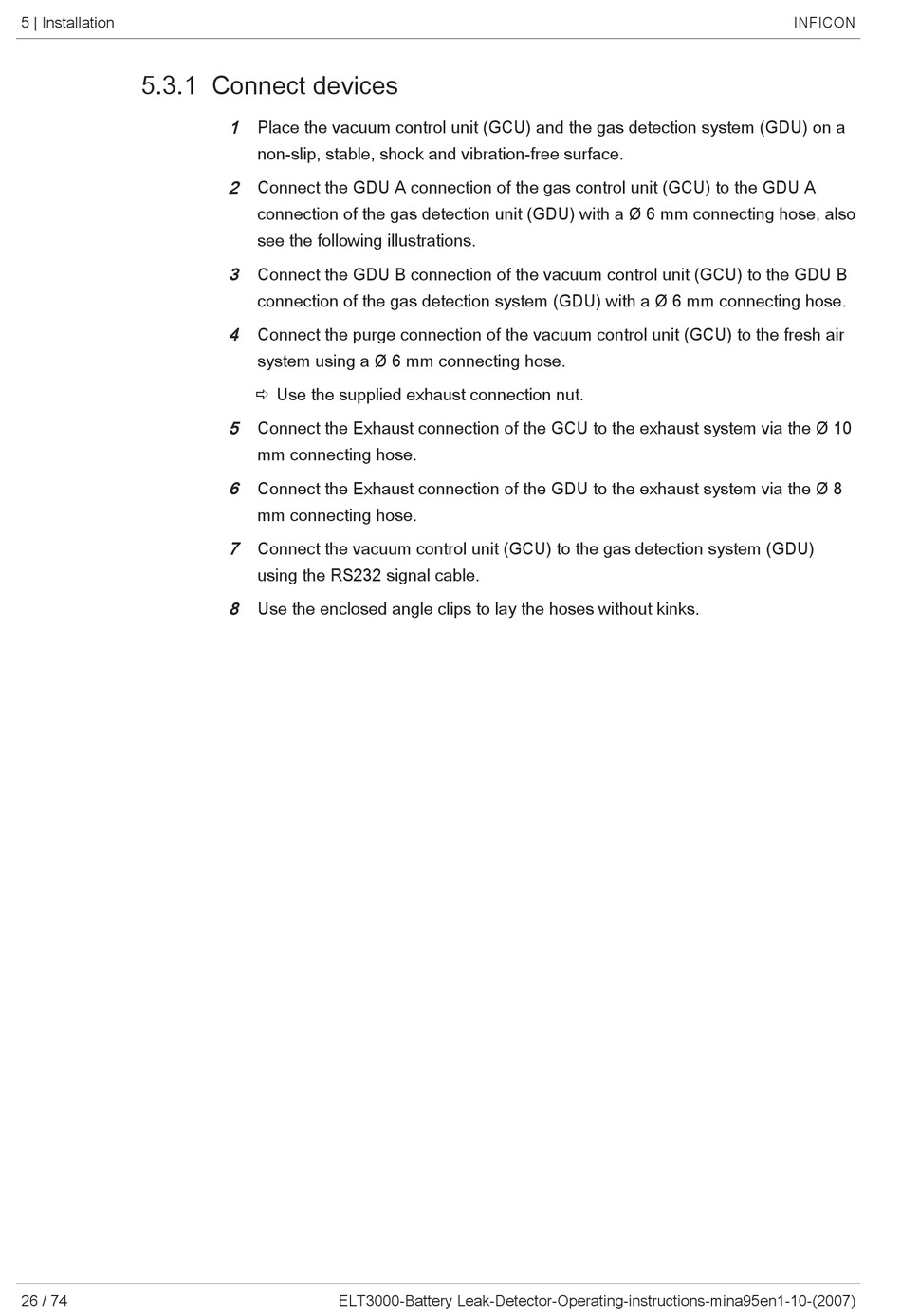

5.3.1 Connect devices

26 / 74
1 Place the vacuum control unit (GCU) and the gas detection system (GDU) on a
non-slip, stable, shock and vibration-free surface.
2
Connect the GDU A connection of the gas control unit (GCU) to the GDU A
connection of the gas detection unit (GDU) with a Ø 6 mm connecting hose, also
see the following illustrations.
3
Connect the GDU B connection of the vacuum control unit (GCU) to the GDU B
connection of the gas detection system (GDU) with a Ø 6 mm connecting hose.
4 Connect the purge connection of the vacuum control unit (GCU) to the fresh air
system using a Ø 6 mm connecting hose.
ð Use the supplied exhaust connection nut.
5 Connect the Exhaust connection of the GCU to the exhaust system via the Ø 10
mm connecting hose.
6
Connect the Exhaust connection of the GDU to the exhaust system via the Ø 8
mm connecting hose.
7
Connect the vacuum control unit (GCU) to the gas detection system (GDU)
using the RS232 signal cable.
8 Use the enclosed angle clips to lay the hoses without kinks.
