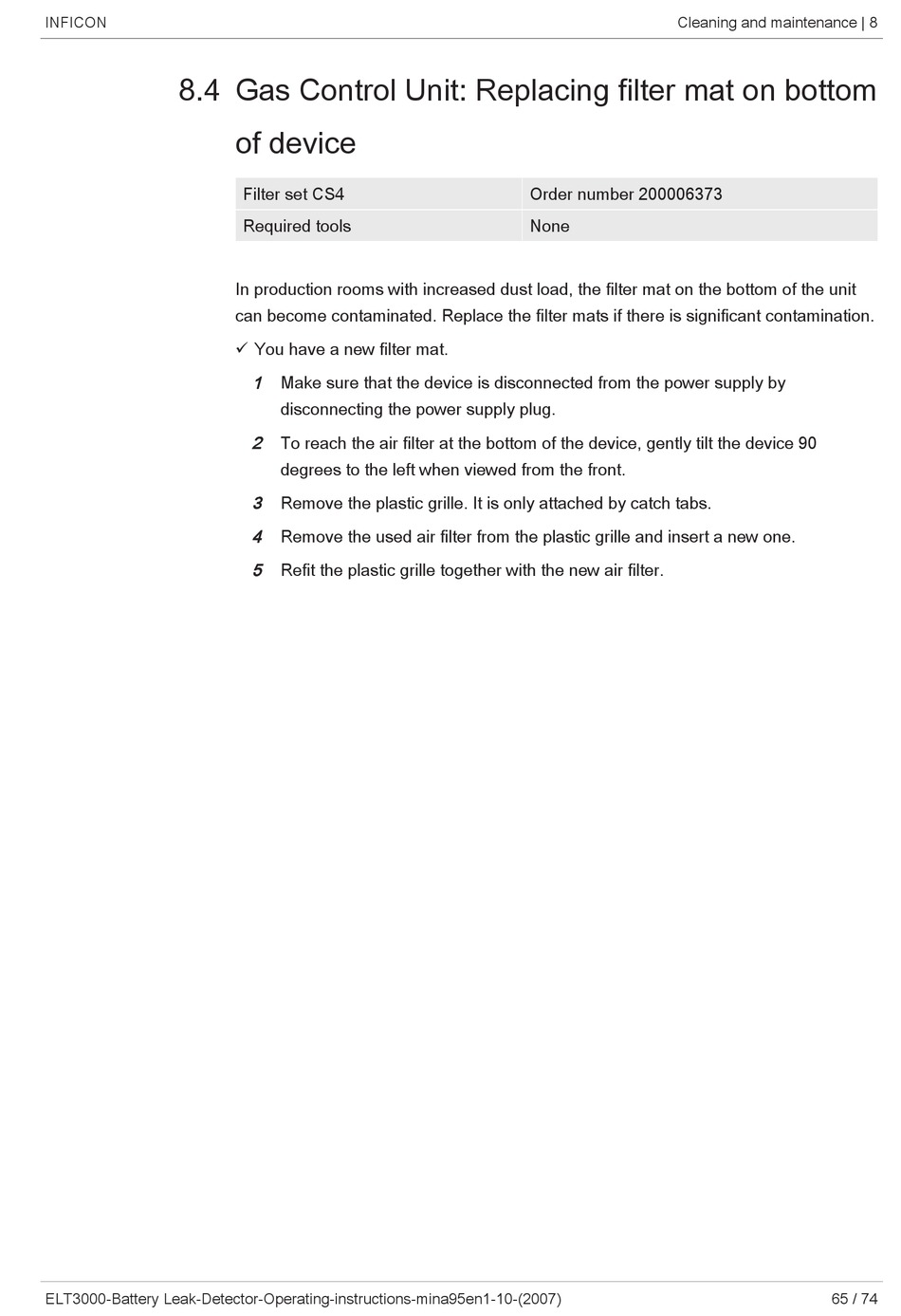

8.4 Gas Control Unit: Replacing filter mat on bottom
ELT3000-Battery Leak-Detector-Operating-instructions-mina95en1-10-(2007)
of device
Filter set CS4
Required tools
In production rooms with increased dust load, the filter mat on the bottom of the unit
can become contaminated. Replace the filter mats if there is significant contamination.
ü You have a new filter mat.
1
Make sure that the device is disconnected from the power supply by
disconnecting the power supply plug.
2 To reach the air filter at the bottom of the device, gently tilt the device 90
degrees to the left when viewed from the front.
3
Remove the plastic grille. It is only attached by catch tabs.
4 Remove the used air filter from the plastic grille and insert a new one.
5
Refit the plastic grille together with the new air filter.
Cleaning and maintenance | 8
Order number 200006373
None
65 / 74
