6 | Operation

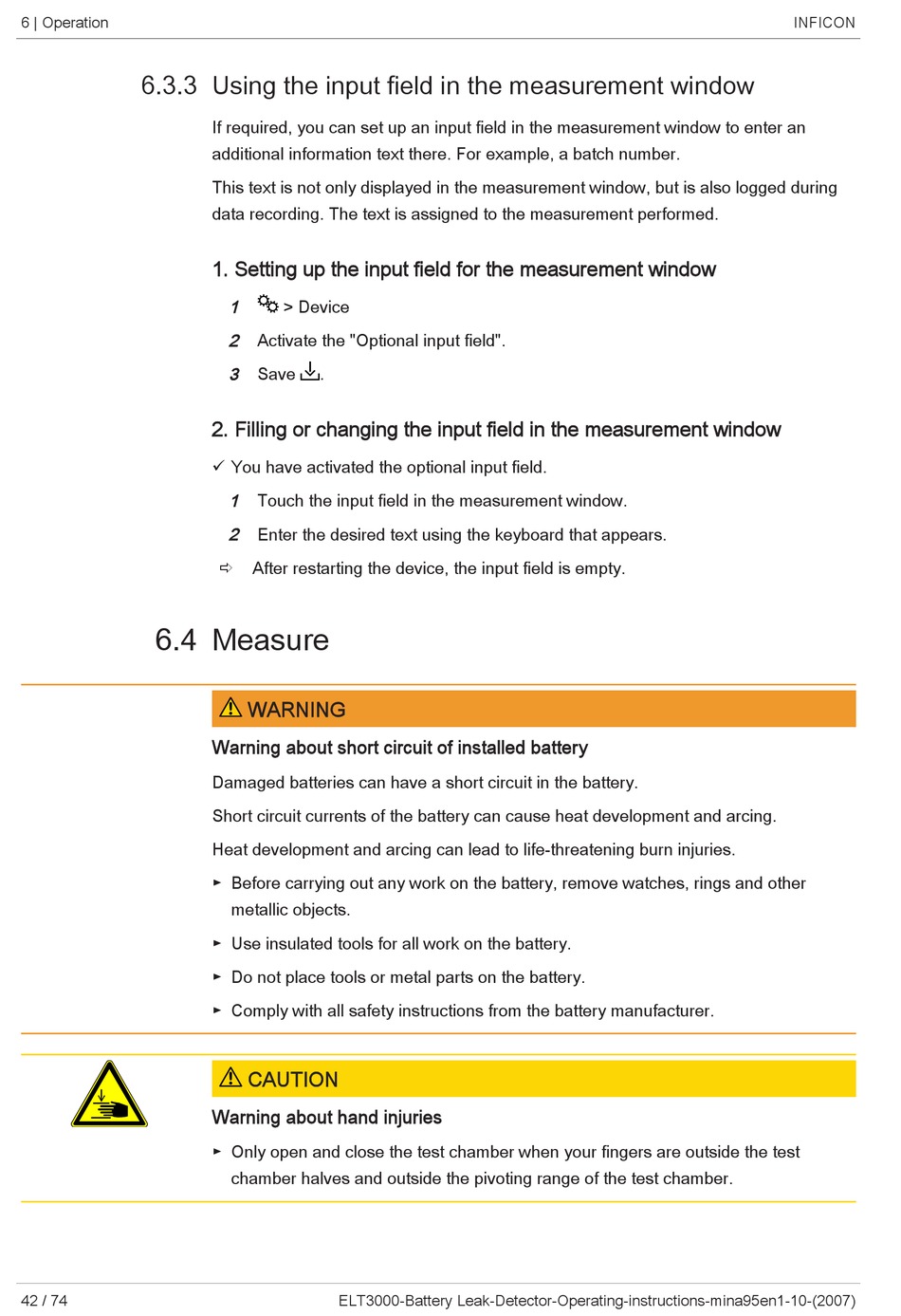

6.3.3 Using the input field in the measurement window

6.4 Measure

42 / 74
If required, you can set up an input field in the measurement window to enter an
additional information text there. For example, a batch number.
This text is not only displayed in the measurement window, but is also logged during
data recording. The text is assigned to the measurement performed.
1. Setting up the input field for the measurement window
1 > Device
2
Activate the "Optional input field".
3 Save .
2. Filling or changing the input field in the measurement window
ü You have activated the optional input field.
1
Touch the input field in the measurement window.
2 Enter the desired text using the keyboard that appears.
ð
After restarting the device, the input field is empty.
WARNING
Warning about short circuit of installed battery
Damaged batteries can have a short circuit in the battery.
Short circuit currents of the battery can cause heat development and arcing.
Heat development and arcing can lead to life-threatening burn injuries.
► Before carrying out any work on the battery, remove watches, rings and other
metallic objects.
► Use insulated tools for all work on the battery.
► Do not place tools or metal parts on the battery.
► Comply with all safety instructions from the battery manufacturer.
CAUTION
Warning about hand injuries
► Only open and close the test chamber when your fingers are outside the test
chamber halves and outside the pivoting range of the test chamber.
ELT3000-Battery Leak-Detector-Operating-instructions-mina95en1-10-(2007)
INFICON
