6.8 Reassembly

6.8.4 Install the back pull-out assembly

WARNING:
Lifting and handling heavy equipment poses a crush hazard. Use caution during lifting and
handling and wear appropriate Personal Protective Equipment (PPE, such as steel-toed shoes,
gloves, etc.) at all times. Seek assistance if necessary.
1. Clean the casing fit and install the casing gasket (400) on the seal chamber and stuffing-box cover.
2. Install the back pull-out assembly in the casing.

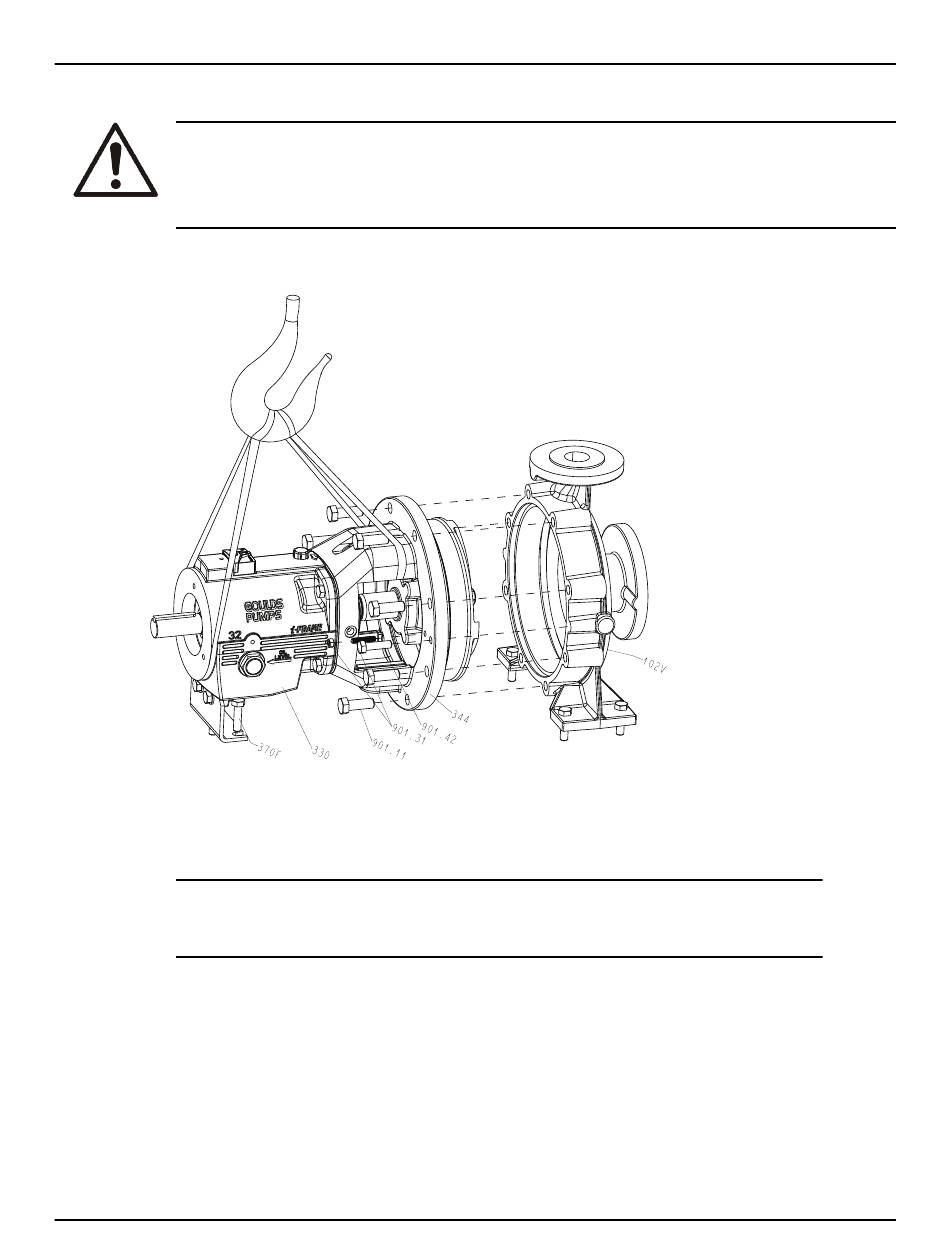

Figure 52: Install back pull-out assembly
3. Install and then hand-tighten the casing bolts (901.11).
Refer to the bolt torque values for information on how to tighten the casing bolts.
4. Install and tighten the casing jackscrews.
NOTICE:
Do not overtighten the casing jackscrews. Doing so may result in equipment damage.
5. Turn the shaft by hand in order to make sure that it moves freely.
The shaft seal can cause a slight resistance, but there must not be any metal-to-metal contact.
6. Reinstall the shims under the frame foot and tighten the frame foot to the baseplate.
Make sure that you use the proper shim. Mount a dial indicator in order to measure the distance
between the top of the frame and the baseplate. Make sure that the distance does not change as
you tighten the frame-foot bolts.
7. Replace the auxiliary piping.
8. Fill the pump with the proper lubricant. See Lubricating-oil requirements.
9. Reinstall the coupling guard.
See Install the coupling guard for more information.
92 Model ICO i-FRAME, ICOH i-FRAME Installation, Operation, and Maintenance Manual
