4.5 Grout the baseplate
7
6
Item Description
1. Baseplate
2. Shims or wedges
3. Grout
4. Foundation
5. Sleeve
6. Dam
7. Bolt

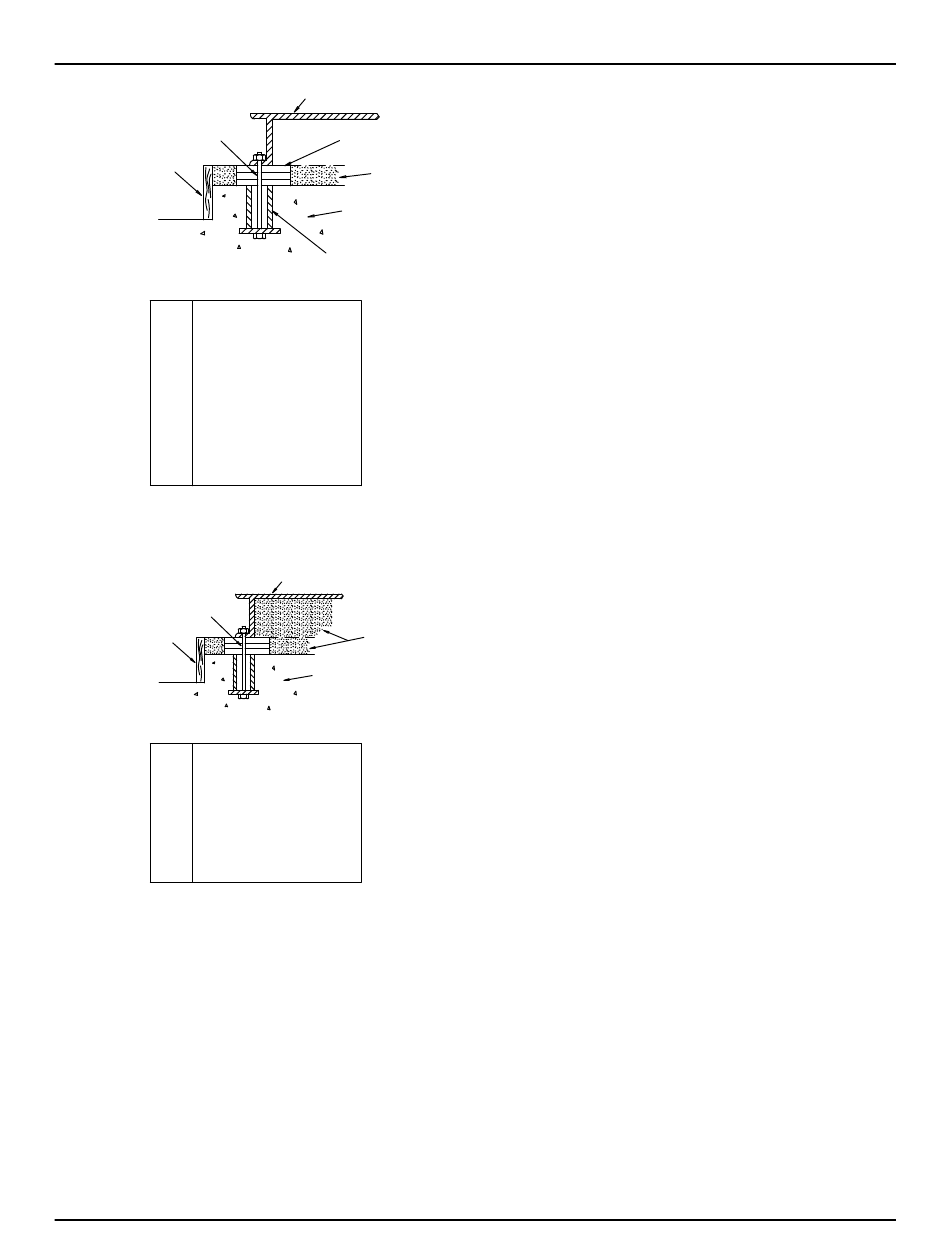

Figure 12: Pour grout into baseplate
6. Fill the remainder of the baseplate with grout, and allow the grout to set for at least 48 hours.
5
4
Item Description
1. Baseplate
2. Grout
3. Foundation
4. Dam
5. Bolt
Figure 13: Fill remainder of baseplate with grout
7. Remove the leveling jackscrews after the grout hardens in order to remove any stress points.
8. Tighten the foundation bolts.
9. Make sure that treatment of the concrete is in accordance with DIN 1045.
32
1
2
3
4
5
1
2
3
Model ICO i-FRAME, ICOH i-FRAME Installation, Operation, and Maintenance Manual
