ITT GOULDS PUMPS ICO i-FRAME Installation, Operation And Maintenance Manual page 23

1
3
Item Description
1. Jackscrew
2. Baseplate
3. Foundation
4. Plate

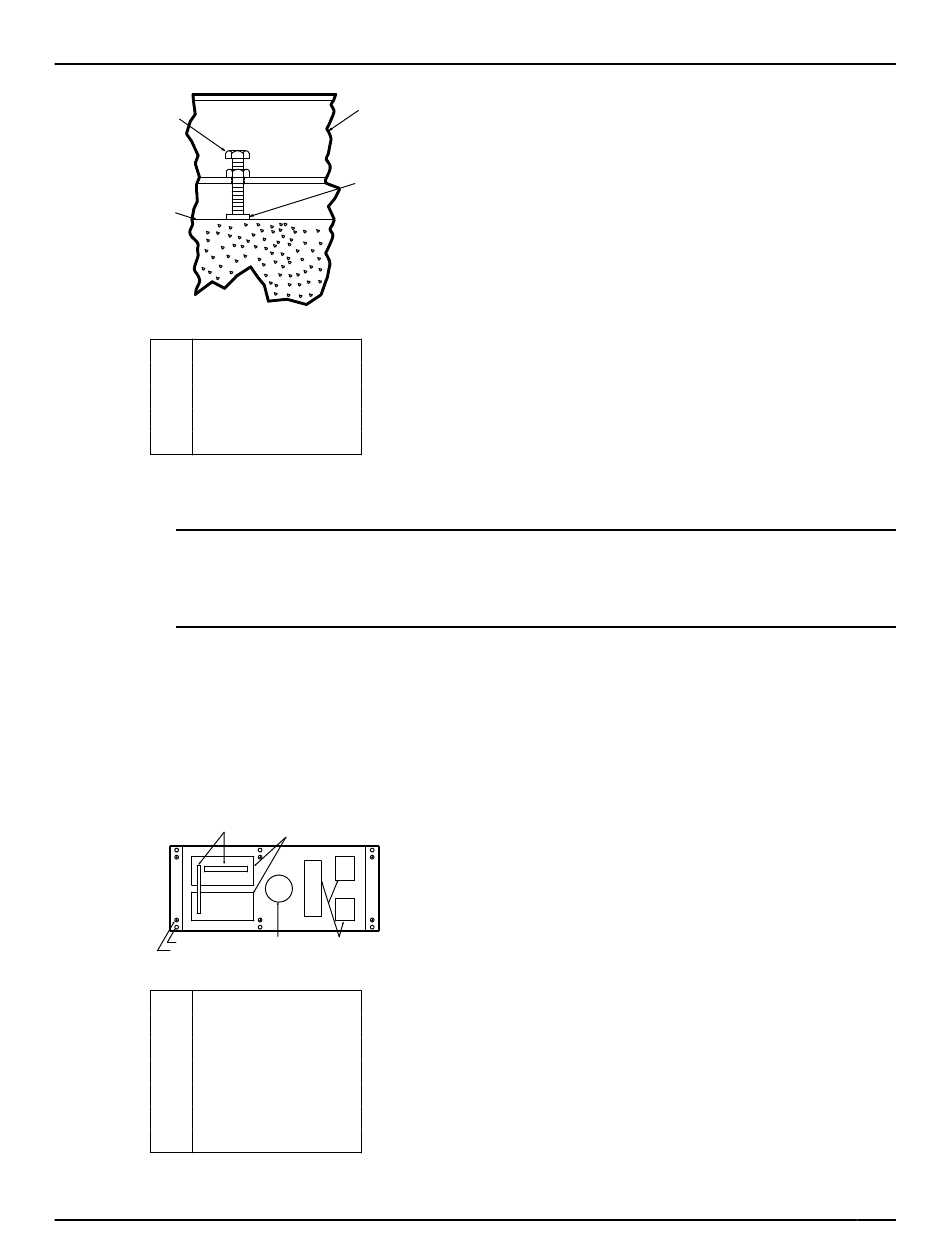

Figure 6: Jackscrews
3. Level the driver mounting pads:
NOTICE:
Remove all dirt from the mounting pads in order to ensure that the correct leveling is achieved.
Failure to do so can result in equipment damage or decreased performance.
a) Put one machinist's level lengthwise on one of the two pads.
b) Put the other machinist's level across the ends of the two pads.
c) Level the pads by adjusting the four jackscrews in the corners.
Make sure that the machinist's level readings are as close to zero as possible, both lengthwise and
across.
Use the baseplate-leveling worksheet when you take the readings.
1
3
4
Item Description
1. Machinist's levels
2. Driver's mounting pads
3. Foundation bolts
4. Jackscrews
5. Grout hole
6. Pump's mounting pads
Figure 7: Level driver mounting pads
Model ICO i-FRAME, ICOH i-FRAME Installation, Operation, and Maintenance Manual
2
4
2
5 6
4.2 Baseplate-mounting procedures
21
