5.5 Install the coupling guard
1
Item Description
1.
Nut
2.
Washer
3.
Bolt

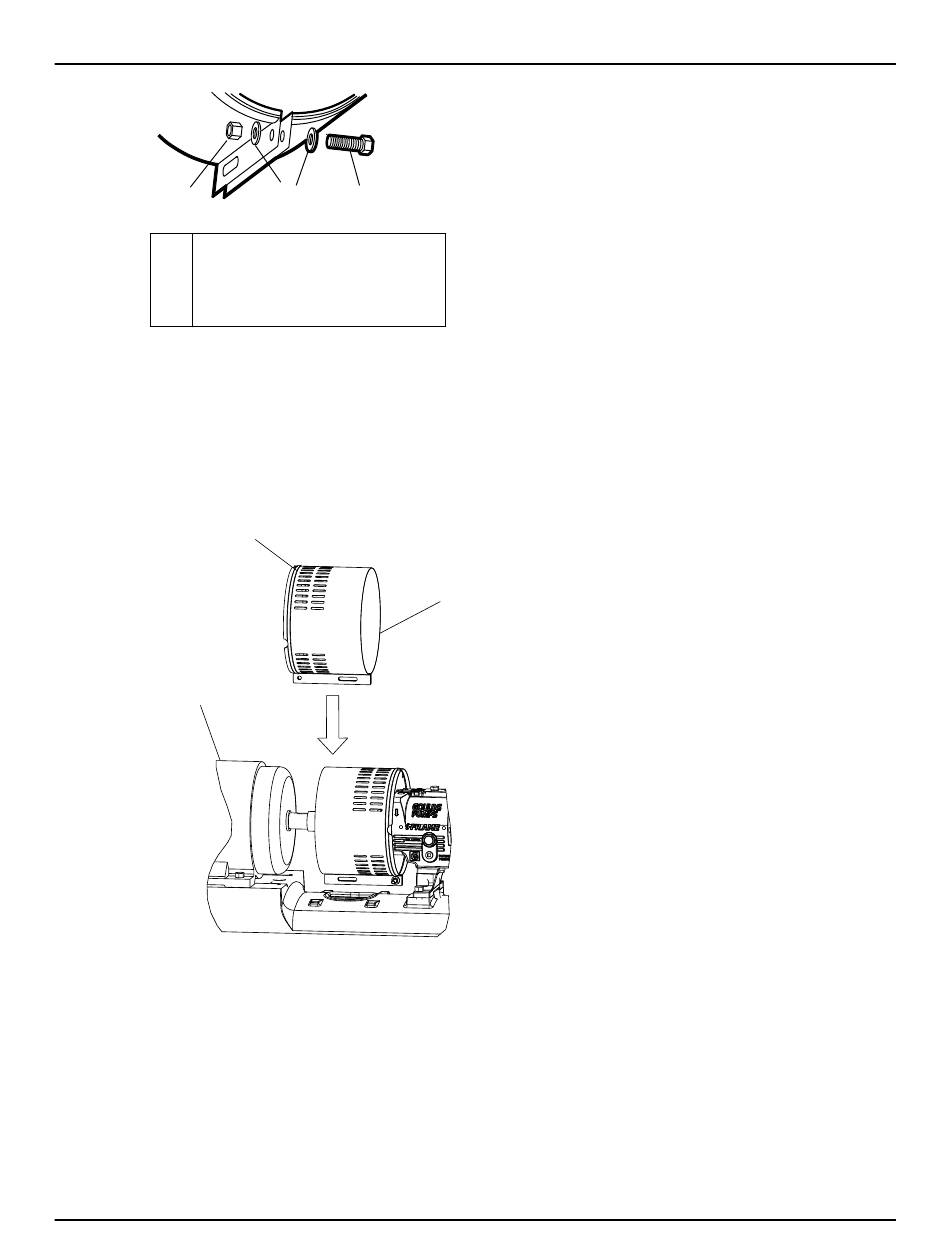

Figure 17: Secure coupling guard half to end plate
4.
Put the driver half of the coupling guard in place:
a)
Slightly spread the bottom apart.
b)
Place the driver half of the coupling guard over the pump half of the coupling guard.
The annular groove in the coupling guard half must face the motor.
Annular
groove
Driver
Figure 18: Placement of driver half of coupling guard
5.
Place the driver-side end plate over the motor shaft.
48
2
3
Guard half
Model ICO i-FRAME, ICOH i-FRAME Installation, Operation, and Maintenance Manual
