Driver

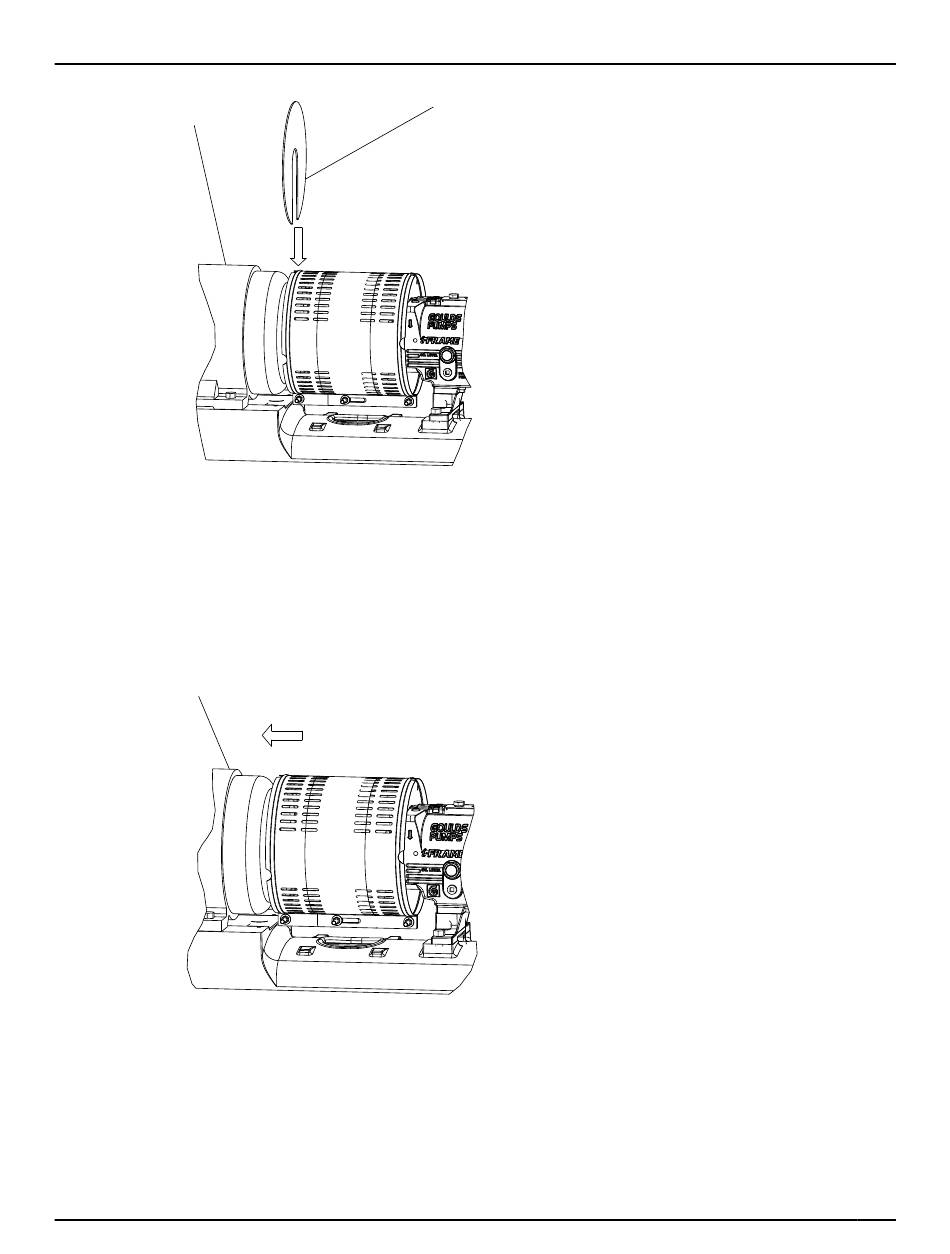

Figure 19: Placement of driver half of coupling guard
6.
Place the driver-side end plate in the annular groove of the driver-half of the coupling guard.
7.
Use a bolt, a nut, and two washers to secure the coupling guard half to the end plate. Hand-tighten
only.
The hole is located on the driver-side of the coupling guard half.
8.
Slide the driver-half of the coupling guard towards the motor so that the coupling guard completely
covers the shafts and coupling.
Driver
Figure 20: Slide driver-half of coupling guard towards motor
9.
Use a nut, a bolt, and two washers to secure the coupling guard halves together.
10. Tighten all nuts on the guard assembly.
Model ICO i-FRAME, ICOH i-FRAME Installation, Operation, and Maintenance Manual
End plate
Slide to fit
5.5 Install the coupling guard
49
