6.8 Reassembly

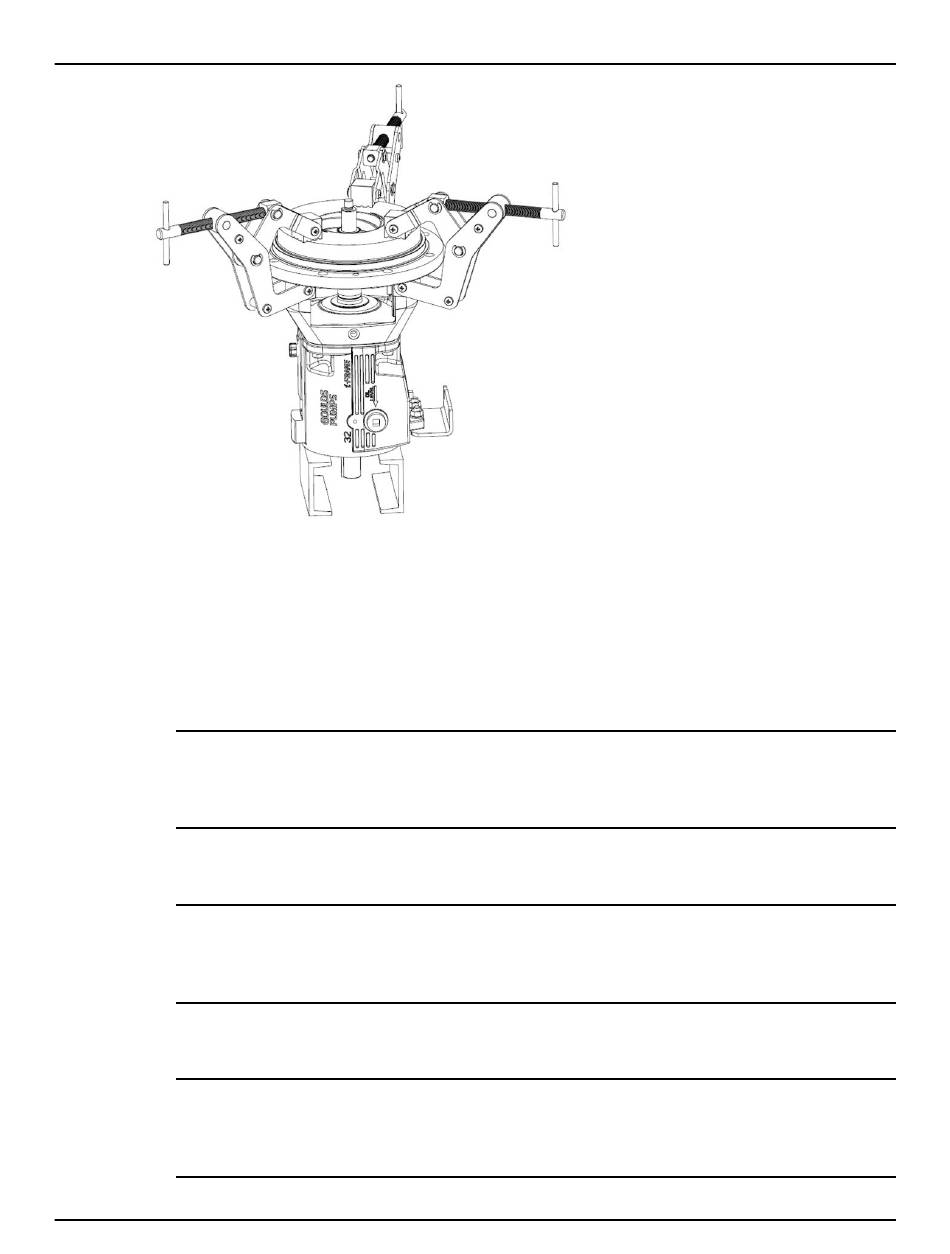

Figure 44: Assembly arrangement
8. If casing cover (161) to frame adapter (344) retention studs (920.32) are not supplied, install clamps
as shown in
adapter (344) with dead blow or lead hammer.
9. Install shaft sleeve (524).
Do not install shaft sleeve O-ring (412.21) at this time.
10. Adjacent to the current assembly, orient the casing (102V), suction flange down, on a stable work
surface.
NOTICE:
Avoid damaging the suction flange gasket face - Use a protective material such as cardboard
or a soft metal like aluminum.
11. Locate the impeller (230) and place it in the casing (102V) with suction eye down.
12. Ensure the impeller (230) is centered in the casing (102V) by spinning and/or shifting the impeller
(230) until full contact between vanes and casing (102V) has been achieved.
NOTICE:
There should be no rocking or tipping of the impeller once centered - This is imperative for ac-
curate shim (525) measurements.
13. With components assembled and oriented as defined, take measurements to determine axial shim
(525) thickness required for correct front clearance.
14. Determine gasket type and fluid temperature - record in the provided fields.
NOTICE:
If using ITT/Goulds K14153A gauge bar kit, see
87, If using a generic bar see
86
Figure 44: Assembly arrangement on page 86
Figure 46: Generic gauge bar method on page
Model ICO i-FRAME, ICOH i-FRAME Installation, Operation, and Maintenance Manual
after seating casing cover (161) in frame
Figure 45: Goulds gauge bar method on page
87.
