Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4
3.6 Getting Started
The instruction in this section explains how to setup the Open-Q 2100 Development Kit.
3.6.1 Default DIP switch settings
The DIP switch S3400 and S1700 is by default set to OFF positions. This setting corresponds
to HDMI display selected, SMB charger enabled, USB forced boot disabled and eMMC boot
option selected. See section
and DIP switch positions are shown in figure below:

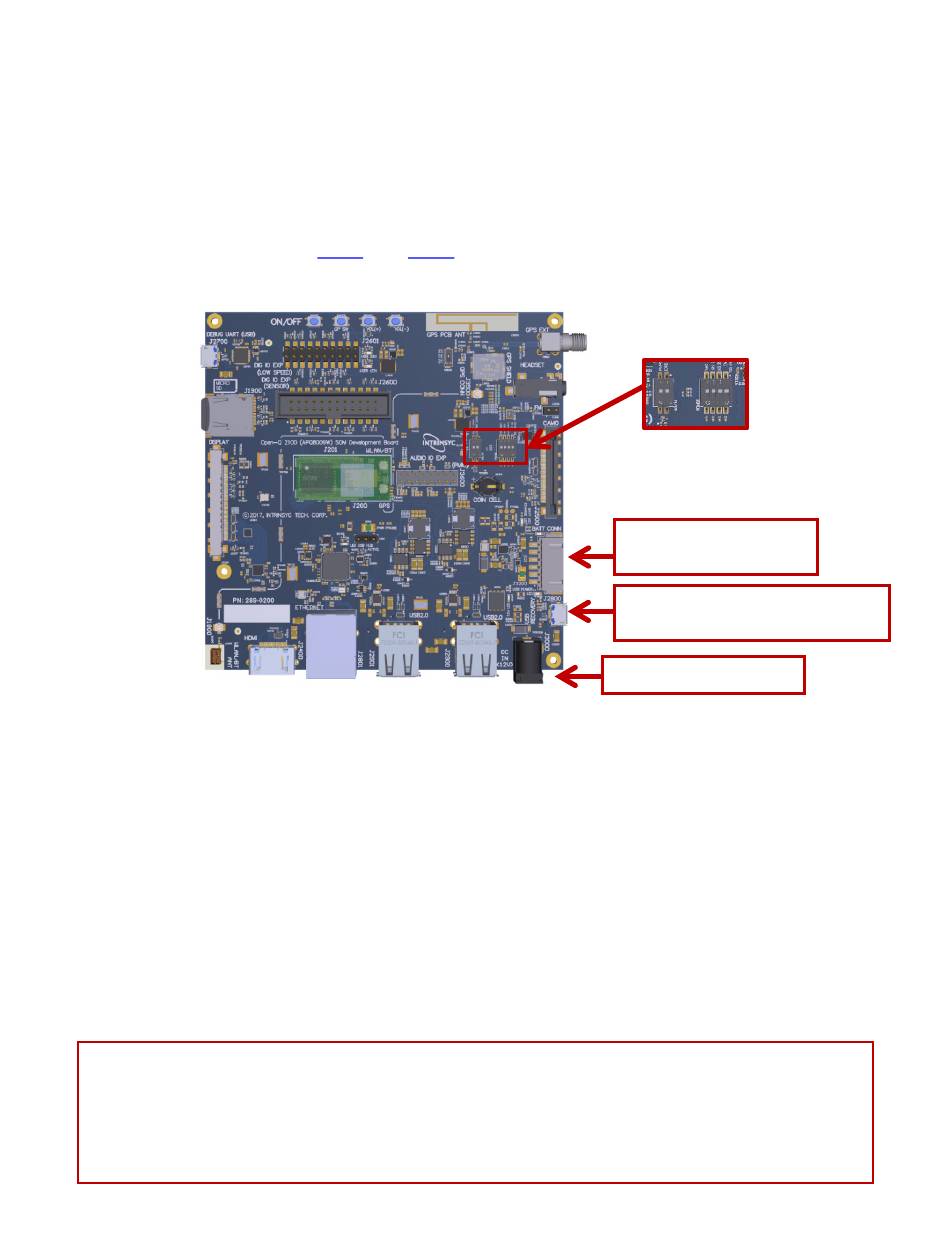

Figure 2 Cable connection and DIP switches on the Open-Q 2100 Dev kit
3.6.2 Powering up the Open-Q 2100 Development Kit
To power-up the board, perform the following steps below:
1. At a static-safe workstation, remove the development kit board carefully from the anti-
static bag.
2. Connect the HDMI output from the development kit to a display.
3. Connect the Power Adapter to the 12V DC Jack and then press and hold the power
button until you see the Intrinsyc logo appear on the display (~3 seconds).
4. Plug in a USB mouse to navigate the UI on the HDMI display.
5. If connecting the "Recovery USB" port to a PC for ADB access, make sure to connect
this only after the 12V power adapter is connected. Also note that when using the
Recovery USB port, the host USB ports and Ethernet port are disabled.
WARNING!
The above steps should be followed in exact sequence when battery is not
connected to the Dev Kit. Failing to do so prevents system from booting. If a
battery is not connected, the user has to always plug in the 12V power source
before the USB ADB cable is plugged in.
3.9.1
and
3.9.2
for other DIP switch settings. Cable connections
12
Copyright Intrinsyc Technologies Corporation
J3200 (Battery
Connector)
J2800, microB USB (recovery/
ADB port)
J3000 (DC IN)
