Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4

The Intrinsyc Display (Open-Q 210x LCD part number: QC-DB-J00005 ) is an additional

display accessory that can be used with the display connector J2400 on the carrier board.

Please use 51position flex cable from JAE (JF08 series) to connect display board and

carrier board. This board allows users to interface with the development kit via the LCD that

comes preinstalled on the display board. The following figure illustrates the interfacing

connectors on the display board.

Note: The display board comes as an additional add-on to the Open-Q 2100 Development Kit. To

purchase this, please visit

http://shop.intrinsyc.com

or contact Intrinsyc at

sales@intrinsyc.com

for

details.

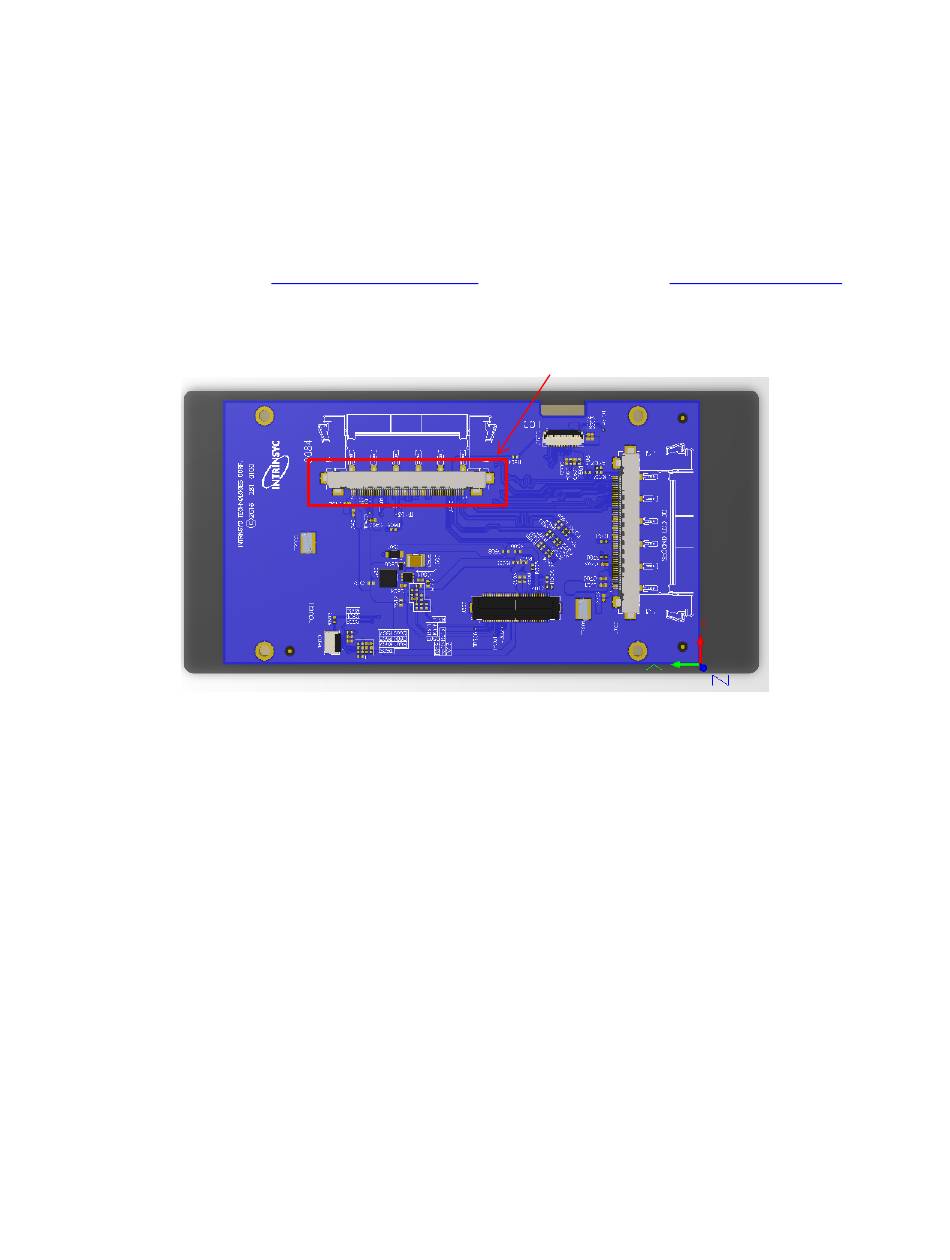

J400, Display connection to the carrier board

Figure 21 Display Board
