Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4

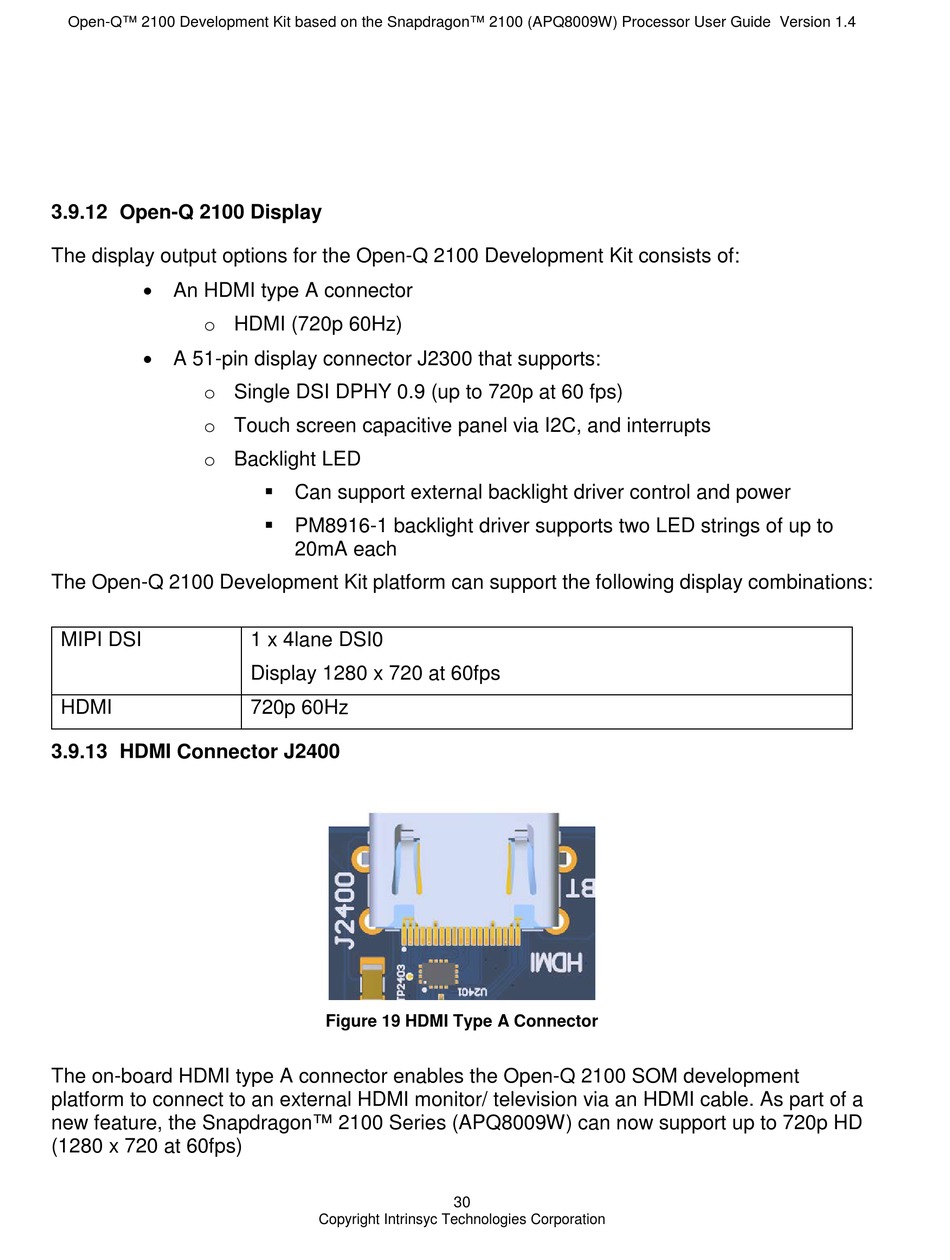

3.9.12 Open-Q 2100 Display

The display output options for the Open-Q 2100 Development Kit consists of:
• An HDMI type A connector
o HDMI (720p 60Hz)
• A 51-pin display connector J2300 that supports:
o Single DSI DPHY 0.9 (up to 720p at 60 fps)
o Touch screen capacitive panel via I2C, and interrupts
o Backlight LED
The Open-Q 2100 Development Kit platform can support the following display combinations:
MIPI DSI
HDMI

3.9.13 HDMI Connector J2400

The on-board HDMI type A connector enables the Open-Q 2100 SOM development
platform to connect to an external HDMI monitor/ television via an HDMI cable. As part of a
new feature, the Snapdragon™ 2100 Series (APQ8009W) can now support up to 720p HD
(1280 x 720 at 60fps)
 Can support external backlight driver control and power
 PM8916-1 backlight driver supports two LED strings of up to
20mA each
1 x 4lane DSI0
Display 1280 x 720 at 60fps
720p 60Hz
Figure 19 HDMI Type A Connector
