3.9.14.1 LCD display panel
The LCD panel comes preinstalled on the Intrinsyc Open-Q display adaptor board (P/N#
QC-DB-J00005). Below are the Panel specifications:
• Resolution: 480x854
• LCD Type: IPS
• PCAP touch panel with cover glass
• No of Lanes: 1 x 2 lane MIPI DSI interface via Display Board.
• Diagonal Length: 4.5"
• Contact
sales@intrinsyc.com
Note: The display above when mounted on the Intrinsyc Open-Q Display Adapter is meant to work with the
carrier board. Altering the use of this LCD panel is not recommended.

3.9.15 Camera Connector J2500

The Open-Q 2100 Development Kit supports one 2-lane MIPI CSI camera interfaces via a
JAE 41-pin connector.
The following are some features of the camera connectors:
• 1 x 2 lane MIPI CSI signals
• I2C control (CCI0)
• Camera CSI connector is on the carrier board edge
• Self-regulated camera modules can be powered with 3.3V power (SBC_VREG_3P3)
• Uses JAE FI-RE41S-VF connector for exposing MIPI, CLK, GPIOs and Power rails.
• Please use JAE FI-RE41S-HF and corresponding cable to mate with the camera
connectors on the carrier board

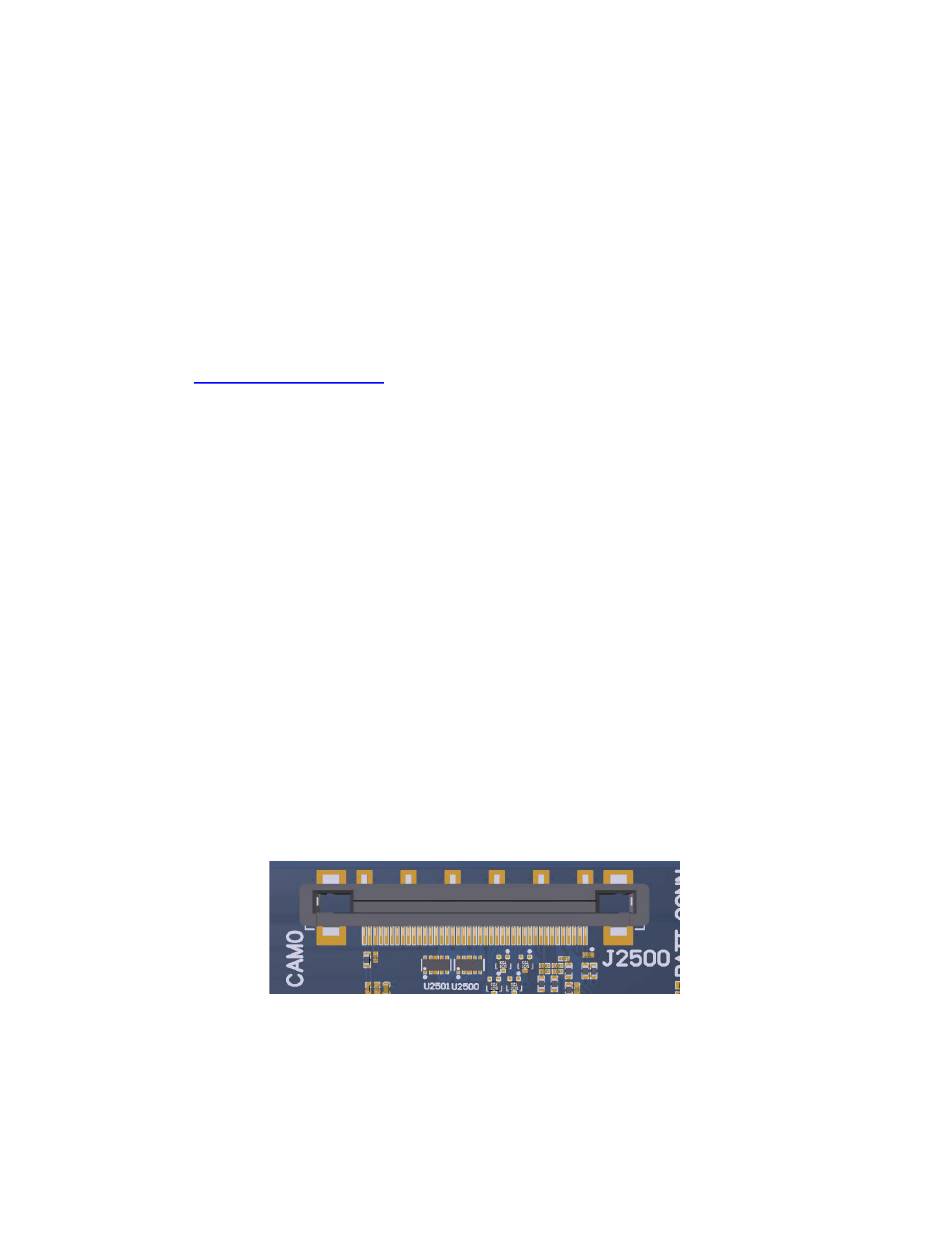

The figure above shows the MIPI CAM0 (J2500) connector.
The table below outlines the pin outs of the connector
for more information
Figure 23 J2500 Camera Connector
34
Copyright Intrinsyc Technologies Corporation
