Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4

Note: A 41-pin cable assembly from JAE Electronics (part number JF08R0R041020MA)

can be used to connect camera board and carrier camera connector.

3.9.16 USB 2.0 Client Port J2800

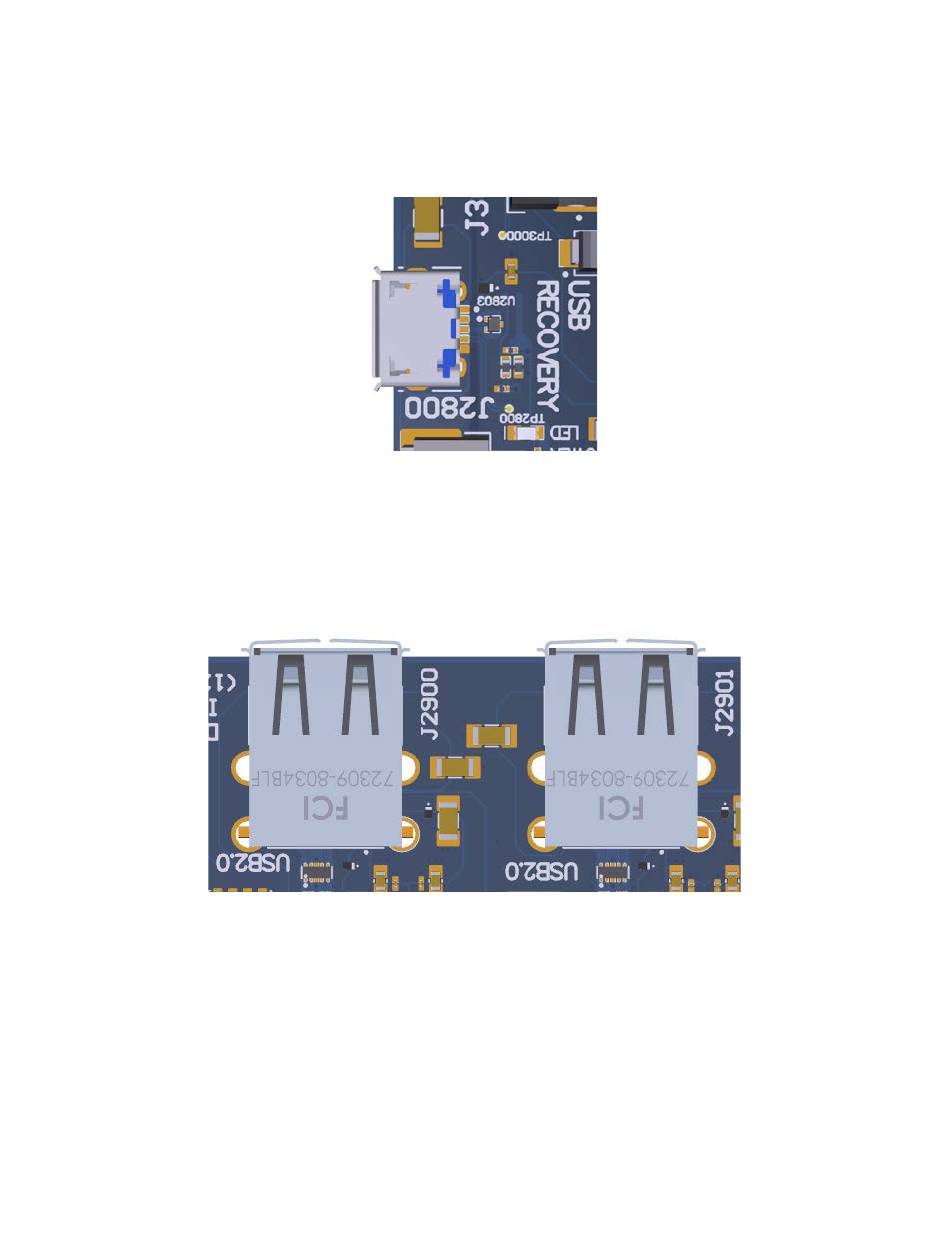

Figure 24 J2800 USB2.0 for ADB

J2800 allows the development kit to communicate with a host PC using the Android Debug Bridge

(ADB). This port is a client mode port only. This port is also used for charging battery.

Figure 25 J2900 and J2901 USB2.0 Host Ports

J2900 and J2901 allow the development kit to communicate as a High-speed host. These are dual

stacked USB2.0 Type-A connectors. Make sure USB client port (J2800) is not in use when USB 2.0

host interface is active. The USB host ports/ Ethernet and USB client port are mutually exclusive.
