Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4

3.9.6 Debug Serial UART over USB J2700

The UART connection used on the Open-Q 2100 SOM is a USB micro B connector
(J2700). This debug UART is available over USB via the FTDI FT232RQ chip on the carrier
board. To get the serial terminal working with a PC, user needs to ensure that the
appropriate FTDI drivers are installed.

3.9.7 Sensor IO Expansion Header J2600

Pin 1.
The sensor expansion header J2600 allows for a 24-pin connection to an optional sensor
board. If user application does not require a sensor, then this header can be used for other
applications that require I2C or GPIO input and output connections.
Following is the pin breakout for sensor expansion header J2600.
Description
BLSP1 BIT1 GPIO_6_BLSP1_BIT1_SN
I2C SDA S_I2C_SDA

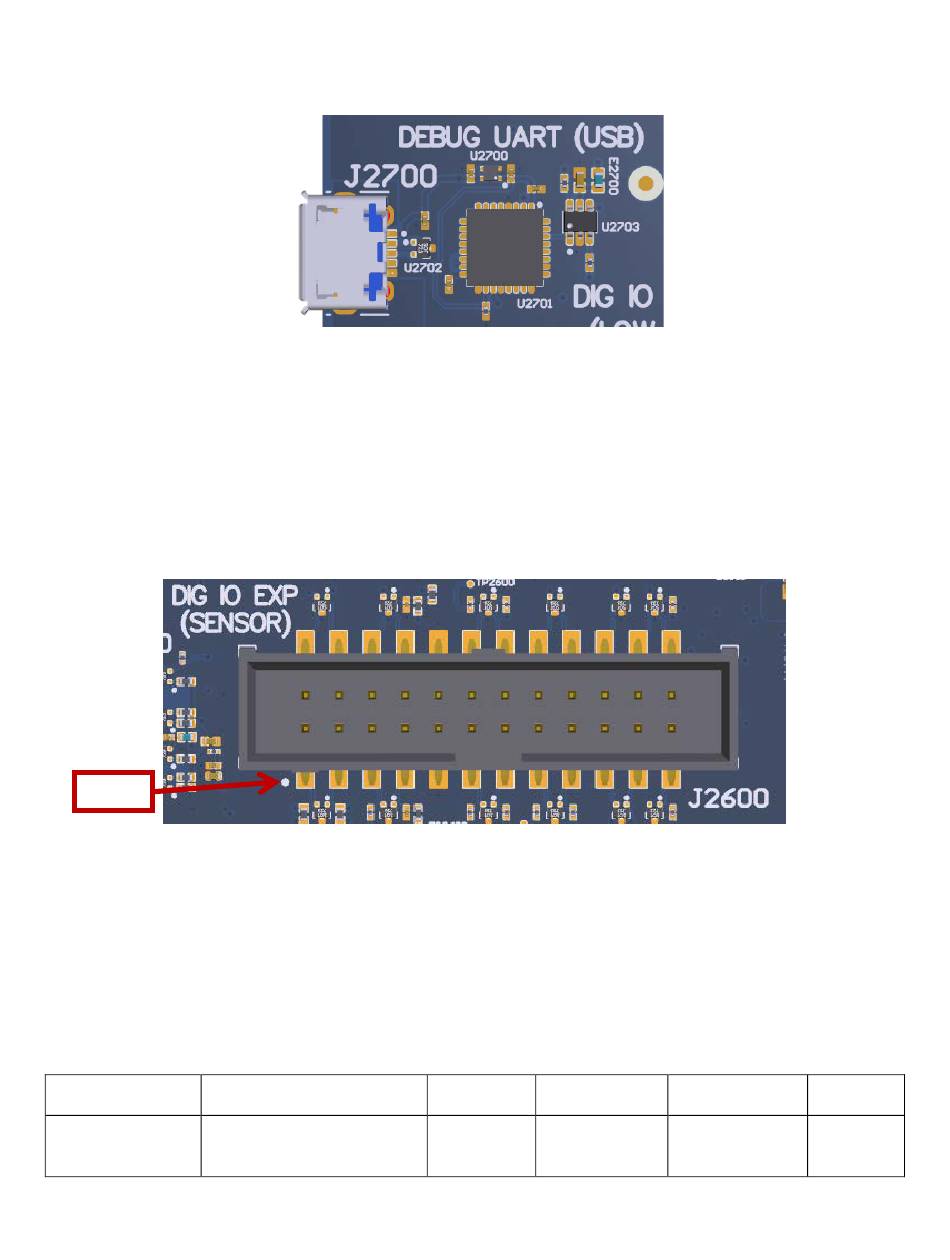

Figure 13 J2700 Debug UART over USB
Figure 14 J2600 Sensor Expansion Header
Table 3.9-6 Sensor Expansion Header J2600 Pin out
Signal
J2600[1]
Copyright Intrinsyc Technologies Corporation
Pin NO Description
Accelerometer
interrupt-1
input to
25
Signal Pin
Number
GPIO_96_ACC J2600[2]
1_INT1_N
