3.9.1 Dip switch S3400 Configuration Options

There is a DIP switch S3400 on the top side of the Open-Q 2100 SOM carrier board. The 4-
bit switch allows the user to control the system configuration. Table 3.9-2 below outlines the
pin outs and connections of this DIP switches.
Function
DSI/HDMI SELECT
CHARGE EN
USER SW1
USER SW2

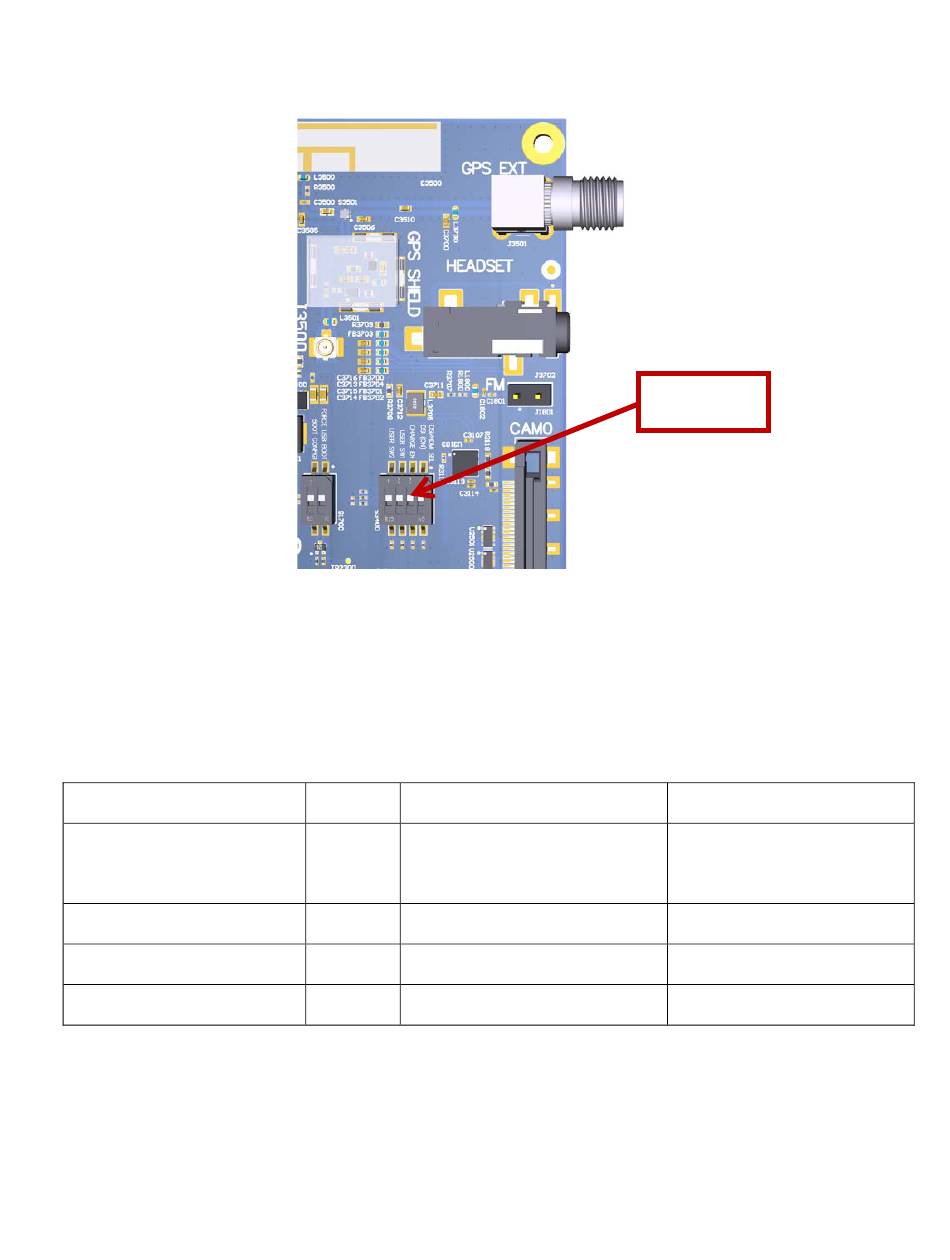

Figure 8 S3400 DIP switch
Table 3.9-2 Dip Switch HW / SW configuration
DIP
Switch
S3400-1 Toggles between DSI output
and HDMI output mode.
Enables DSI output when DIP
switch is turned ON
S3400-2 Enables battery charging
S3400-3 User configurable general-
purpose switch
S3400-4 User configurable general-
purpose switch
19
Copyright Intrinsyc Technologies Corporation
S3400 DIP
Switch
Description Notes
Default out of the box
configuration is OFF which is
the HDMI output mode
Default out of the box
configuration is OFF
Default out of the box
configuration is OFF
Default out of the box
configuration is OFF
