Open-Q™ 2100 Development Kit based on the Snapdragon™ 2100 (APQ8009W) Processor User Guide Version 1.4
Connecting the Display Board to the Development Kit
This configuration allows the user to use the LCD display that comes with the display
adaptor board. As shown in the picture below, the MIPI DSI0 lines, which come from the
51-pin JF08 connector, directly connects to the LCD panel via flex cable (part number:
JF08R0R051020MA). See the section below for more details on this LCD panel. It is
important to note that connector J400 on the display board needs to connect to J2300 on
the carrier board for this configuration to work.
J400
51 pin
flex cable
J2300
Display Board
Carrier board

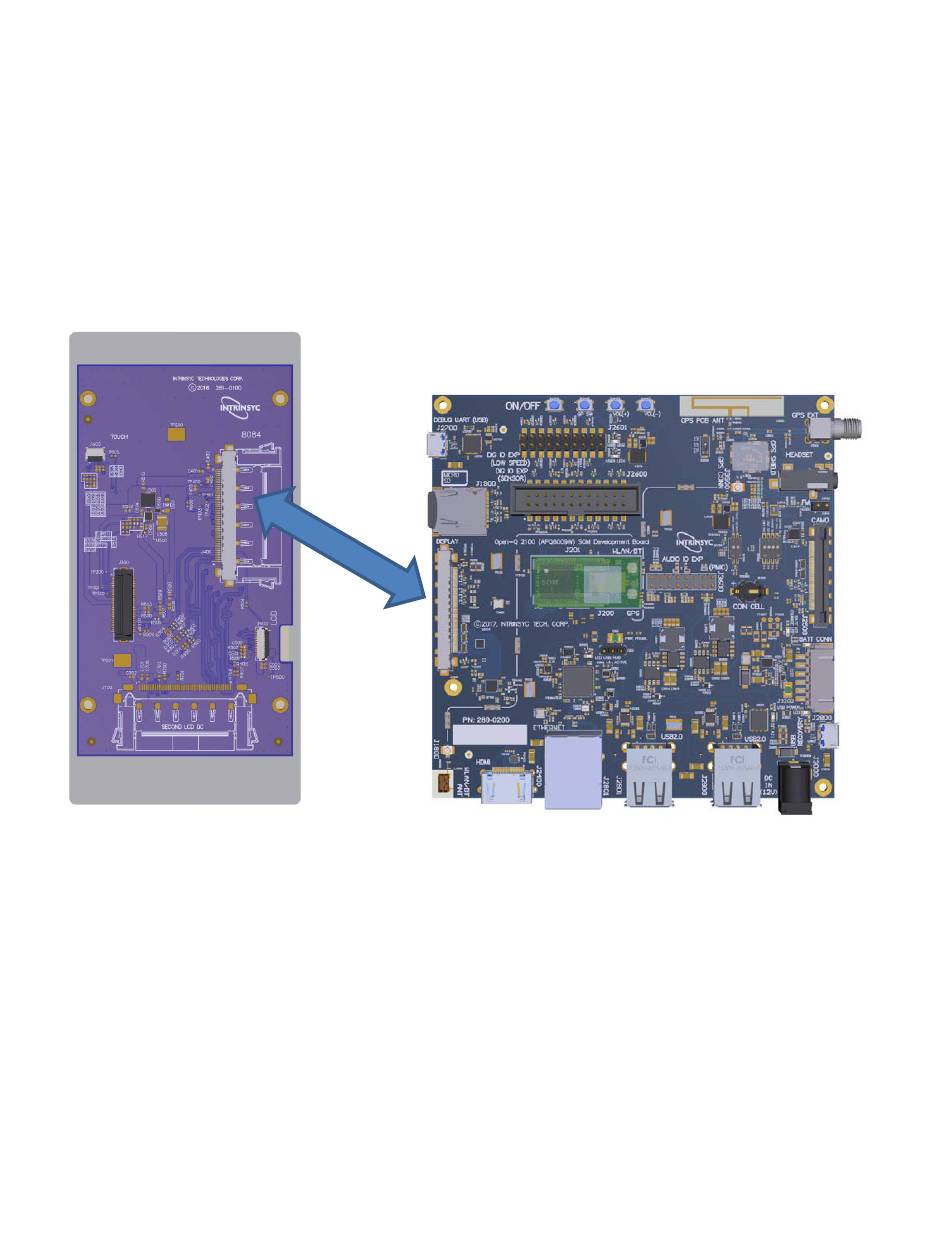

Figure 22 Display Board Default Configuration
