7
Living
7.6.1
Moving the table in the
direction of travel:
Extending:
Reducing size:
64
7.6

Tables

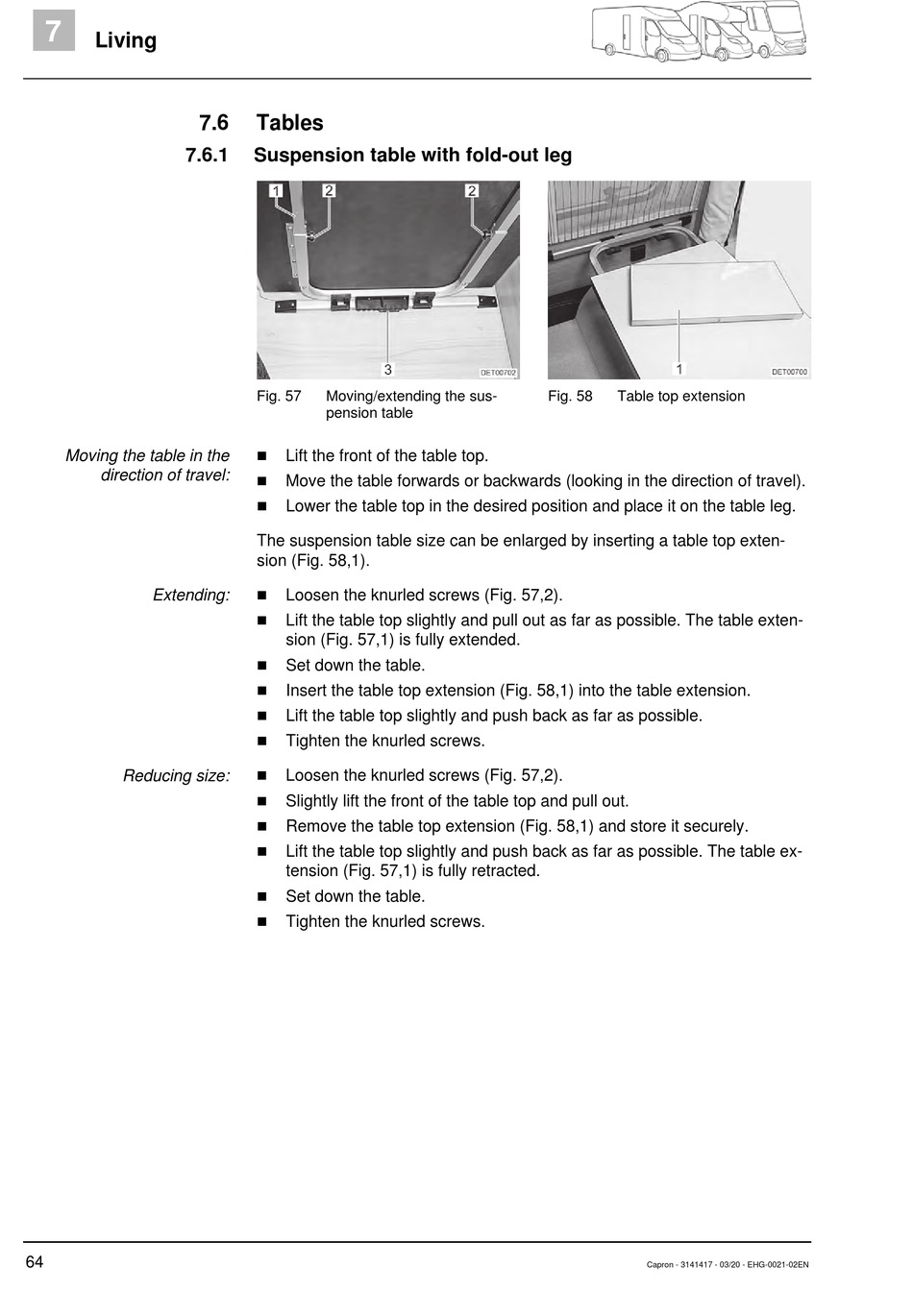

Suspension table with fold-out leg

Fig. 57 Moving/extending the sus-
pension table

Lift the front of the table top.

Move the table forwards or backwards (looking in the direction of travel).

Lower the table top in the desired position and place it on the table leg.
The suspension table size can be enlarged by inserting a table top exten-
sion (Fig. 58,1).

Loosen the knurled screws (Fig. 57,2).

Lift the table top slightly and pull out as far as possible. The table exten-
sion (Fig. 57,1) is fully extended.

Set down the table.

Insert the table top extension (Fig. 58,1) into the table extension.

Lift the table top slightly and push back as far as possible.

Tighten the knurled screws.

Loosen the knurled screws (Fig. 57,2).

Slightly lift the front of the table top and pull out.

Remove the table top extension (Fig. 58,1) and store it securely.

Lift the table top slightly and push back as far as possible. The table ex-
tension (Fig. 57,1) is fully retracted.

Set down the table.

Tighten the knurled screws.
Fig. 58 Table top extension
Capron - 3141417 - 03/20 - EHG-0021-02EN
