5.2 Local Control Panel Operation

Status
799 RPM
1
Auto Remote Ramping
2
Quick
Status
Menu
3
4
On
5
Warn.
6
Alarm
7
Hand
Off
On
8 9

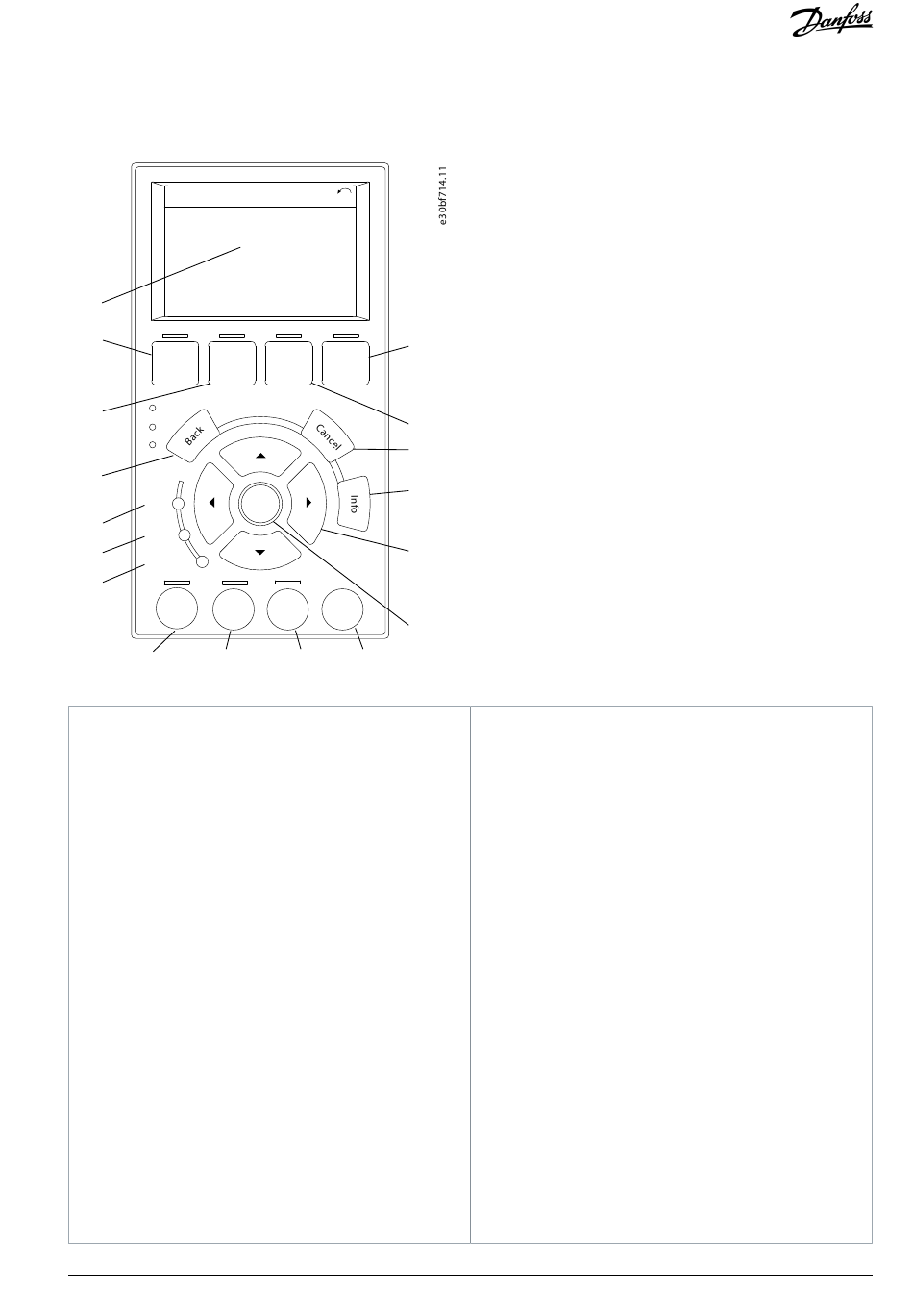

Illustration 9: Graphical Local Control Panel (GLCP)
1 The information shown in the display area depends
on the selected function or menu (in this case Quick
Menu Q3-13 Display Settings).
2 [Status] shows operational status.
3 [Quick Menu] allows access to programming param-
eters for initial set-up instructions and many de-
tailed application instructions.
4 [Back] reverts to the previous step or list in the menu
structure.
5 A green indicator light indicates that power is on.
6 A yellow indicator light comes on when a warning is
active. A text appears in the display area identifying
the problem.
7 A red flashing indicator light indicates a fault condi-
tion, and an alarm text is shown.
8 [Hand On] puts the drive in local control mode, so
that it responds to the LCP.
• An external stop signal by control input or serial
communication overrides local [Hand On] key.
9 [Off] stops the motor but does not remove power to
the drive.
Danfoss A/S © 2021.01
1(1)
7.83 A 36.4 kW
0.000
53.2 %
17
Main Alarm
Menu Log
16
15
14
OK
13
Auto
Reset
On
12
10 11
10 [Auto On] puts the system in remote operational
mode.
• Responds to an external start command by con-
trol terminals or serial communication.
11 [Reset] resets the drive manually after a fault has
been cleared.
12 [OK] gives access to parameter groups or enables a
selection.
13 [▵][▹] [▿] [◃] enables moving between items in the
menu.
14 [Info] shows a definition of the function being
shown.
15 [Cancel] cancels the last change or command as
long as the display mode is not changed.
16 [Main Menu] gives access to all programming pa-
rameters.
17 [Alarm Log] shows a list of current warnings, the last
10 alarms, and the maintenance log.
