• Keep the ground wire connections as short as possible.
• Follow motor manufacturer wiring requirements.
• Minimum cable cross-section for the ground wires: 10 mm
• Separately terminate individual ground wires, both complying with the dimension requirements.
FC 1
PE
FC 1
PE

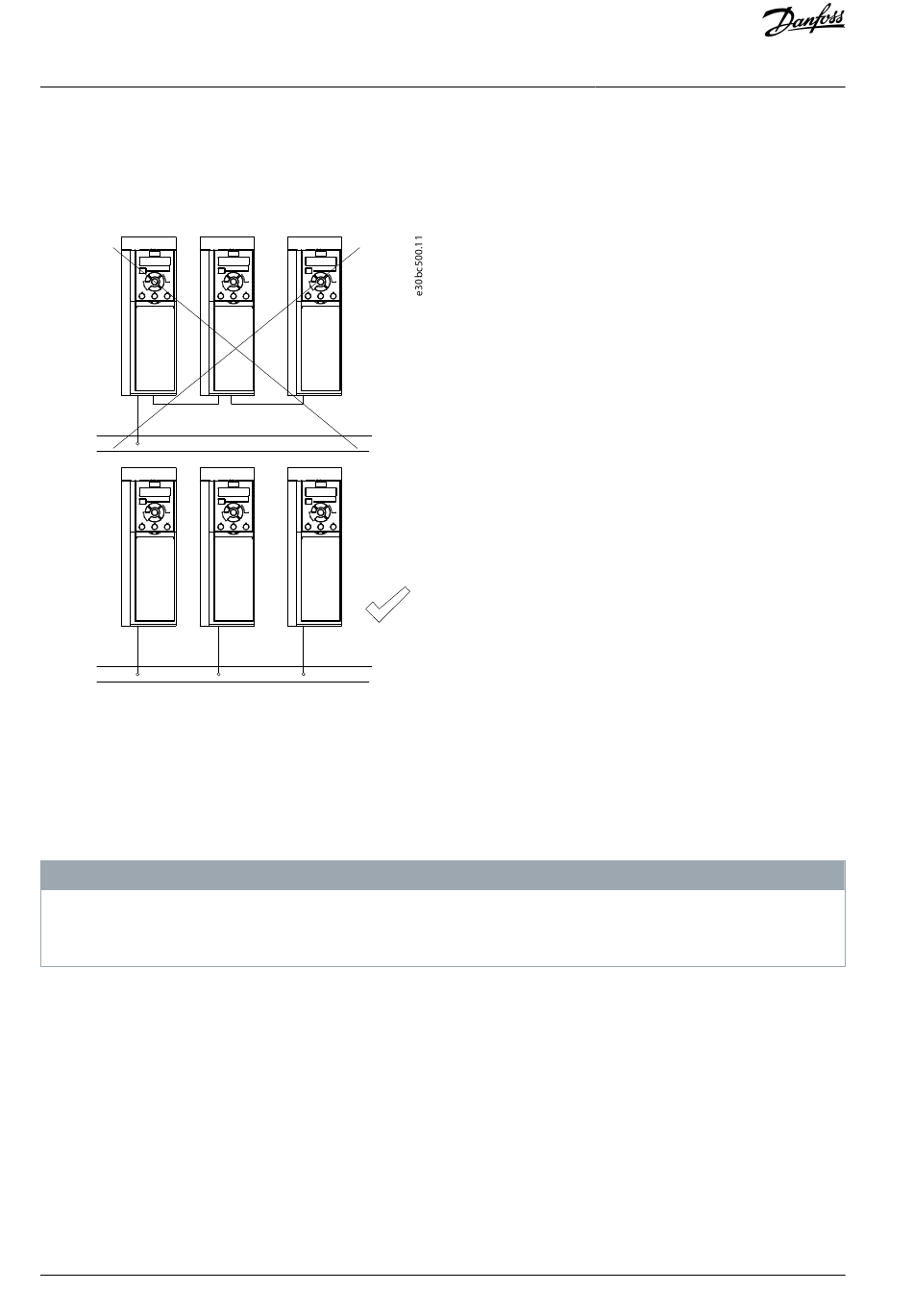

Illustration 5: Grounding Principle
For EMC-compliant installation
• Establish electrical contact between the cable shield and the drive enclosure by using metal cable glands or by using the clamps
provided on the equipment.
• Use high-strand wire to reduce burst transient.
• Do not use pigtails.
POTENTIAL EQUALIZATION
Risk of burst transient when the ground potential between the drive and the control system is different. Install equalizing cables
between the system components. Recommended cable cross-section: 16 mm
16 | Danfoss A/S © 2021.01
FC 2 FC 3
FC 2 FC 3
N O T I C E
2
(7 AWG).
2
(6 AWG).
Electrical Installation
