VLT® AutomationDrive FC 301/FC 302
Operating Guide
•
Clockwise (CW) direction means channel A is 90 electrical degrees before channel B.
•
Counterclockwise (CCW) direction means channel B is 90 electrical degrees before A.
A
B
A
B

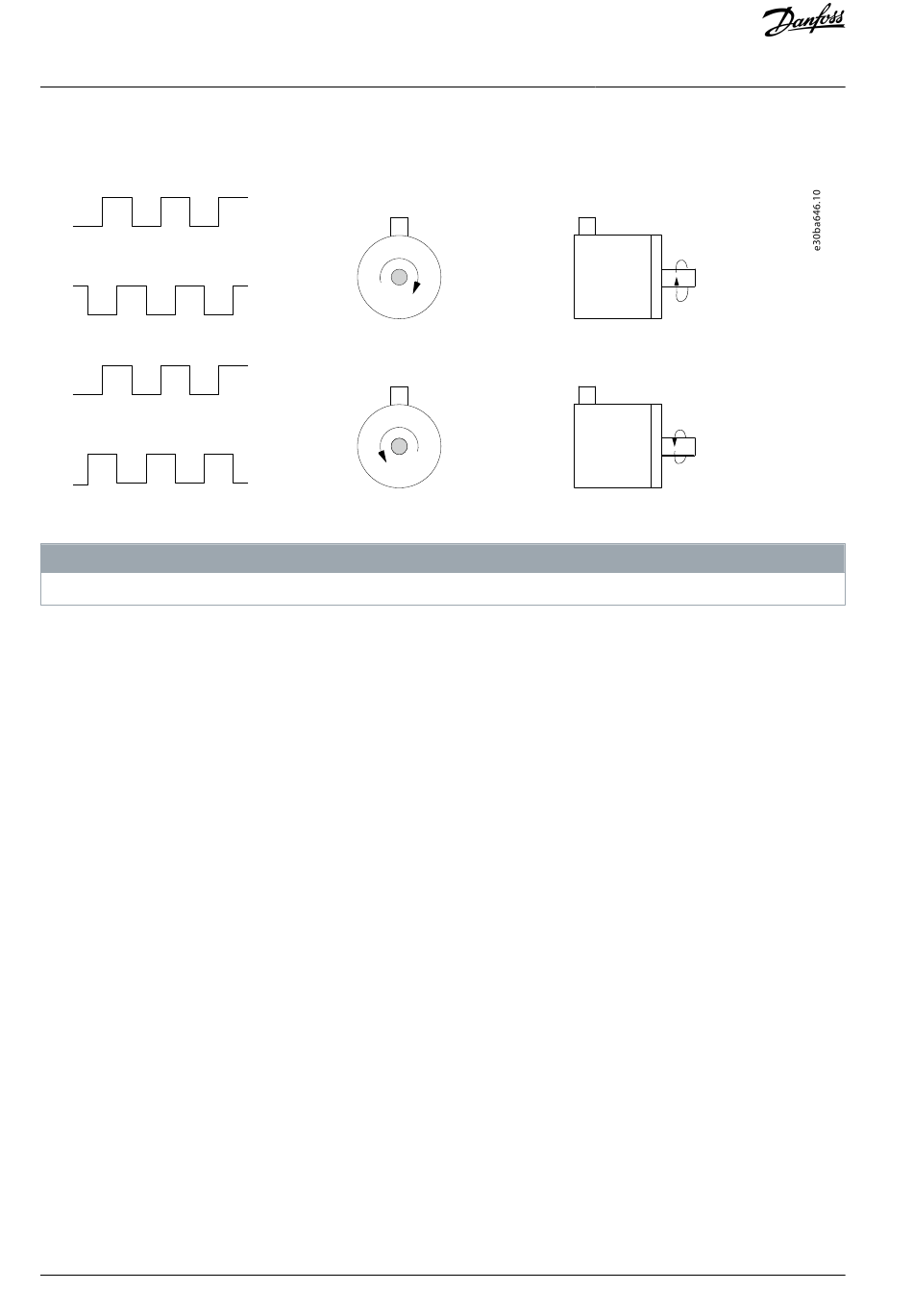

Illustration 15: Determining Encoder Direction
Maximum cable length is 5 m (16 ft.)
40 | Danfoss A/S © 2021.01
1
2
N O T I C E
Basic I/O Configuration
AQ267037727118en-000101 / 130R0300
