Commissioning

5.3 Local Control Panel Operation

5.3.1 Local Control Panel
The local control panel (LCP) is the combined display and
keypad on the front of the unit.
The LCP has several user functions:
•
Start, stop, and control speed when in local
control
•
Display operational data, status, warnings and
5 5
cautions
•
Programming frequency converter functions
•
Manually reset the frequency converter after a
fault when auto-reset is inactive
NOTICE
For commissioning via PC, install MCT 10 Set-up
Software. The software is available for download (basic
version) or for ordering (advanced version, order number
130B1000). For more information and downloads, see
www.danfoss.com/BusinessAreas/DrivesSolutions/Software
+MCT10/MCT10+Downloads.htm.

5.3.2 LCP Layout

The LCP is divided into 4 functional groups (see
Illustration 5.1).
A. Display area
B. Display menu keys
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and reset
22
Operating Instructions
A. Display Area
The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or
an external 24 V DC supply.
The information displayed on the LCP can be customised
for user application. Select options in the Quick Menu
Q3-13 Display Settings.
B. Display Menu Keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Callout
Danfoss A/S © Rev. 2014-02-06 All rights reserved.
1
Status
0.0 % 0.00 A
0.0Hz
2
A
2605 kWh
4
O Remote Stop
6
Quick
Status
B
Menu
7
10 C
On OK
15
Warn.
16
Alarm
17
Hand
D
O
on
18 19

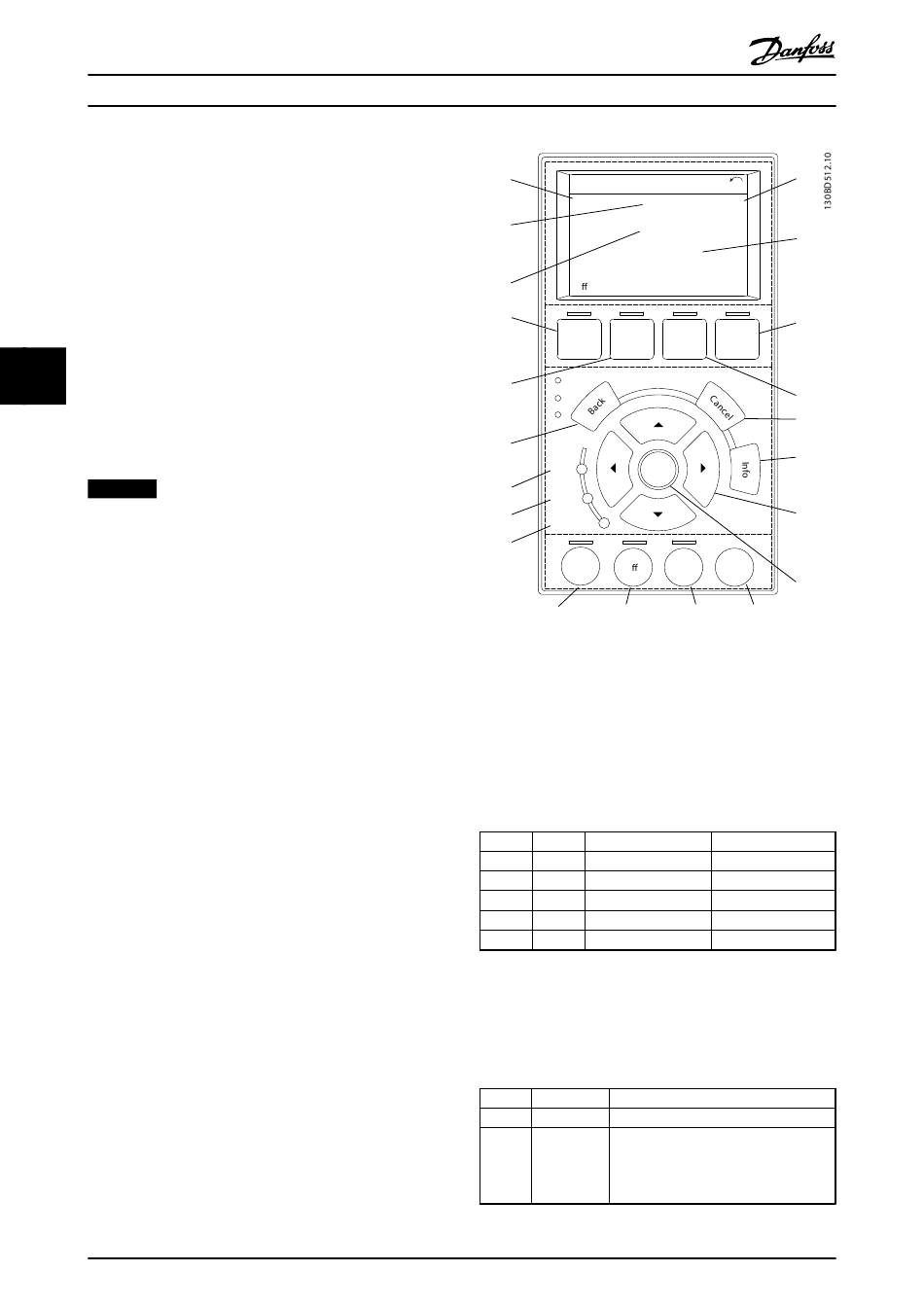

Illustration 5.1 Local Control Panel (LCP)
Callout Display Parameter number
1 1.1 0-20
2 1.2 0-21
3 1.3 0-22
4 2 0-23
5 3 0-24
Table 5.1 Legend to Illustration 5.1, Display Area
Key Function
6 Status Shows operational information.
7 Quick Menu Allows access to programming
parameters for initial set-up instructions
and many detailed application
instructions.
3
1(1)
0.00 kW
5
9
Main Alarm
Menu Log
8
11
12
13
Auto
Reset
on
14
20 21
Default setting
Reference %
Motor current
Power [kW]
Frequency
kWh counter
