Commissioning

5 Commissioning

5.1 Applying Power

5.1.1 Turn on Mains Power
Turn on mains power to power up the frequency
converter.
5.1.2 Start-up
Start the frequency converter.
At the first power-up with LCP connected, select the
preferred language. Once selected, this screen does not
appear again in the following power-ups. To change
language at a later stage, go to 0-01 Language.
Select Language
[ 0 ] English
Setup 1
Illustration 5.1 Select Language

5.2 Local Control Panel Operation

5.2.1 Programming with the Local Control
Panel (LCP)
NOTICE
The frequency converter can also be programmed from a
PC via RS-485 COM port by installing the MCT 10 Set-up
Software. Order this software using code number
130B1000, or download from the Danfoss web site:
www.danfoss.com/BusinessAreas/DrivesSolutions/software-
download
The LCP is divided into 4 functional sections.
A. Alphanumeric display
B. Menu selection
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and indicator lights (LEDs)
MG03L202
Operating Instructions
1
2
3
4
6
10
7
8
9

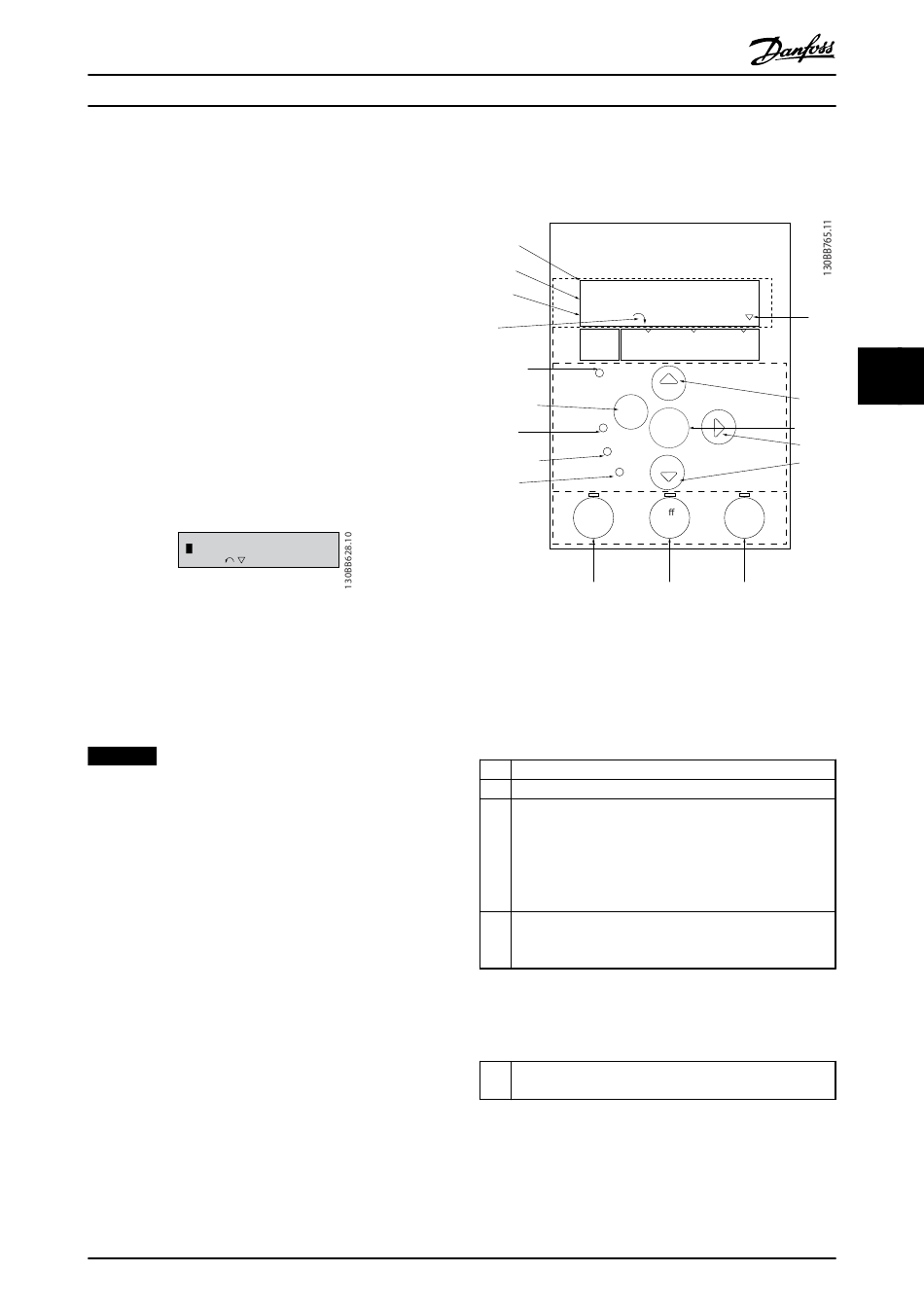

Illustration 5.2 Local Control Panel (LCP)
A. Alphanumeric display
The LCD-display is back-lit with 2 alphanumeric lines. All
data is displayed on the LCP.
Information can be read from the display.
1 Parameter number and name.
2 Parameter value.
3 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When
active and edit set-up differ, both numbers are shown in
the display (Set-up 12). The number flashing, indicates the
edit set-up.
4 Motor direction is shown to the bottom left of the display
– indicated by a small arrow pointing either clockwise or
counterclockwise.
B. Menu key
Use the [Menu] key to select between status, quick menu
or main menu.
5 The triangle indicates if the LCP is in status, quick menu or
main menu.
