3 Mechanical Installation

3.1 Unpacking

3.1.1 Items Supplied

Items supplied vary according to product configuration.
• Make sure that the items supplied and the information on the nameplate correspond to the order confirmation.
• Check the packaging and the drive visually for damage caused by inappropriate handling during shipment. File any claim for
damage with the carrier. Retain damaged parts for clarification.
VLT
R
Automation Drive
1
T/C: FC-302P75KT7P21H2XGCXXXSXXXXAXBXCXXXXDX
2
P/N: 134G6302 S/N: 999999G999
4
55kW / 75 kW; 75kW / 90 kW (NO)
IN: 3x525-690V 50/60Hz 87/86A; 161/145A (NO)
5
OUT: 3x0-Vin 0-590Hz 87/83A; 105/100A (NO)
6
o
Type 1/ IP21 Tamb. 50 C /122 F
7
Danfoss A/S
6340 NordborgDenmark
www.danfoss.com
76 X1 E134261 IND. CONT. EQ.
US LISTED
UL Voltage 525-600 V
R
DANGER
See manual for special condition/mains fuse
voir manual de conditions speclales/fusibles

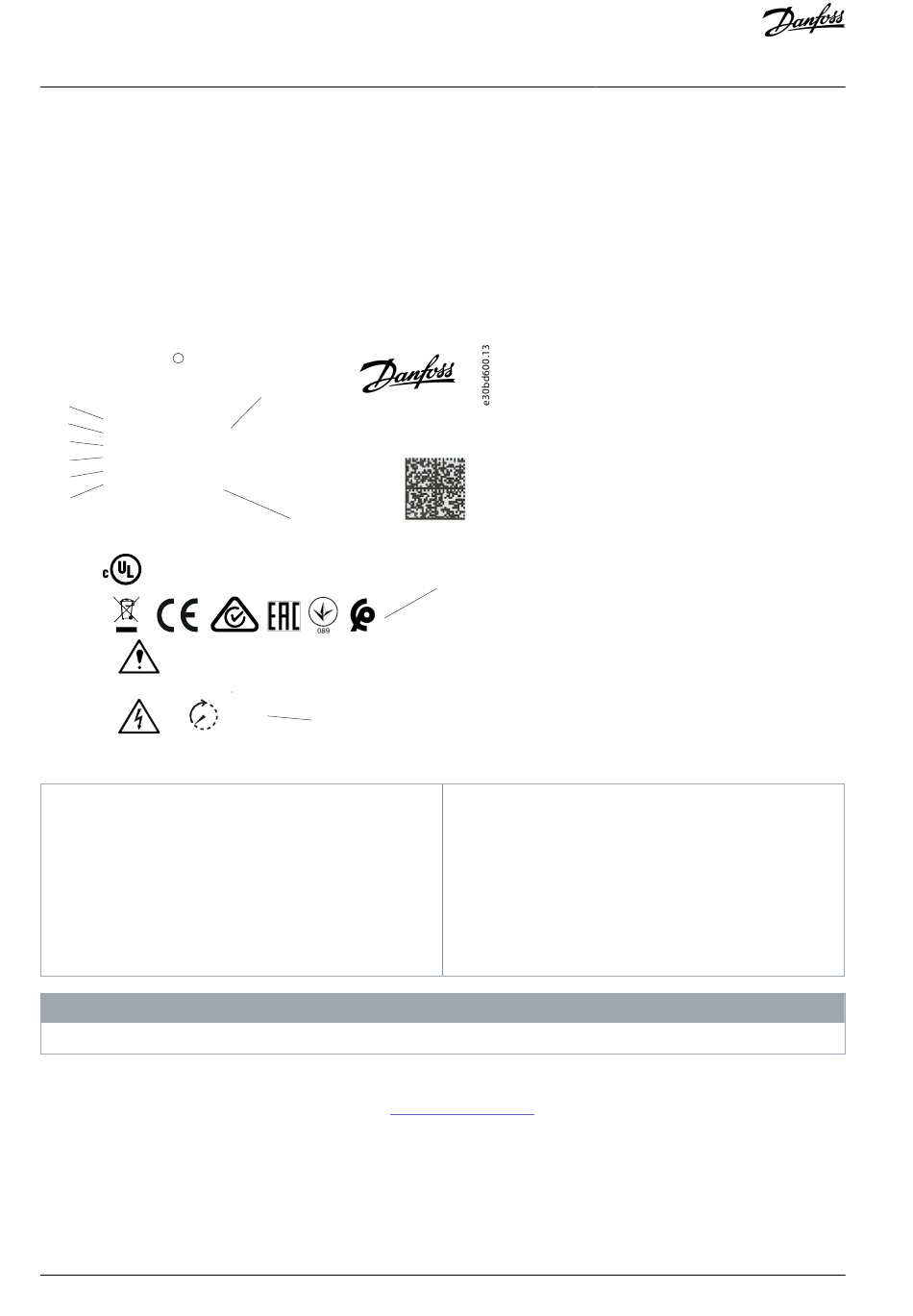

Illustration 2: Product Nameplate (Example)
1 Type code
2 Code number
3 Serial number
4 Power rating
5 Input voltage, frequency, and current (at low/high
voltages)
Do not remove the nameplate from the drive (loss of warranty).

3.1.2 Storage

Ensure that the requirements for storage are fulfilled, see
12 | Danfoss A/S © 2021.01
3
o
8
MADE IN DENMARK
`
15 min.
10
N O T I C E
8.4 Ambient
9
6 Output voltage, frequency, and current (at low/high
voltages)
7 Enclosure size and IP rating
8 Maximum ambient temperature
9 Certifications
10 Discharge time (Warning)
Conditions.
