VLT® AutomationDrive FC 301/FC 302
Operating Guide
Speed
Start/Stop (18)

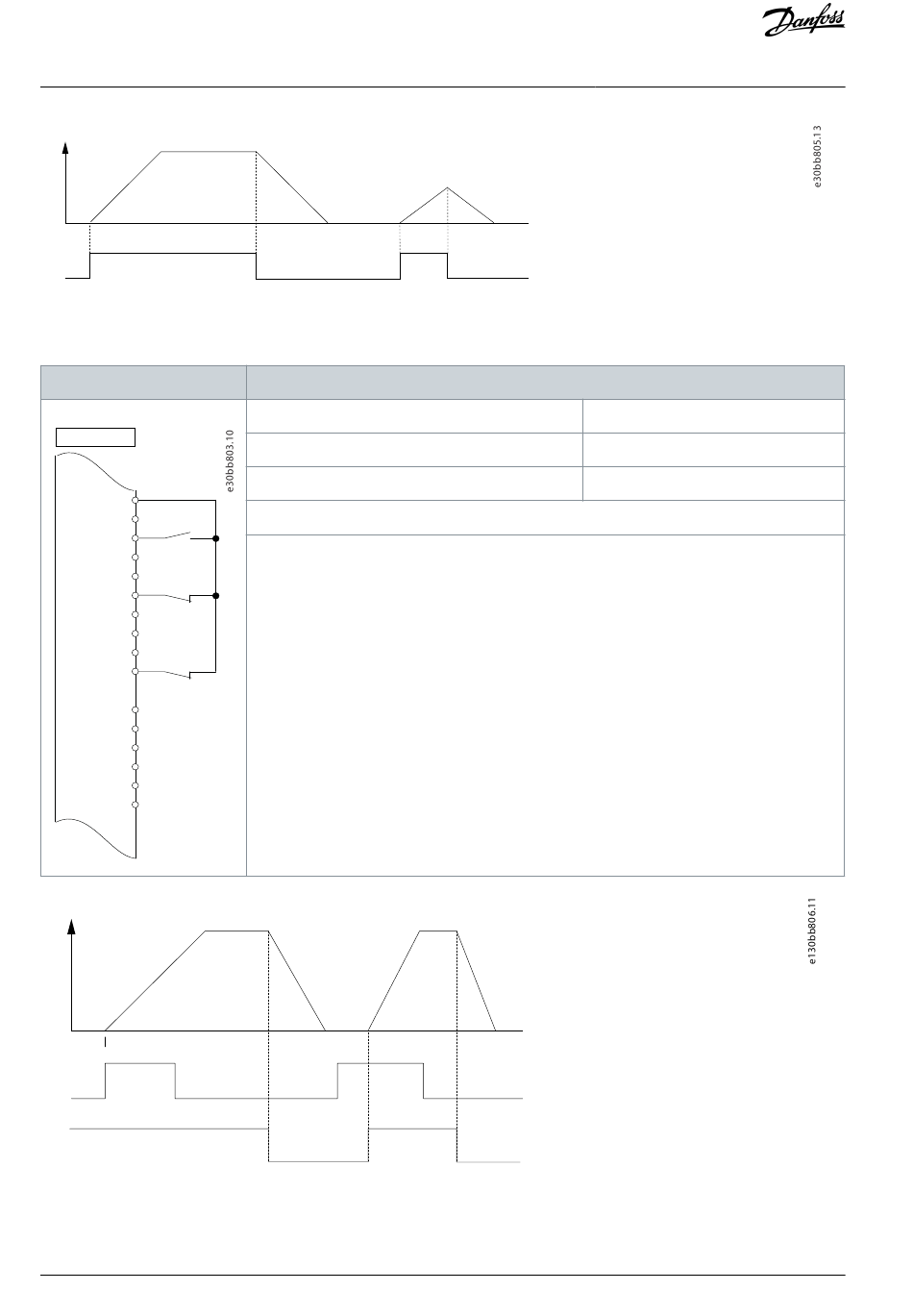

Illustration 12: Start/Stop Command with Safe Torque Off
Table 20: Pulse Start/Stop
Drive
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN
27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V
50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Speed
Latched Start (18)
Stop Inverse (27)
Illustration 13: Latched Start/Stop Inverse
34 | Danfoss A/S © 2021.01
Parameter
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27 Digital Input is set [0] No operation, a jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
Basic I/O Configuration
Setting
[9] Latched Start
[6] Stop Inverse
AQ267037727118en-000101 / 130R0300
