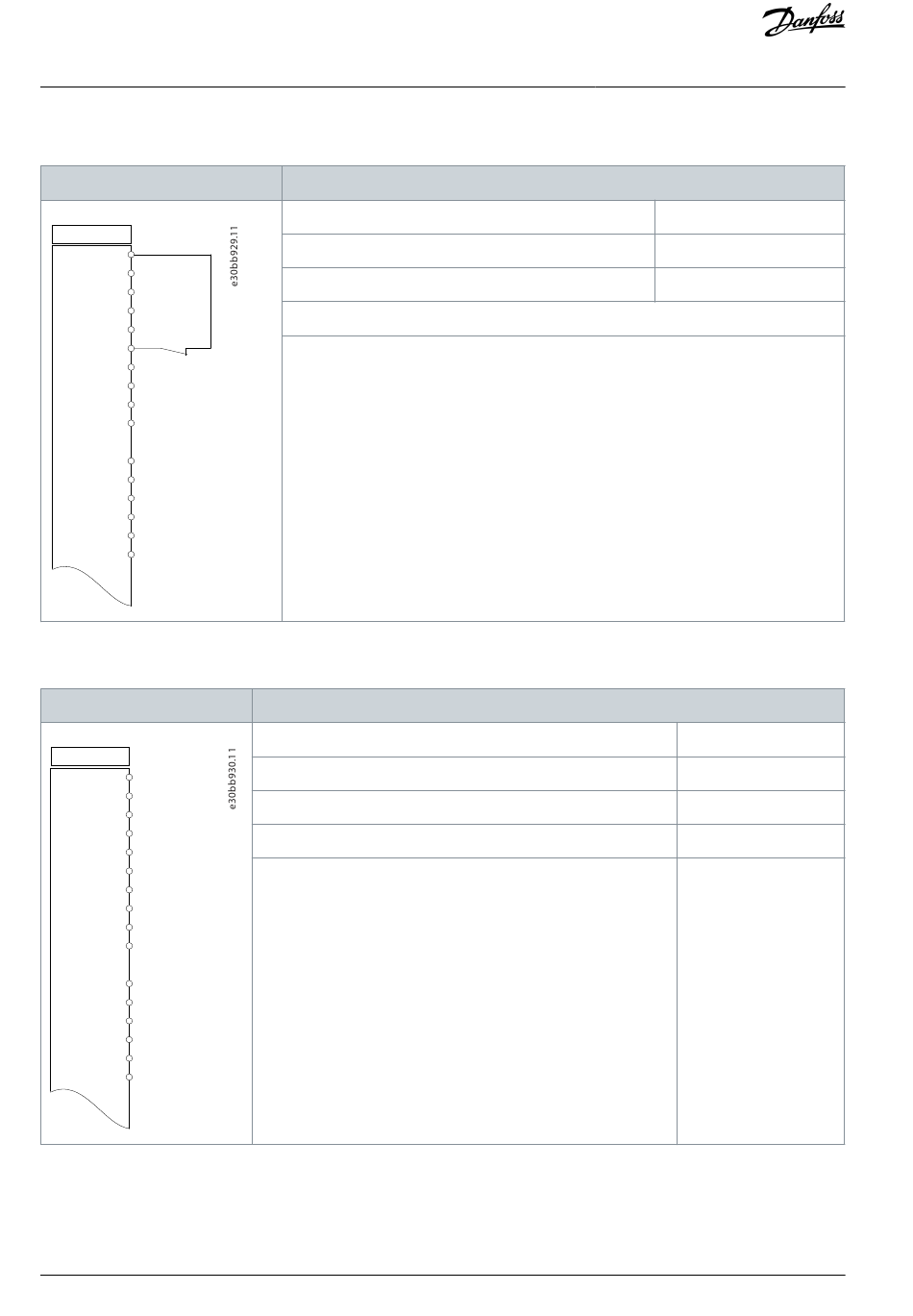

6.1.2 Wiring Configuration for Automatic Motor Adaptation (AMA)
Table 7: Wiring Configuration for AMA with T27 Connected
Drive
+24 V
12
+24 V
13
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
D IN
32
D IN
33
D IN
37
+10 V
50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
6.1.3 Wiring Configuration for Automatic Motor Adaptation without T27
Table 8: AMA without T27 Connected
Drive
+24 V
12
+24 V
13
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
D IN
32
D IN
33
D IN
37
+10 V
50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
26 | Danfoss A/S © 2021.01
Parameters
Function
Parameter 1-29 Automatic Motor Adaptation (AMA)
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments:
Set parameter group 1-2* Motor Data according to motor nameplate.
Parameters
Function
Parameter 1-29 Automatic Motor Adaptation (AMA)
Parameter 5-12 Terminal 27 Digital Input
*=Default value
Notes/comments:
Parameter group 1-2* Motor Data must be set according to motor.
Basic I/O Configuration
Setting
[1] Enable complete AMA
[2]* Coast inverse
Setting
[1] Enable complete AMA
[0] No operation
AQ267037727118en-000101 / 130R0300
