IPC960/IPC962/IPC964-525 Series User's Manual
1.7

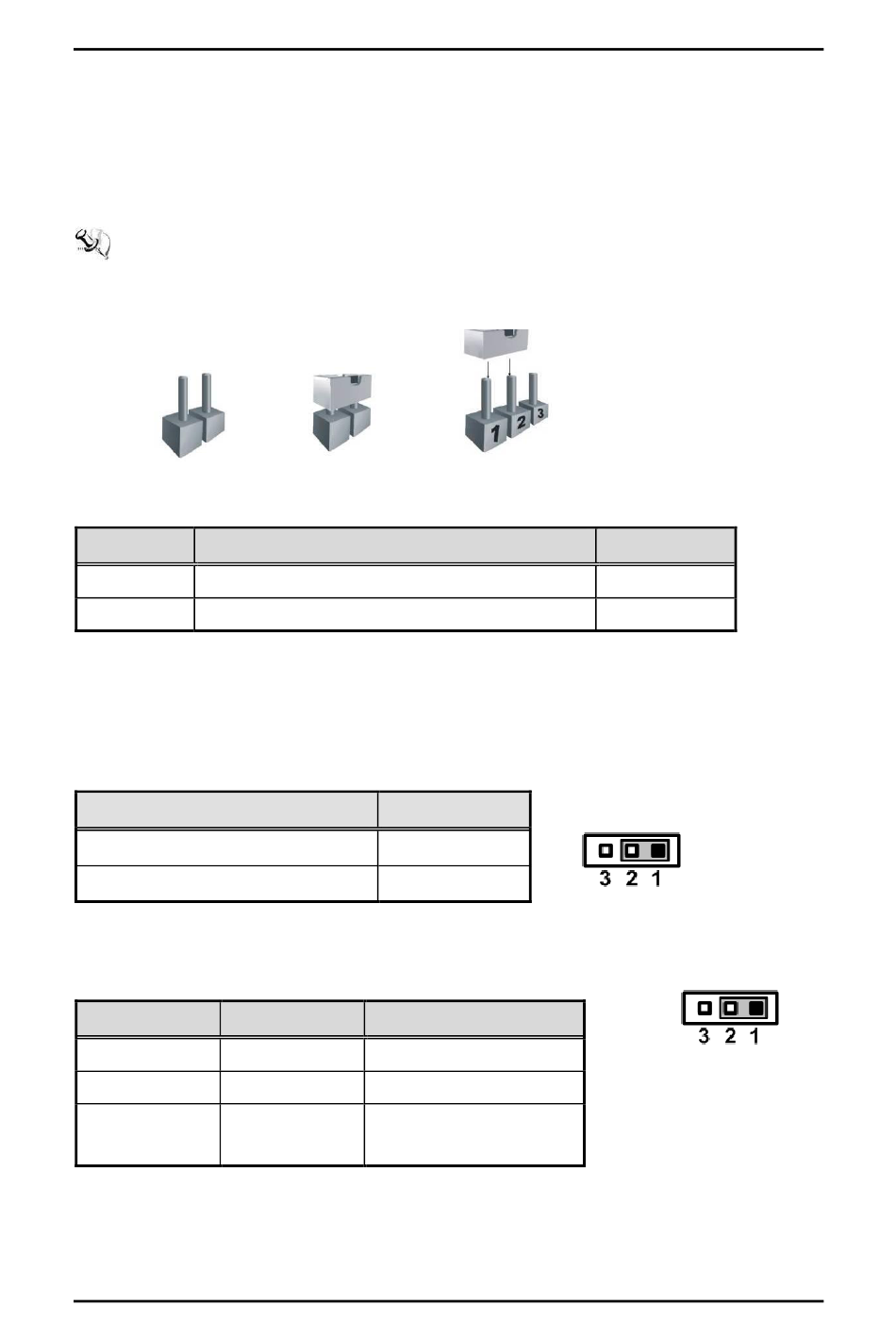

Jumper Settings
Properly configure jumper settings on the SBC87525 to meet your application purpose. Below
you can find a summary table of all jumpers and onboard default settings.
Note: How to setup Jumpers
Illustrations below show that a cap on a jumper is to "close" the jumper, whereas that off a
jumper is to "open" the jumper.
[Open]
Jumper
JP2
Clear RTC : Normal
JP10&JP11
DELAY Function SW
1.7.1
Restore BIOS Optimal Defaults (JP2)
Put jumper clip to pin 2-3 for a few seconds then move it back to pin 1-2. Doing this procedure
can restore BIOS optimal defaults.
Function
Normal operation (Default)
Restore BIOS optimal defaults
1.7.2
DELAY Function SW (JP10&JP11)
JP11
2-3 close
2-3 close
2-3 close
1-2 close
1-2 close
1-2 close
18
[Closed]
Descriptions
Setting
1-2 close
2-3 close
JP10
function
delay 3s power on
delay 6s power on
disable delay function
(default)
[Pin1 -2 Closed]
Short 1-2
Short 1-2
Setting
