IPC960/IPC962/IPC964-525 Series User's Manual
1.8.7

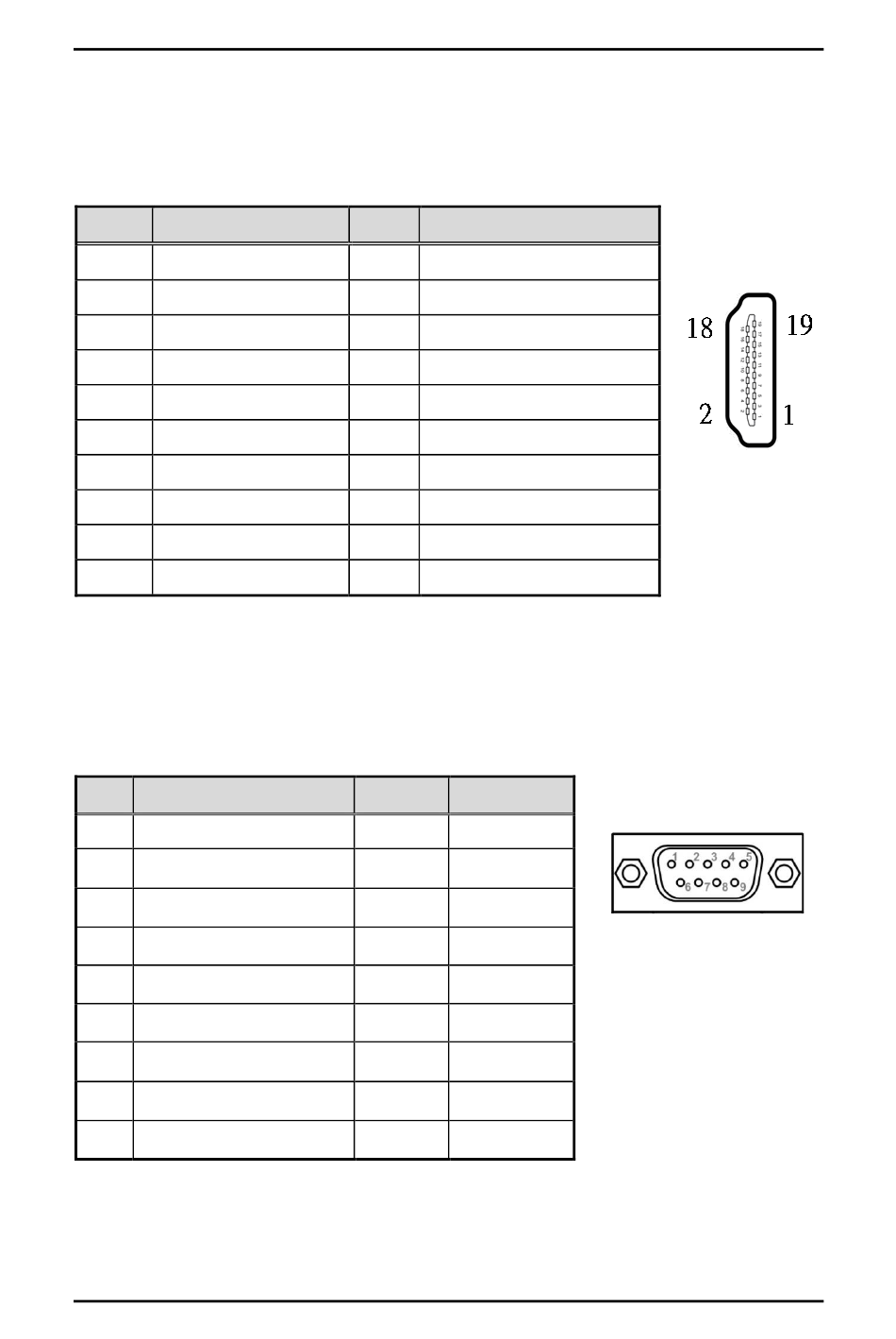

HDMI Connector (CN2)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which
is capable of transmitting high-definition video and high-resolution audio over a
single cable.
Pins Signals
1 HDMI OUT_DATA2+
GND
2
3 HDMI OUT_DATA2-
4
HDMI OUT_DATA1+
5 GND
6
HDMI OUT_DATA1-
7 HDMI OUT_DATA0+
8 GND
9 HDMI OUT_DATA0-
10 HDMI OUT Clock+

1.8.8 COM Port Connector (COM1 )

The system has a serial port: COM1 is RS-232/422/485 port. Please set configuration of the
serial port in the Advanced menu in BIOS.
Pins RS-232
1 DCD, Data Carrier Detect
2 RXD, Receive Data
3 TXD, Transmit Data
4 DTR, Data Terminal Ready
5 GND, Ground
6 DSR, Data Set Ready
7 RTS, Request To Send
8 CTS, Clear To Send
9 RI, Ring Indicator
24
Pins Signals
11 GND
12 HDMI OUT Clock-
13 N.C.
14 N.C.
15 HDMI OUT_SCL
16 HDMI OUT_SDA
17 GND
18 +5V
19 HDMI_HTPLG
RS-422 RS-485
TX- Data-
TX+ Data+
RX+ No use
RX- No use
No use No use
No use No use
No use No use
No use No use
No use No use
Introduction
