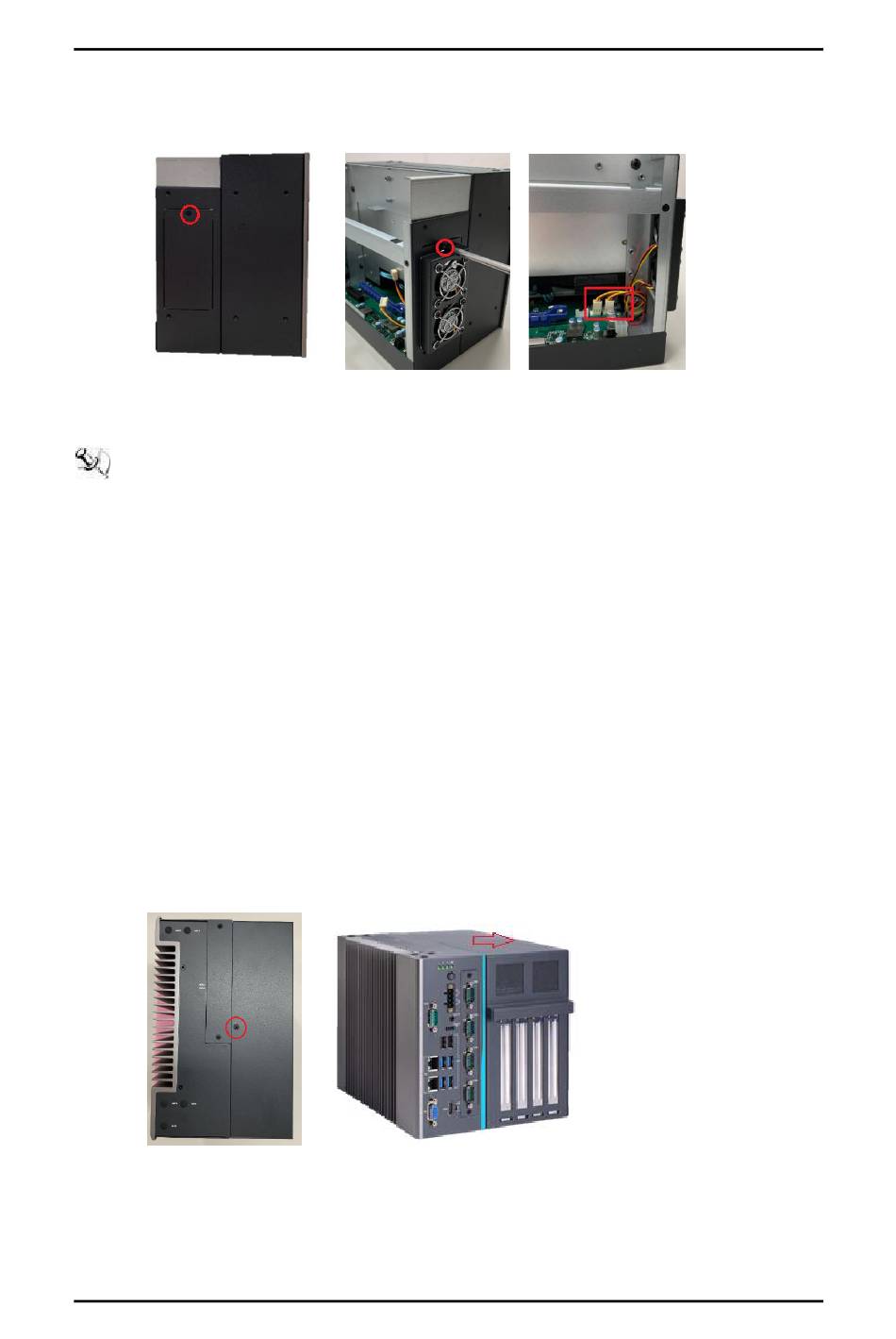

Step 5 Unscrew the bracket, fasten the fan module into the expansion box and plug cable(s)
to connector(s).
Step 6 After installing the fan module, close the system cover back to the chassis and
fasten the screw. Installation is complete.
Note: Reserve at least 25mm space from the rear side for optimal fan air flow.
2.7
Installing PCI or PCIe Card
The IPC962-525-FL/IPC964-525-FL provides two/four PCI or PCIe slots for
expansion. The procedure of installing the fan module and PCI / PCIe expansion
card into system is instructed below.
2.7.1
Installing PCI or PCIe card
Step 1 Turn off the system.
Step 2 Disconnect the power connector.
Step 3 Unscrew the system cover screw and remove the cover from the expansion box.
56
Hardware Installation
