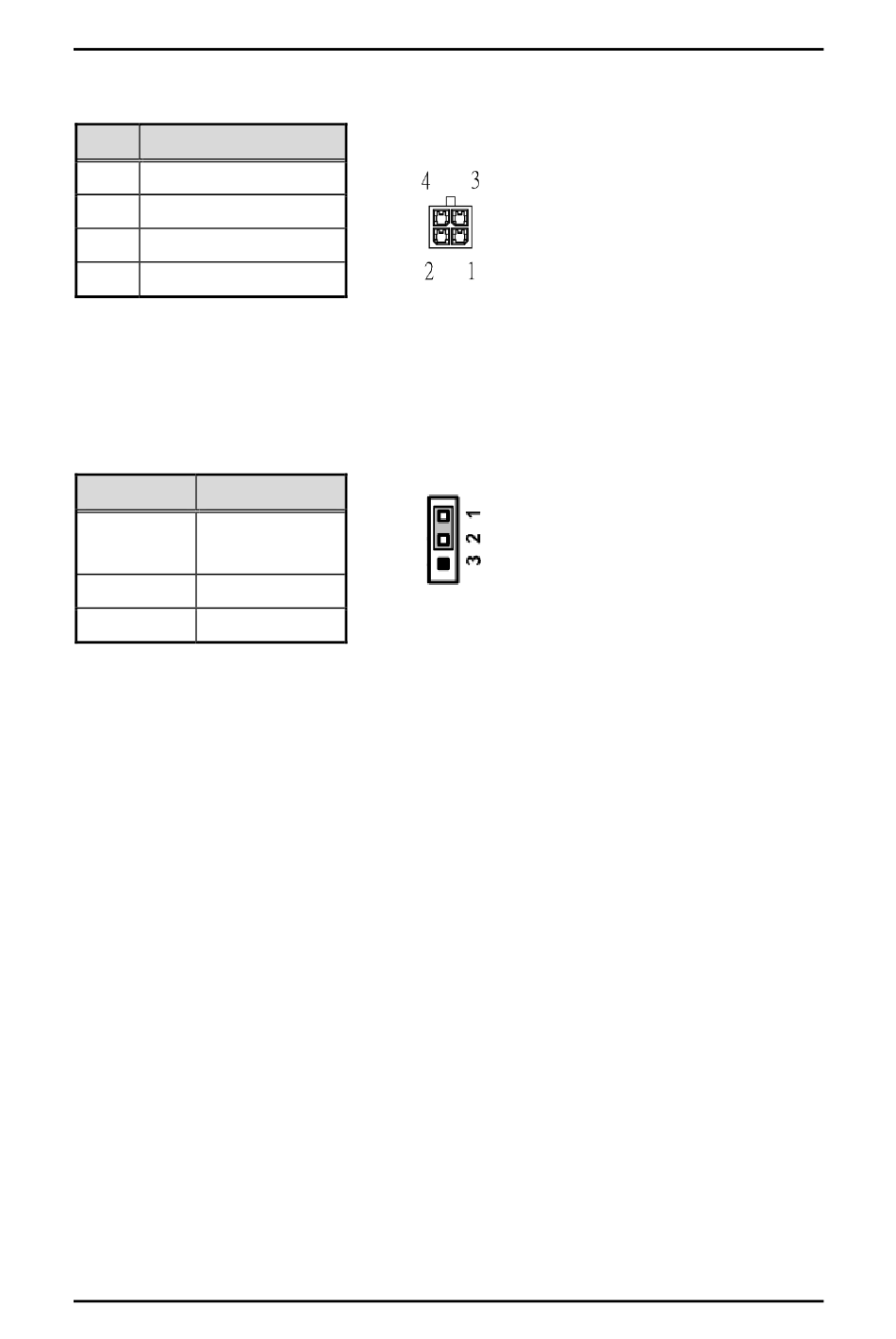

Expansion Power Input Connectors (ATX1 And ATX2)
This ATX2 connector for slot card use. (White color)
Pins
Signals
1
GND
2
GND
3
+12V
4
+12V
ATX1 is reserved for Axiomtek's device use only
※
Temperature Sensor Source Select (JP1)
Use these jumpers (3x1-Pin P=2.54mm) to set temperature sensor source to operate from
external or onboard mode.
Onboard Sensor (Default) 1-2 close
Function
Setting
On Board
1
Thermistor
2
GND
3
Reserved
Pin 3 is reserved for Axiomtek's device use only
※
Introduction
IPC960/IPC962/IPC964-525 Series User's Manual
39
