IPC960/IPC962/IPC964-525 Series User's Manual
1.8.19 Flexible IO- USB3.0x2 & COMx2(RS232/422/485) &
LAN(AX93519)
The system has an optional module to support two USB, two RS232/422/485 & one
LAN. Please refer to Chapter 4 for the details of BIOS setting.

AX93519 2 x RS232/422/485 + 1 G.E. LAN(i211AT) + 2 USB.3.1(1 USB3.1 Gen.2
signal & 1 USB 2.0 signal) (for Q370 PCH)

AX93519 2 x RS232/422/485 + 1 G.E. LAN(i211AT) + 2 USB.3.1(2 USB 2.0 signal)
(for H310 PCH)

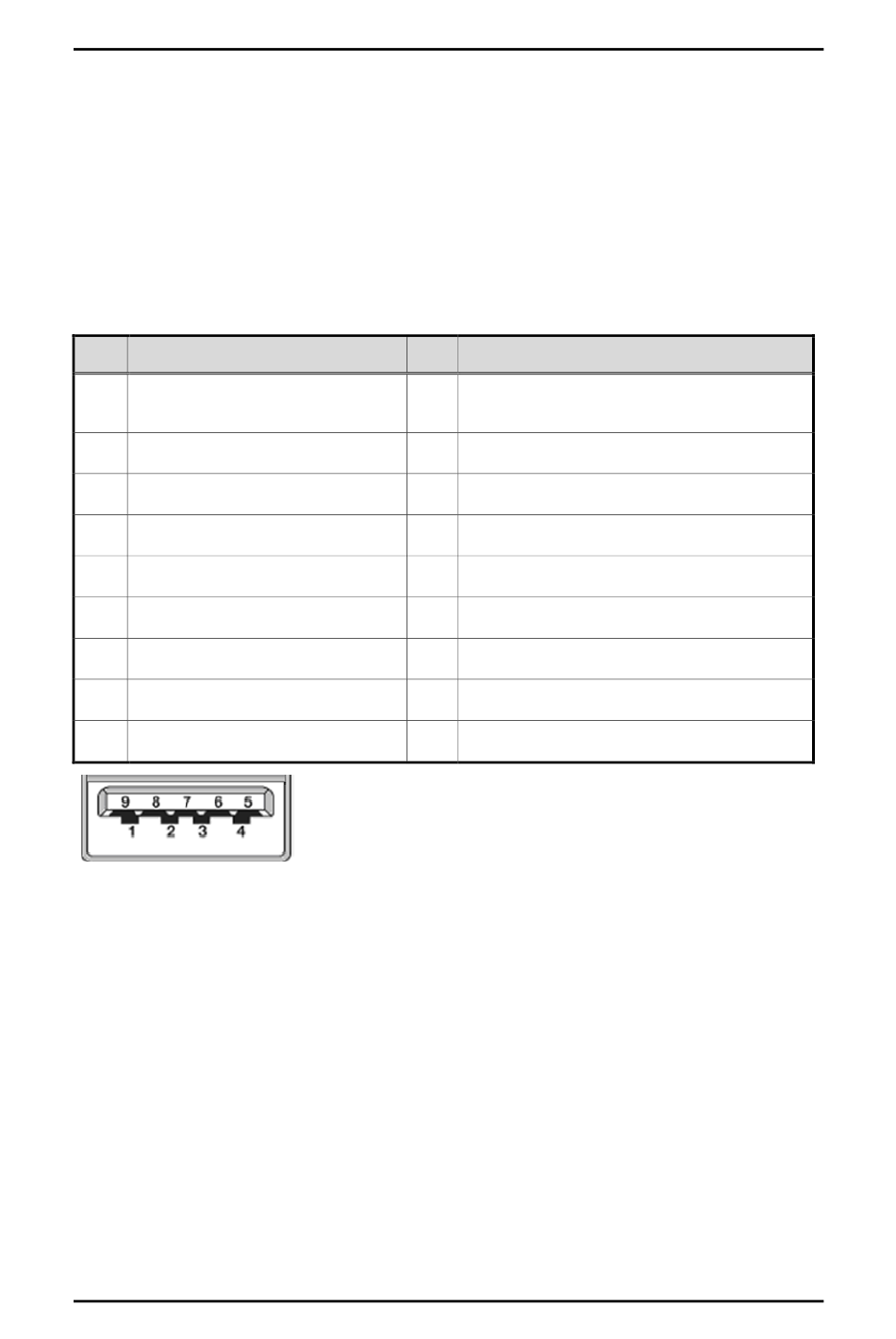

Pins Signal USB Port 0
USB_VCC (+5V level standby
1
power)
2 USB_Data2-
3 USB_Data2+
4 GND
5 SSRX2-
6 SSRX2+
7 GND
8 SSTX2-
9 SSTX2+
32
Pins Signal USB Port 1
USB_VCC (+5V level standby power)
1
2 USB_Data3-
3 USB_Data3+
4 GND
5
SSRX3-
6
SSRX3+
7 GND
8
SSTX3-
9
SSTX3+
