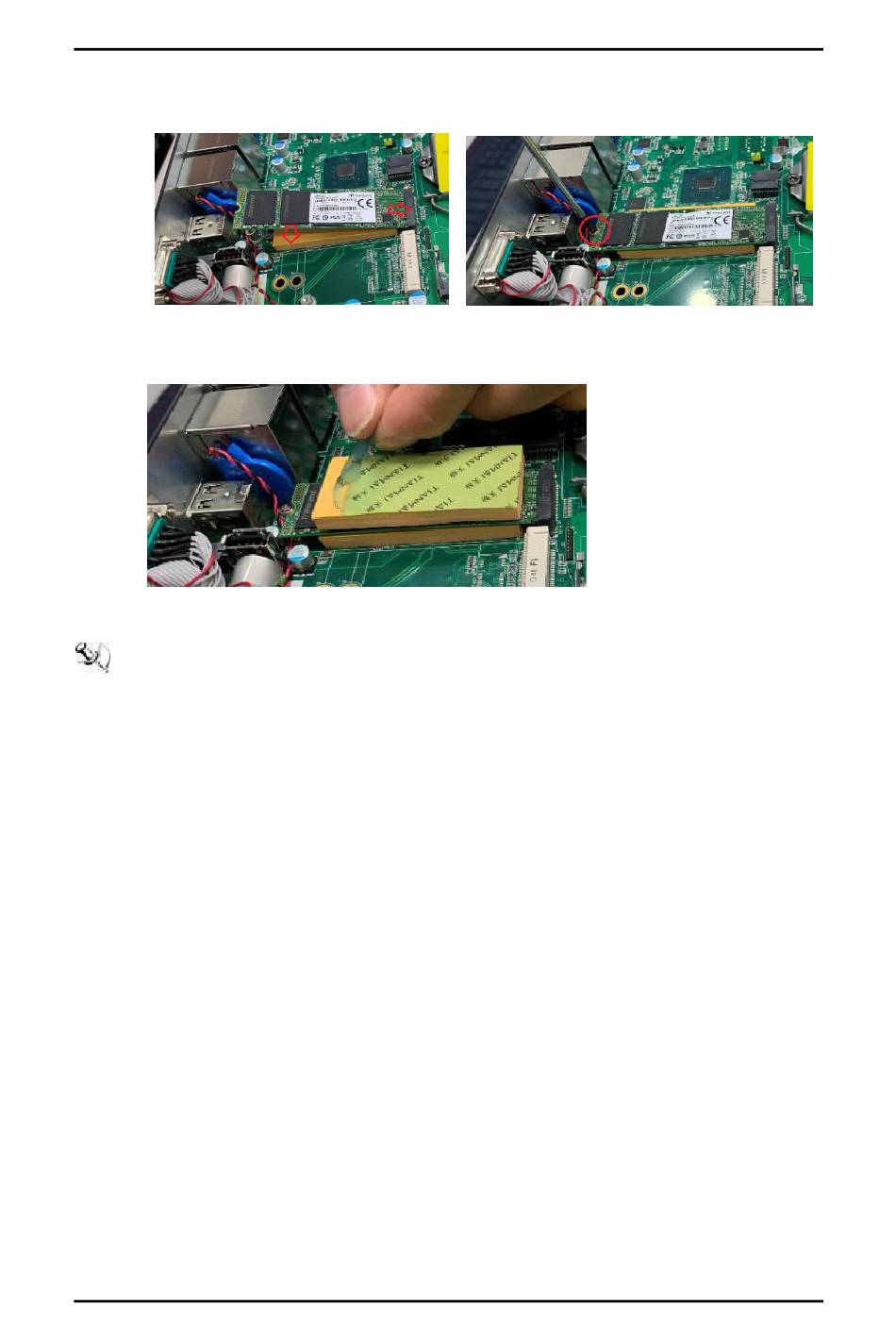

Step 6 Insert the SSD card to slot and push it down firmly. Then screw the card tightly to
the mainboard.
Step 7
Paste the other thermal pad on the module and then remove the protective film, as
illustrated below.
Step 8 Close the cover back to the chassis and fasten all screws. The installation is
complete.
Note: Only Q370 platforms can support an NMVe SSD Key M slot.
Hardware Installation
IPC960/IPC962/IPC964-525 Series User's Manual
73
