IPC960/IPC962/IPC964-525 Series User's Manual

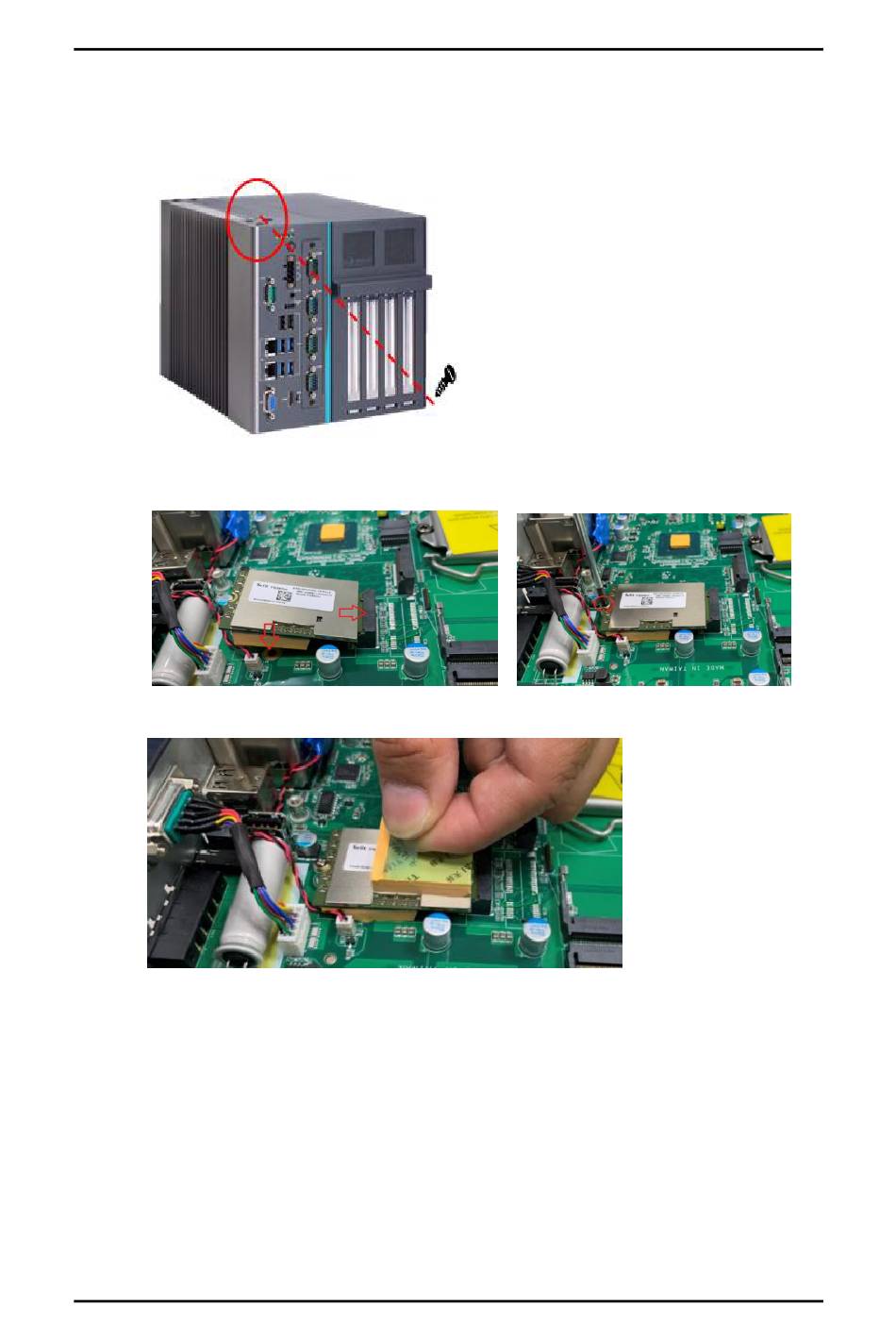

Step 3
Turn off the system.
Step 4
Disconnect the power connector.
Step 5
Loosen screws to remove the heatsink cover from the chassis.
Step 6
Insert the 5G wireless module into the slot and push it down firmly. Then
screw the card tightly to the mainboard.
Step 7
Paste the other thermal pad on top of the module, as illustrated below.
70
Hardware Installation
