4.4.2. Ethernet Cable

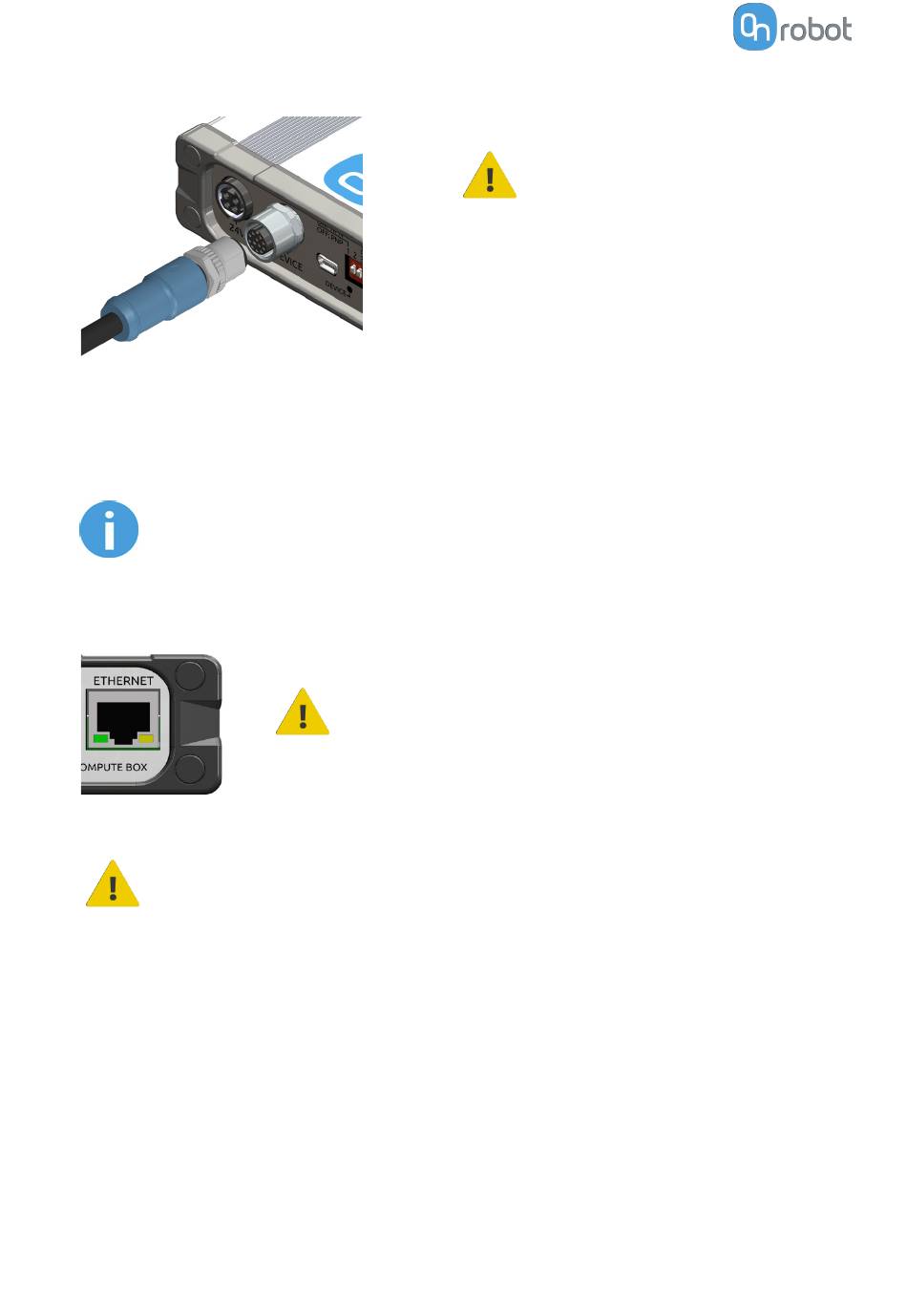

Connect one end of the supplied Ethernet (UTP) cable to the robot controller's Ethernet (LAN)
port.
NOTE:
If the robot controller's Ethernet port is in use, use a standard 4-port Ethernet
switch to be able to use two network devices at the same time.
Connect the other end of the supplied cable to the Compute Box's ETHERNET connector.
WARNING:
Check and make sure that the Compute Box enclosure (metal) and the robot
controller enclosure (metal) are not connected (no galvanic connection
between the two).

4.4.3. Power Supply: Compute Box

Connect the supplied power supply to the Compute Box 24V connector.
CAUTION:
Use only shielded, maximum 3m long Ethernet cables.
CAUTION:
Quick Changer and Dual Quick
Changer can only be used to
power OnRobot tools.
