The SOM consists of 2 PMIC modules. Functionalities of the 2 modules are outlined below.
PMI8996 PMIC is used for:
• Source various regulated power rails
• Support for battery charging on the PMI8996 is not implemented on the platform. The carrier board
uses a 3.8V constant power input to the SOM.
Support for battery charging over external charger is not implemented in the design. Please contact
•
Lantronix for such customization.
PM8996 PMIC is used for:
• Source various regulated power rails
• Source system clock

3.8.4 Power Probe Header J86

The power probe header is used to sense/ monitor the current on the 3.8V power rail going into the SOM. The
table below summarizes the pin outs of header J86.
Open-Q™ 820 Dev Kit User Guide

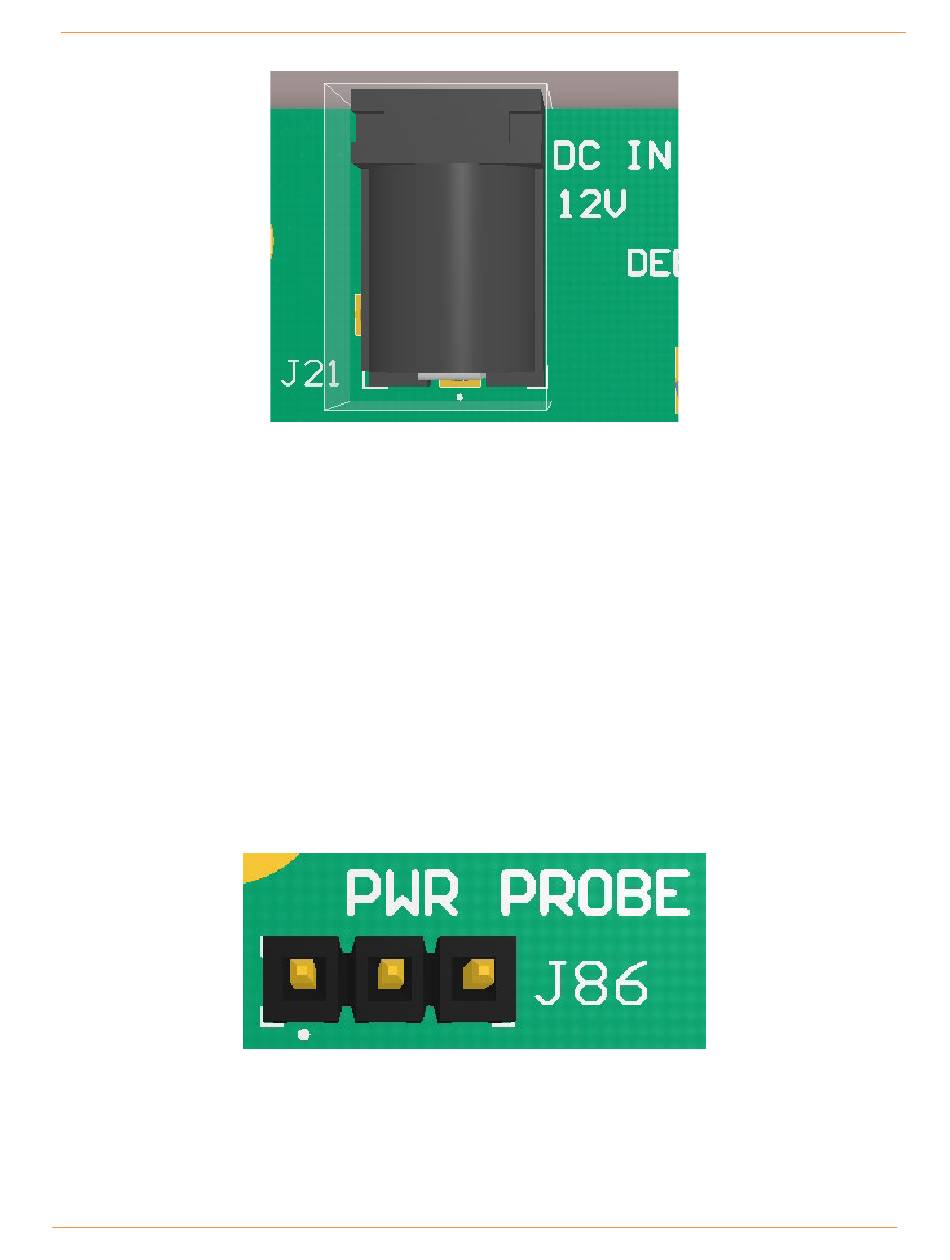

Figure 5 J21 12V DC Power Jack

Figure 6 J86 Power Probe Header
